DF50-40DP-1H(76) Equivalent & Substitute Parts

Part Overview

The DF50-40DP-1H(76) is a rectangular connector header manufactured by Hirose Electric Co Ltd, designed for board-to-cable/wire applications. This connector features a 40-position configuration with 1.00mm pitch and shrouded design with 4-wall protection. The part is currently classified as obsolete, necessitating identification of active equivalent alternatives to maintain design continuity and ensure supply chain availability for new production and field service applications.

Substiute Parts

DF50-40DP-1H(76)

Hirose Electric Co LtdIn Stock: 1158DF50-40DP-1H(76) Datasheet

Current PartRFQ

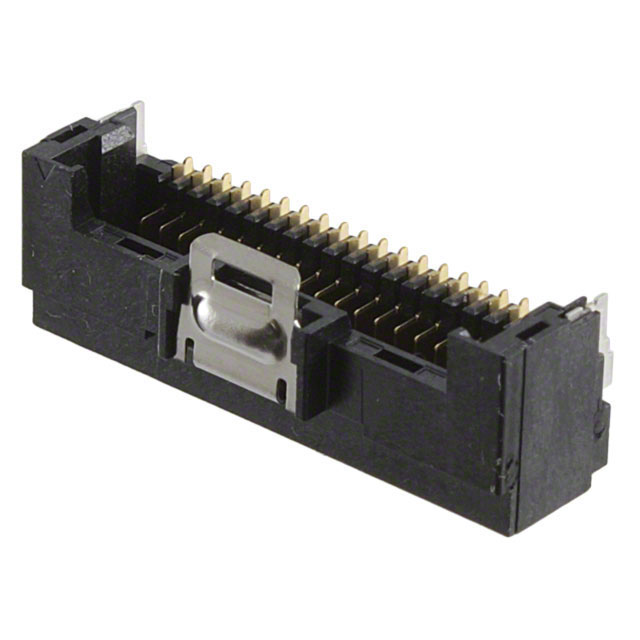

DF50-40DP-1H(51)

Hirose Electric Co LtdIn Stock: 1847DF50-40DP-1H(51) Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The DF50-40DP-1H(51) qualifies as a direct substitute for the DF50-40DP-1H(76) based on the following critical parameters that determine functional compatibility:

Matching Parameters:

• Manufacturer: Hirose Electric Co Ltd (same manufacturer ensures design consistency)
• Series: DF50 (same connector family)
• Number of Positions: 40 (identical contact count)
• Pitch - Mating: 1.00mm (0.039") (identical spacing for mating compatibility)
• Moisture Sensitivity Level: 1 (Unlimited) (identical environmental rating)
• ECCN Classification: EAR99 (identical export control status)
• HTSUS Code: 8536.69.4040 (identical tariff classification)
• RoHS Compliance: Compliant (meets regulatory requirements)

The substitute part DF50-40DP-1H(51) is currently active in production with established inventory availability, providing a viable replacement for the obsolete DF50-40DP-1H(76).

Parameter Comparison

Engineering Selection Recommendations

The DF50-40DP-1H(51) is the qualified substitute for the obsolete DF50-40DP-1H(76). Selection of this substitute is based on the following engineering criteria:

Product Status Alignment: The substitute part maintains active production status with established supply chain availability, eliminating obsolescence risk associated with the original part number.

Regulatory Compliance: Both parts share identical ECCN (EAR99) and HTSUS (8536.69.4040) classifications, ensuring equivalent export control and tariff treatment. The substitute part carries RoHS Compliance certification, meeting current environmental regulations.

Electrical and Mechanical Compatibility: The substitute maintains identical connector series (DF50), position count (40), and mating pitch (1.00mm), ensuring direct compatibility with existing mating connectors and PCB layouts designed for the original part.

Environmental Rating: Both parts carry MSL 1 (Unlimited) classification, indicating identical moisture sensitivity performance and storage requirements.

Packaging Consideration: The substitute is supplied in Tape & Reel (TR) packaging, suitable for automated assembly processes. Original inventory of the DF50-40DP-1H(76) remains available for immediate requirements, with the DF50-40DP-1H(51) providing long-term supply continuity.

Frequently Asked Questions (FAQ)

Q: What is the primary difference between DF50-40DP-1H(76) and DF50-40DP-1H(51)?

A: The primary difference is product status. The DF50-40DP-1H(76) is obsolete, while the DF50-40DP-1H(51) is active in production. Both parts share identical electrical and mechanical specifications for the 40-position, 1.00mm pitch connector configuration. The suffix designation (76 vs. 51) indicates different manufacturing variants within the DF50 series.

Q: Are these parts electrically interchangeable?

A: Yes. Both parts maintain identical contact count (40 positions), mating pitch (1.00mm), and series designation (DF50). They are designed to mate with the same connector interfaces and carry identical electrical ratings (1A current, 100V voltage).

Q: What are the packaging differences?

A: The DF50-40DP-1H(76) packaging specification is not provided in the technical data. The DF50-40DP-1H(51) is supplied in Tape & Reel (TR) packaging, which is standard for automated assembly operations.

Q: Do both parts meet current regulatory requirements?

A: The DF50-40DP-1H(51) carries RoHS Compliance certification and maintains EAR99 export classification. Both parts share identical HTSUS tariff code (8536.69.4040) and MSL 1 (Unlimited) environmental rating.

Q: What is the inventory status for each part?

A: The DF50-40DP-1H(76) has 1074 pieces in stock as new original inventory. The DF50-40DP-1H(51) has 1809 pieces in stock as new original inventory, providing greater supply availability for ongoing production requirements.

Q: Can the DF50-40DP-1H(51) be used in new designs?

A: Yes. The DF50-40DP-1H(51) is active in production and carries current regulatory compliance certifications. It is suitable for new design implementations requiring 40-position, 1.00mm pitch rectangular connectors in the DF50 series.

Q: Are there any mechanical mounting differences?

A: The DF50-40DP-1H(51) is specified as Surface Mount, Right Angle with solder termination and latch lock fastening. The mounting specification for DF50-40DP-1H(76) is not provided in the available technical data.
