DF3Z-8P-2V(51) Equivalent & Substitute Parts

Part Overview

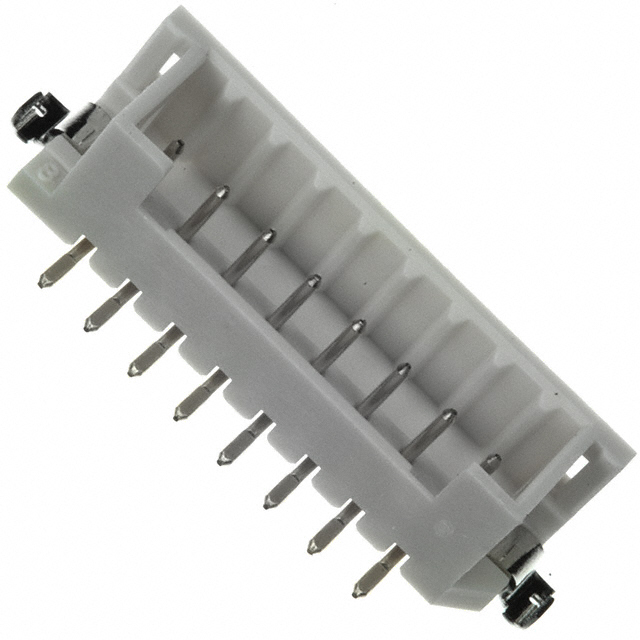

The DF3Z-8P-2V(51) is a surface mount rectangular connector header manufactured by Hirose Electric Co Ltd, designed for board-to-board or cable applications. This 8-position connector operates across a wide temperature range of -55°C to 105°C and features a 2.00mm pitch with gold-plated brass contacts rated for 3A current. The part is currently discontinued at DiGi Electronics, making equivalent substitutes necessary for ongoing production and maintenance applications.

Substiute Parts

DF3Z-8P-2V(51)

Hirose Electric Co LtdIn Stock: 933DF3Z-8P-2V(51) Datasheet

Current PartRFQ

DF3E-8P-2V(51)

Hirose Electric Co LtdIn Stock: 887DF3E-8P-2V(51) Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The DF3E-8P-2V(51) qualifies as a direct substitute for the DF3Z-8P-2V(51) based on the following critical parameters that determine functional compatibility:

• Connector Type & Contact Configuration: Both are header connectors with male pins, 8 positions, and 2.00mm pitch
• Mechanical Compatibility: Identical shrouding (4 wall), surface mount mounting type, and push-pull fastening
• Electrical Specifications: Both feature gold-plated brass contacts, polyamide/nylon insulation, and operate across -55°C to 105°C
• Compliance & Safety: Both are RoHS compliant, UL94 V-0 rated, and MSL 1
• Series Alignment: Both belong to the Hirose DF3 series, ensuring mechanical and electrical interchangeability

The primary distinction is product status: the DF3Z variant is discontinued, while the DF3E variant remains active in production.

Parameter Comparison

Engineering Selection Recommendations

The DF3E-8P-2V(51) is the appropriate substitute for the discontinued DF3Z-8P-2V(51). Both connectors maintain identical electrical and mechanical specifications within the Hirose DF3 series, ensuring direct interchangeability in board-to-board and cable applications.

Selection should be based on the following factors:

• Product Availability: The DF3E variant is currently active in production with 875 pieces in stock, whereas the DF3Z is discontinued
• Compliance Alignment: Both parts meet RoHS compliance and UL94 V-0 flammability requirements
• Packaging Consideration: The DF3E-8P-2V(51) is supplied in Tape & Reel (TR) packaging, which may differ from the original part's packaging specification
• Electrical Performance: Current rating specifications differ between the two variants; the DF3Z is rated at 3A, while the DF3E rating varies by wire gauge

Frequently Asked Questions (FAQ)

Q: Are the DF3Z-8P-2V(51) and DF3E-8P-2V(51) mechanically interchangeable?

A: Yes. Both connectors share identical mechanical specifications including 8-position configuration, 2.00mm pitch, 4-wall shrouding, surface mount mounting, and push-pull fastening. They are directly interchangeable in board-to-board and cable applications.

Q: What is the primary reason for substitution?

A: The DF3Z-8P-2V(51) is discontinued at DiGi Electronics. The DF3E-8P-2V(51) provides functional equivalence while remaining in active production.

Q: Do both parts meet the same compliance standards?

A: Yes. Both the DF3Z and DF3E variants are RoHS compliant, UL94 V-0 rated, and carry MSL 1 (Unlimited) moisture sensitivity classification.

Q: What is the difference in packaging between these two parts?

A: The DF3E-8P-2V(51) is supplied in Tape & Reel (TR) packaging. The original DF3Z packaging specification is not provided in the technical data.

Q: Are there differences in current rating between the two parts?

A: Yes. The DF3Z-8P-2V(51) is rated for 3A current, while the DF3E-8P-2V(51) current rating varies by wire gauge. Verify wire gauge specifications for your application to ensure adequate current capacity.

Q: Do both parts operate across the same temperature range?

A: Yes. Both connectors operate across -55°C to 105°C, ensuring thermal compatibility in equivalent applications.
