DF3F-8S-2R26(05) Equivalent & Substitute Parts

Part Overview

The DF3F-8S-2R26(05) is an 8-position rectangular connector manufactured by Hirose Electric Co Ltd, part of the DF3 series. This component is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing system support, maintenance, and new design implementations where legacy compatibility is required.

Substiute Parts

DF3F-8S-2R26(05)

Hirose Electric Co LtdIn Stock: 945DF3F-8S-2R26(05) Datasheet

Current PartRFQ

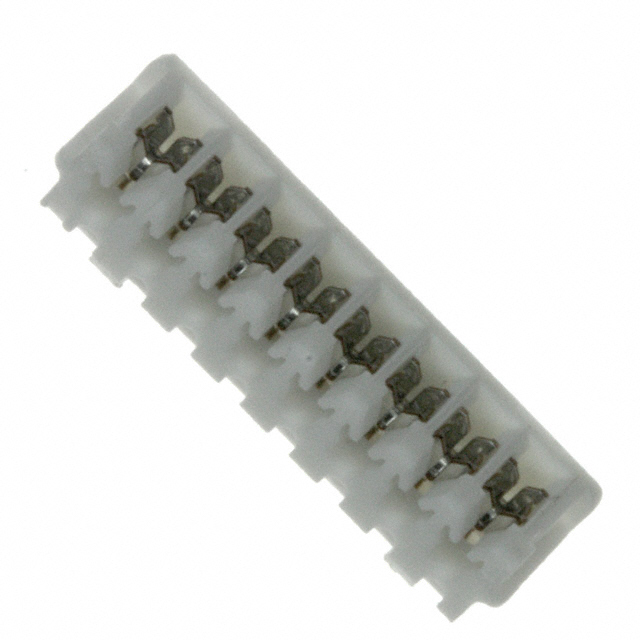

173977-8

TE Connectivity AMP ConnectorsIn Stock: 1342173977-8 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

The substitute part 173977-8 (TE Connectivity AMP Connectors) qualifies as a functional equivalent based on the following critical parameters:

• Number of Positions: Both parts feature 8-position configurations, enabling direct pin-count compatibility
• Connector Category: Both are rectangular connectors suitable for similar application environments
• Wire Gauge Compatibility: The substitute supports 26-28 AWG wire gauge, aligning with standard discrete wire termination requirements
• Mounting Configuration: The substitute provides free-hanging in-line mounting, a standard configuration for replacement applications
• Contact Finish: Tin plating on the substitute ensures reliable electrical performance and corrosion resistance

Substitution is based strictly on these provided electrical and mechanical parameters. No additional technical criteria have been applied.

Parameter Comparison

Engineering Selection Recommendations

The DF3F-8S-2R26(05) is obsolete and no longer in active production. The substitute part 173977-8 is an active product with current manufacturing support and availability.

Selection of 173977-8 is supported by:

• Active Product Status: Ensures ongoing availability, technical support, and supply chain continuity
• RoHS3 Compliance: Meets current environmental and regulatory requirements for new designs and replacements
• MSL Rating: The substitute carries an MSL rating of 1 (Unlimited), indicating no moisture sensitivity constraints during storage and handling
• Inventory Availability: 1309 units in stock provide immediate procurement capability

Frequently Asked Questions (FAQ)

Q: What makes 173977-8 a suitable substitute for DF3F-8S-2R26(05)?

A: Both connectors share the same 8-position configuration, rectangular connector category, and support discrete wire termination. The substitute is an active product with documented specifications and current manufacturing support.

Q: Are there mechanical compatibility concerns when substituting these parts?

A: Mechanical compatibility depends on the specific mounting and mating interface requirements of the original application. The substitute provides free-hanging in-line mounting. Physical verification against the original installation environment is necessary.

Q: What is the significance of the MSL rating difference?

A: The original part lists MSL as Not Applicable, while the substitute carries MSL 1 (Unlimited). This indicates the substitute has no moisture sensitivity restrictions and can be stored and handled without special environmental controls.

Q: Does the substitute meet current regulatory requirements?

A: Yes. The substitute is RoHS3 compliant and REACH unaffected, meeting current environmental and regulatory standards for electronic components.

Q: What is the pitch specification of the substitute?

A: The substitute features a pitch of 0.079" (2.00mm), which defines the center-to-center spacing between adjacent contact positions.
