DF3DZ-9P-2H(51) Equivalent & Substitute Parts

Part Overview

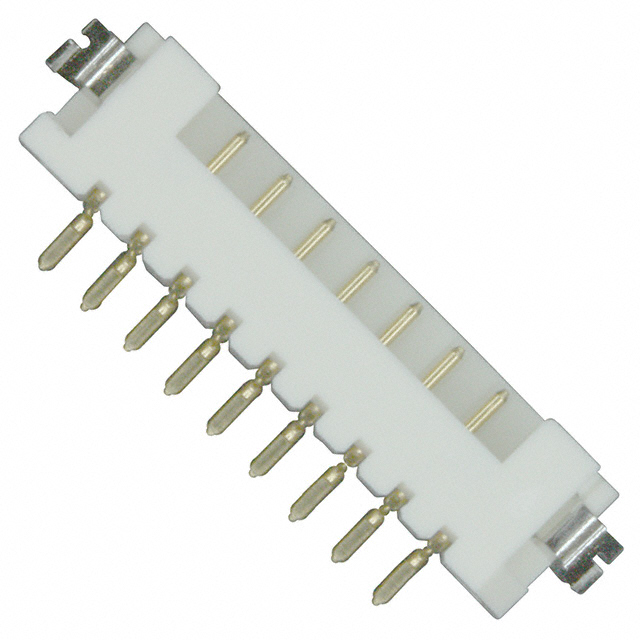

The DF3DZ-9P-2H(51) is a surface mount, right-angle rectangular connector header manufactured by Hirose Electric Co Ltd. This 9-position connector operates within the DF3 series and features a 2.00mm pitch with shrouded 4-wall design and push-pull fastening. The part is currently classified as obsolete, making identification of equivalent and substitute components essential for ongoing production support and design continuity.

Substiute Parts

DF3DZ-9P-2H(51)

Hirose Electric Co LtdIn Stock: 711DF3DZ-9P-2H(51) Datasheet

Current PartRFQ

DF3EA-9P-2H(51)

Hirose Electric Co LtdIn Stock: 1588DF3EA-9P-2H(51) Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the DF3DZ-9P-2H(51) is determined by strict alignment of the following critical parameters:

• Series designation (DF3)
• Connector type (Header)
• Number of positions (9)
• Pitch specification (0.079" / 2.00mm)
• Mounting configuration (Surface Mount, Right Angle)
• Shrouding design (Shrouded - 4 Wall)
• Contact type (Male Pin)
• Termination method (Solder)
• Fastening mechanism (Push-Pull)
• Operating temperature range (-55°C ~ 105°C)
• Material flammability rating (UL94 V-0)
• Insulation material (Polyamide/Nylon)
• Contact material (Brass)
• Contact finish (Gold)

The DF3EA-9P-2H(51) meets all these criteria and qualifies as a direct substitute. The primary distinction is product status: DF3DZ-9P-2H(51) is obsolete, while DF3EA-9P-2H(51) is active and available in higher inventory quantities.

Parameter Comparison

Engineering Selection Recommendations

The DF3EA-9P-2H(51) is the direct substitute for the obsolete DF3DZ-9P-2H(51). Both parts share identical electrical and mechanical specifications across all critical parameters. The DF3EA-9P-2H(51) offers the following advantages:

• Active product status with ongoing manufacturer support
• Higher inventory availability (1533 units vs. 669 units)
• RoHS compliance certification
• Standardized Tape & Reel packaging for automated assembly processes

Selection of DF3EA-9P-2H(51) eliminates obsolescence risk and ensures long-term supply chain continuity for applications requiring 9-position, 2.00mm pitch surface mount rectangular connectors with push-pull fastening.
