DF3DZ-4P-2V(73) Equivalent & Substitute Parts

Part Overview

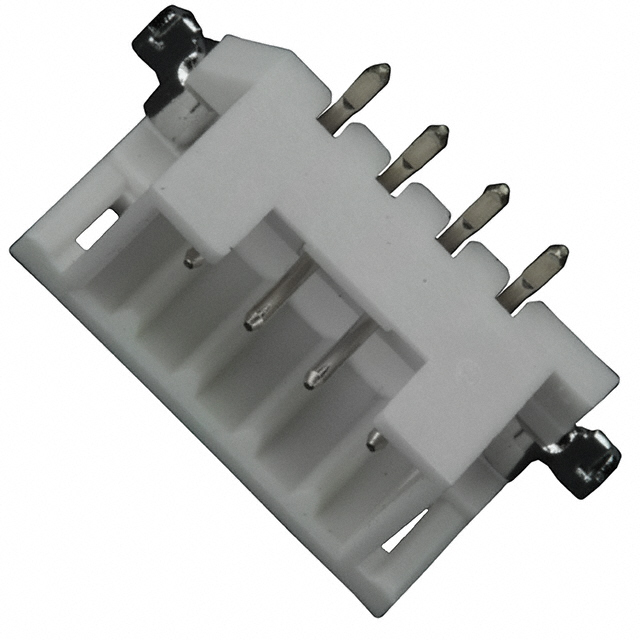

The DF3DZ-4P-2V(73) is a surface mount rectangular connector header manufactured by Hirose Electric Co Ltd, designed for board-to-board or cable applications. This 4-position connector operates at 3A current rating with a 2.00mm pitch and features shrouded 4-wall construction for secure mating. The part is discontinued at DiGi Electronics, making identification of compatible alternatives essential for ongoing production and maintenance applications.

Substiute Parts

DF3DZ-4P-2V(73)

Hirose Electric Co LtdIn Stock: 1062DF3DZ-4P-2V(73) Datasheet

Current PartRFQ

DF3EA-4P-2V(51)

Hirose Electric Co LtdIn Stock: 1950DF3EA-4P-2V(51) Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The DF3EA-4P-2V(51) qualifies as a direct substitute based on the following critical parameters that determine functional compatibility:

• Connector Series: Both parts belong to the DF3 series from Hirose Electric Co Ltd
• Pitch - Mating: Identical 0.079" (2.00mm) spacing ensures mechanical compatibility with mating connectors
• Number of Positions: Both feature 4-position configuration
• Connector Type: Both are header-type connectors with male pin contact type
• Mounting Type: Both are surface mount components
• Shrouding: Both feature shrouded 4-wall construction
• Insulation Height: Identical 0.232" (5.90mm) dimension
• Insulation Material: Both use Polyamide (PA), Nylon
• Material Flammability Rating: Both meet UL94 V-0 standard
• Moisture Sensitivity Level: Both rated MSL 1 (Unlimited)

The DF3EA-4P-2V(51) is currently active in production with expanded inventory availability, making it the recommended alternative for the discontinued DF3DZ-4P-2V(73).

Parameter Comparison

Engineering Selection Recommendations

The DF3EA-4P-2V(51) is the appropriate substitute for the discontinued DF3DZ-4P-2V(73) based on the following factors:

Product Status: The DF3EA-4P-2V(51) maintains active production status with significantly higher inventory availability (1928 pcs vs. 952 pcs), ensuring supply chain continuity.

Compliance & Certifications: Both parts meet identical regulatory requirements including UL94 V-0 flammability rating, RoHS compliance, and EAR99 export classification. The substitute carries ROHS3 compliance, representing current regulatory alignment.

Mechanical & Electrical Compatibility: All critical parameters determining connector compatibility are identical, including pitch, position count, shrouding configuration, and insulation dimensions. The substitute operates across an expanded temperature range (-55°C ~ 105°C vs. -30°C ~ 85°C), providing enhanced thermal performance for demanding applications.

Packaging Consideration: The DF3EA-4P-2V(51) is supplied in Tape & Reel (TR) format, suitable for automated assembly processes.

Frequently Asked Questions (FAQ)

Q: Are the DF3DZ-4P-2V(73) and DF3EA-4P-2V(51) mechanically interchangeable?

A: Yes. Both connectors share identical pitch (2.00mm), position count (4), shrouding configuration (4-wall), and insulation height (5.90mm). They are designed for the same mating interfaces and mounting footprints.

Q: What are the key differences between these two parts?

A: The primary differences are product status and operating temperature range. The DF3EA-4P-2V(51) is currently in active production with expanded temperature capability (-55°C ~ 105°C vs. -30°C ~ 85°C). The substitute also includes contact finish specifications (Gold plating, 8.00µin thickness) and solder retention features not detailed in the original part specification.

Q: Does the packaging format affect compatibility?

A: No. The DF3EA-4P-2V(51) is supplied in Tape & Reel (TR) format for automated assembly, while the original part packaging is unspecified. The connector itself is functionally identical regardless of packaging format.

Q: Are both parts RoHS compliant?

A: Yes. The DF3DZ-4P-2V(73) is RoHS Compliant, and the DF3EA-4P-2V(51) is ROHS3 Compliant, meeting current regulatory standards.

Q: Can the DF3EA-4P-2V(51) be used in applications requiring the original -30°C ~ 85°C temperature range?

A: Yes. The substitute's expanded operating range (-55°C ~ 105°C) encompasses the original specification, making it suitable for all applications within the original temperature limits.
