DF3DZ-3P-2V(21) Equivalent & Substitute Parts

Part Overview

The DF3DZ-3P-2V(21) is a surface mount rectangular connector header manufactured by Hirose Electric Co Ltd, designed for board-to-board or cable applications. This 3-position connector features a 2mm pitch, shrouded 4-wall design, and solder termination with push-pull fastening. The part is currently discontinued at DiGi Electronics, making identification of suitable substitutes essential for ongoing production and maintenance applications.

Substiute Parts

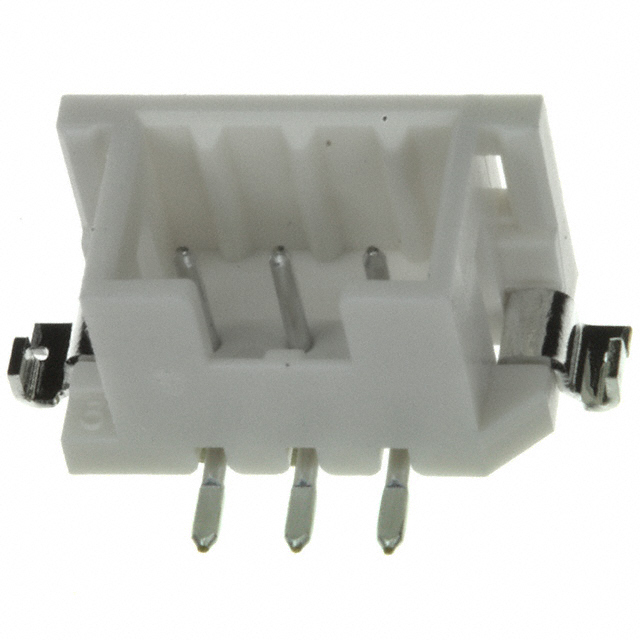

DF3DZ-3P-2V(21)

Hirose Electric Co LtdIn Stock: 842DF3DZ-3P-2V(21) Datasheet

Current PartRFQ

DF3EA-3P-2V(21)

Hirose Electric Co LtdIn Stock: 7006DF3EA-3P-2V(21) Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The DF3EA-3P-2V(21) qualifies as a direct substitute based on the following critical parameters that determine functional and mechanical compatibility:

• Connector Series: Both parts belong to the DF3 series from Hirose Electric Co Ltd
• Number of Positions: Identical at 3 positions
• Pitch - Mating: Both use 0.079" (2.00mm) pitch
• Mounting Type: Both are surface mount
• Shrouding Configuration: Both feature shrouded 4-wall design
• Contact Type: Both use male pin contacts
• Termination Method: Both use solder termination
• Fastening Type: Both employ push-pull fastening
• Insulation Height: Both measure 0.232" (5.90mm)
• Contact Material and Finish: Both use brass with tin finish
• Insulation Material: Both use polyamide (PA) nylon
• Flammability Rating: Both meet UL94 V-0
• RoHS Compliance: Both are RoHS compliant

Parameter Comparison

Engineering Selection Recommendations

The DF3EA-3P-2V(21) is the appropriate substitute for the discontinued DF3DZ-3P-2V(21). Both parts share identical mechanical and electrical specifications across all critical connector parameters, ensuring direct compatibility in board-to-board and cable applications.

The DF3EA-3P-2V(21) offers the following advantages:

• Active Product Status: Currently in production and widely available, with 6984 pieces in stock compared to the discontinued status of the original part
• Enhanced Compliance: ROHS3 compliant with REACH Unaffected status, providing superior regulatory alignment
• Extended Operating Range: Operating temperature range of -55°C ~ 105°C exceeds the original -30°C ~ 85°C specification, offering broader environmental compatibility
• Specified Voltage Rating: 250VAC rating provides explicit electrical performance documentation
• Standard Packaging: Available in Tape & Reel (TR) format for automated assembly processes

Both parts maintain identical UL94 V-0 flammability ratings, MSL 1 moisture sensitivity, and EAR99 export classification.

Frequently Asked Questions (FAQ)

Q: Are DF3DZ-3P-2V(21) and DF3EA-3P-2V(21) mechanically interchangeable?

A: Yes. Both connectors share identical pitch (2.00mm), position count (3), shrouding configuration (4-wall), insulation height (5.90mm), and mounting type (surface mount). They are mechanically interchangeable in board-to-board and cable applications.

Q: What is the difference between the DF3DZ and DF3EA variants?

A: The primary differences are product status and operating specifications. The DF3EA is an active product with an extended operating temperature range (-55°C ~ 105°C versus -30°C ~ 85°C) and includes specified voltage rating (250VAC). Both variants belong to the DF3 series and maintain identical connector geometry and contact specifications.

Q: Can I use DF3EA-3P-2V(21) in applications originally designed for DF3DZ-3P-2V(21)?

A: Yes. The DF3EA-3P-2V(21) meets or exceeds all specifications of the discontinued DF3DZ-3P-2V(21). The extended operating temperature range and specified voltage rating make it suitable for the same applications with enhanced performance margins.

Q: What packaging options are available for the substitute part?

A: The DF3EA-3P-2V(21) is supplied in Tape & Reel (TR) format, which is standard for automated surface mount assembly processes.

Q: Are both parts RoHS compliant?

A: Yes. The DF3DZ-3P-2V(21) is RoHS Compliant, and the DF3EA-3P-2V(21) is ROHS3 Compliant. Both meet RoHS requirements with the DF3EA offering enhanced regulatory status.

Q: What is the current rating for the DF3EA-3P-2V(21)?

A: The DF3EA-3P-2V(21) current rating varies by wire gauge. The original DF3DZ-3P-2V(21) specifies 3A. Consult the detailed product datasheet for specific current ratings based on your wire gauge selection.
