DF3DZ-12P-2H(21) Equivalent & Substitute Parts

Part Overview

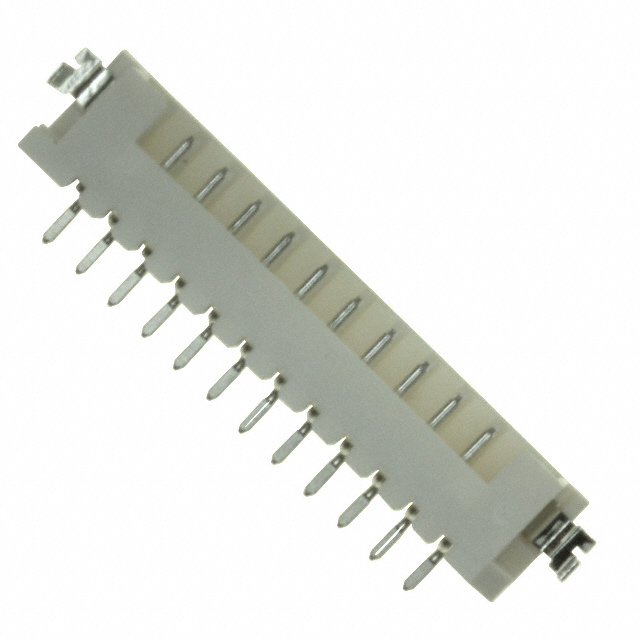

The DF3DZ-12P-2H(21) is a rectangular connector header manufactured by Hirose Electric Co Ltd, designed for surface mount, right-angle board-to-board or cable applications. This 12-position connector operates at 3A current rating with a 2.00mm pitch and features shrouded 4-wall construction with push-pull fastening. The part is currently listed as obsolete, necessitating identification of active equivalent alternatives to maintain design continuity and ensure supply chain availability.

Substiute Parts

DF3DZ-12P-2H(21)

Hirose Electric Co LtdIn Stock: 1098DF3DZ-12P-2H(21) Datasheet

Current PartRFQ

DF3EA-12P-2H(21)

Hirose Electric Co LtdIn Stock: 2904DF3EA-12P-2H(21) Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The DF3EA-12P-2H(21) qualifies as a direct substitute for the DF3DZ-12P-2H(21) based on the following critical parameters:

• Connector Series: Both parts belong to the DF3 series from Hirose Electric Co Ltd
• Contact Configuration: Identical 12-position, male pin header design
• Pitch Specification: Both maintain 0.079" (2.00mm) mating pitch
• Mounting Method: Both are surface mount, right-angle connectors
• Shrouding Design: Both feature shrouded 4-wall construction
• Fastening Mechanism: Both utilize push-pull fastening
• Termination Type: Both use solder termination
• Operating Temperature Range: Both rated -55°C ~ 105°C
• Insulation Material: Both use Polyamide (PA), Nylon
• Insulation Height: Both measure 0.220" (5.60mm)
• Contact Material: Both use brass with tin finish
• Flammability Rating: Both meet UL94 V-0

The primary distinction is product status: DF3DZ-12P-2H(21) is obsolete while DF3EA-12P-2H(21) is active, with improved availability (2807 pcs in stock versus 994 pcs).

Parameter Comparison

Engineering Selection Recommendations

The DF3EA-12P-2H(21) is the appropriate selection for new designs and component replenishment. This part maintains full electrical and mechanical compatibility with the obsolete DF3DZ-12P-2H(21) across all critical parameters. The DF3EA variant offers the following advantages:

• Active Product Status: Ensures long-term availability and manufacturer support
• RoHS Compliance: Meets current environmental and regulatory requirements
• Improved Inventory: 2807 units in stock provide superior supply chain security
• Standard Packaging: Tape & Reel packaging supports automated assembly processes

For existing designs currently using DF3DZ-12P-2H(21), direct substitution with DF3EA-12P-2H(21) requires no circuit modifications or PCB layout changes.

Frequently Asked Questions (FAQ)

Q: Can DF3EA-12P-2H(21) be used as a direct replacement for DF3DZ-12P-2H(21)?

A: Yes. Both parts share identical electrical and mechanical specifications including pitch, position count, contact configuration, operating temperature range, and current rating. No design modifications are required.

Q: What is the primary reason for substitution?

A: The DF3DZ-12P-2H(21) is obsolete. The DF3EA-12P-2H(21) is an active equivalent that ensures continued availability and supply chain reliability.

Q: Are there packaging differences between these parts?

A: The DF3DZ-12P-2H(21) packaging is unspecified in available data. The DF3EA-12P-2H(21) is supplied in Tape & Reel (TR) format, which is standard for automated PCB assembly.

Q: Does DF3EA-12P-2H(21) meet current compliance standards?

A: Yes. The DF3EA-12P-2H(21) is RoHS Compliant, meeting current environmental regulations. Both parts maintain UL94 V-0 flammability rating.

Q: Are the contact finishes identical?

A: Yes. Both parts feature tin-plated brass contacts on both mating and post surfaces, ensuring equivalent electrical performance and solderability.

Q: What is the current rating for these connectors?

A: The DF3DZ-12P-2H(21) is rated at 3A. The DF3EA-12P-2H(21) current rating varies by wire gauge, but maintains compatibility with the same connector interface and mating specifications.
