DF3DZ-10P-2V(73) Equivalent & Substitute Parts

Part Overview

The DF3DZ-10P-2V(73) is a surface mount rectangular connector header manufactured by Hirose Electric Co Ltd, featuring 10 positions at 2.00mm pitch with shrouded 4-wall design and push-pull fastening. This connector is classified as discontinued at DiGi Electronics, necessitating identification of active equivalent parts to maintain design continuity and ensure supply chain availability for new production runs and field replacements.

Substiute Parts

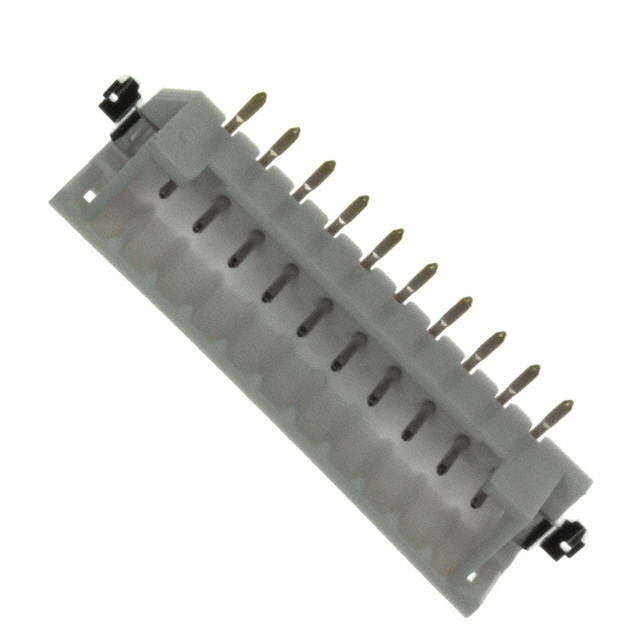

DF3DZ-10P-2V(73)

Hirose Electric Co LtdIn Stock: 784DF3DZ-10P-2V(73) Datasheet

Current PartRFQ

DF3EA-10P-2V(51)

Hirose Electric Co LtdIn Stock: 2015DF3EA-10P-2V(51) Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The DF3EA-10P-2V(51) qualifies as a direct substitute for the DF3DZ-10P-2V(73) based on the following critical parameters that determine functional and mechanical compatibility:

Matching Parameters:

• Manufacturer: Hirose Electric Co Ltd (same manufacturer ensures design compatibility)
• Series: DF3 (same connector family)
• Connector Type: Header with Male Pin contacts
• Number of Positions: 10 at 0.079" (2.00mm) pitch
• Number of Rows: 1
• Mounting Type: Surface Mount
• Shrouding: Shrouded - 4 Wall
• Fastening Type: Push-Pull
• Insulation Height: 0.232" (5.90mm)
• Insulation Material: Polyamide (PA), Nylon
• Insulation Color: Beige
• Termination: Solder
• Material Flammability Rating: UL94 V-0
• RoHS Status: RoHS Compliant
• Moisture Sensitivity Level: 1 (Unlimited)

The substitute part maintains identical mechanical and electrical interface specifications, ensuring direct pin-for-pin and footprint compatibility with existing PCB designs.

Parameter Comparison

Engineering Selection Recommendations

The DF3EA-10P-2V(51) is the appropriate substitute for the discontinued DF3DZ-10P-2V(73). Selection is based on the following engineering criteria:

Product Status: The DF3EA-10P-2V(51) maintains active status with Hirose Electric Co Ltd and demonstrates superior supply availability (1988 units in stock versus 678 units for the discontinued part).

Compliance & Certifications: Both parts maintain identical RoHS compliance and UL94 V-0 flammability ratings, ensuring regulatory continuity for applications requiring these certifications.

Mechanical Compatibility: The substitute part provides identical mechanical interface specifications, including footprint, pitch, shrouding configuration, and mounting type, enabling direct PCB design reuse without layout modifications.

Enhanced Operating Range: The DF3EA-10P-2V(51) extends the operating temperature range to -55°C ~ 105°C compared to the original -30°C ~ 85°C specification, providing broader environmental compatibility for extended temperature applications.

Contact Finish Enhancement: The substitute incorporates gold-plated contacts (8.00µin thickness) with brass material composition and solder retention features, improving contact reliability and durability compared to the original specification.

Frequently Asked Questions (FAQ)

Q: Can the DF3EA-10P-2V(51) be used as a direct replacement for the DF3DZ-10P-2V(73) without PCB redesign?

A: Yes. Both connectors share identical mechanical and electrical interface specifications, including 10-position 2.00mm pitch configuration, surface mount footprint, shrouded 4-wall design, and push-pull fastening. No PCB layout modifications are required.

Q: What are the key differences between these two parts?

A: The primary differences are product status (active versus discontinued), operating temperature range (-55°C ~ 105°C versus -30°C ~ 85°C), contact finish (gold-plated brass with solder retention versus unspecified), voltage rating (250VAC specified versus not specified), and packaging format (Tape & Reel versus unspecified).

Q: Are there any compatibility concerns with the extended operating temperature range?

A: The extended operating temperature range of the DF3EA-10P-2V(51) (-55°C ~ 105°C) is a superset of the original specification (-30°C ~ 85°C). Applications operating within the original temperature range experience no compatibility issues.

Q: Does the gold plating on the DF3EA-10P-2V(51) affect mating compatibility?

A: No. Gold plating improves contact reliability and corrosion resistance without affecting mechanical mating characteristics. The contact geometry and pitch remain identical to the original part.

Q: What is the significance of the Tape & Reel packaging for the substitute part?

A: Tape & Reel packaging is standard for high-volume surface mount assembly operations. This packaging format does not affect the connector's electrical or mechanical performance and is compatible with automated pick-and-place equipment.

Q: Are both parts RoHS compliant?

A: Yes. Both the DF3DZ-10P-2V(73) and DF3EA-10P-2V(51) maintain RoHS compliance and UL94 V-0 flammability ratings, ensuring regulatory continuity for applications subject to these requirements.
