DF3-7P-2DS Equivalent & Substitute Parts
Part Overview

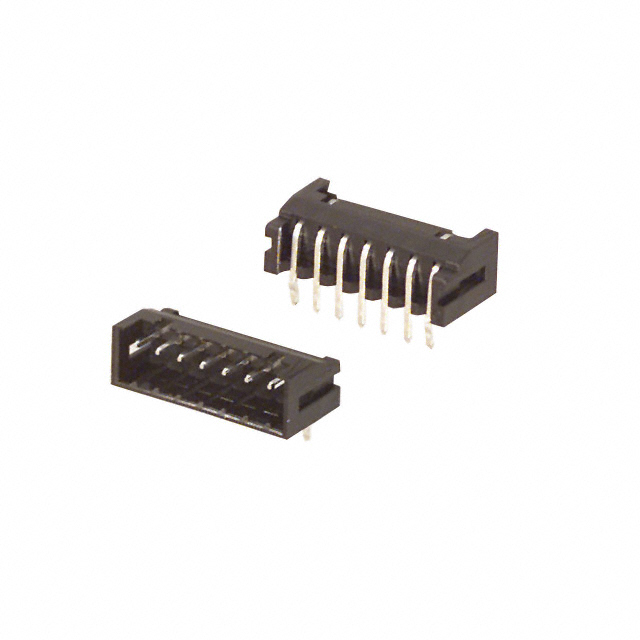

The DF3-7P-2DS is a rectangular connector header manufactured by Hirose Electric Co Ltd, designed for through-hole, right-angle board-to-board or cable applications. This 7-position connector operates at 2.00mm pitch with male pin contacts and push-pull fastening. The part is currently listed as obsolete, making identification of compatible substitutes essential for ongoing design support and procurement.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Manufacturer Part Number | DF3-7P-2DS |
| Manufacturer | Hirose Electric Co Ltd |
| Series | DF3 |
| Connector Type | Header |
| Number of Positions | 7 |
| Pitch - Mating | 0.079" (2.00mm) |
| Contact Type | Male Pin |
| Mounting Type | Through Hole, Right Angle |
| Shrouding | Shrouded - 4 Wall |
| Current Rating | 3A |
| Operating Temperature | -55°C ~ 105°C |
| Product Status | Obsolete |
Substitute Part Grouping Explanation
Substitution eligibility for the DF3-7P-2DS is determined by strict equivalence across the following critical parameters:
- Connector type (Header)
- Number of positions (7)
- Pitch specification (0.079" / 2.00mm)
- Contact type (Male Pin)
- Mounting configuration (Through Hole, Right Angle)
- Shrouding design (Shrouded - 4 Wall)
- Current rating (3A)
- Operating temperature range (-55°C ~ 105°C)
- Fastening type (Push-Pull)
- Contact material and finish (Brass with Tin plating)
- Insulation material (Polyamide/Nylon)
The DF3A-7P-2DS meets all these criteria and qualifies as a direct substitute.
Parameter Comparison
| Parameter | DF3-7P-2DS (Main Part) | DF3A-7P-2DS (Substitute) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Series | DF3 | DF3 |
| Connector Type | Header | Header |
| Number of Positions | 7 | 7 |
| Pitch - Mating | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Contact Type | Male Pin | Male Pin |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Fastening Type | Push-Pull | Push-Pull |
| Contact Length - Mating | 0.122" (3.10mm) | 0.122" (3.10mm) |
| Contact Length - Post | 0.114" (2.90mm) | 0.114" (2.90mm) |
| Insulation Height | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Contact Shape | Square | Square |
| Contact Finish - Mating | Tin | Tin |
| Contact Finish - Post | Tin | Tin |
| Contact Material | Brass | Brass |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Insulation Color | Black | Black |
| Current Rating | 3A | 3A |
| Moisture Sensitivity Level | 1 (Unlimited) | 1 (Unlimited) |
| REACH Status | REACH Unaffected | REACH Unaffected |
| ECCN | EAR99 | EAR99 |
| HTSUS | 8536.69.4040 | 8536.69.4040 |
| Product Status | Obsolete | Active |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant |
| Packaging | - | Bulk |
| Inventory Status | 1038 Pcs New Original In Stock | 1099 Pcs New Original In Stock |
Engineering Selection Recommendations
The DF3A-7P-2DS is the direct substitute for the obsolete DF3-7P-2DS. Both parts share identical electrical and mechanical specifications across all critical parameters. The primary distinction is product status and regulatory compliance: the DF3A-7P-2DS is active and ROHS3 compliant, whereas the original part is obsolete and RoHS non-compliant. For new designs or ongoing production requiring regulatory compliance, the DF3A-7P-2DS is the appropriate selection. Both parts maintain equivalent performance characteristics, contact ratings, and environmental operating ranges.
Frequently Asked Questions (FAQ)
Q: Can the DF3A-7P-2DS be used as a direct replacement for the DF3-7P-2DS?
A: Yes. The DF3A-7P-2DS is electrically and mechanically equivalent to the DF3-7P-2DS across all specified parameters, including pitch, position count, contact type, mounting configuration, and current rating.
Q: What is the primary difference between these two parts?
A: The DF3A-7P-2DS is an active product with ROHS3 compliance, while the DF3-7P-2DS is obsolete and RoHS non-compliant. Functionally, they are identical.
Q: Are there any compatibility concerns when substituting the DF3A-7P-2DS for the DF3-7P-2DS?
A: No compatibility concerns exist. Both parts feature identical mating pitch (2.00mm), contact geometry, shrouding design, and fastening mechanism. PCB layouts and mating connector specifications remain unchanged.
Q: What packaging is available for the substitute part?
A: The DF3A-7P-2DS is supplied in bulk packaging.
Q: Does the substitute part meet current regulatory requirements?
A: Yes. The DF3A-7P-2DS is ROHS3 compliant and REACH unaffected, meeting current regulatory standards for electronic components.
