DF3-6P-2DS Equivalent & Substitute Parts

Part Overview

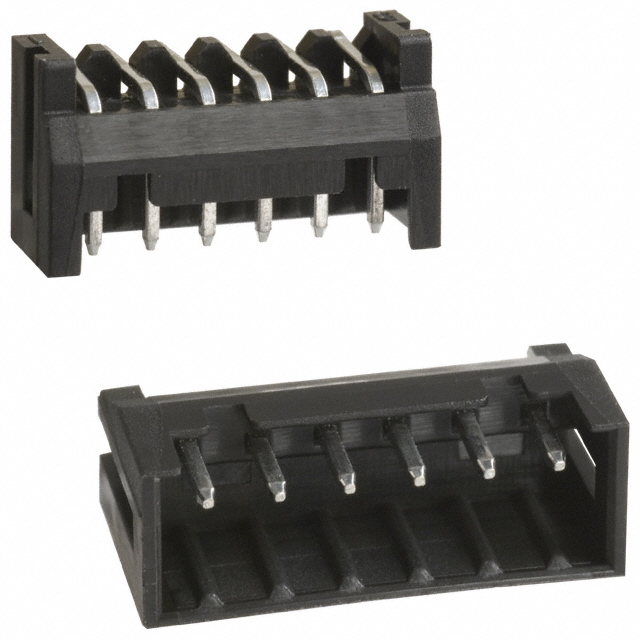

The DF3-6P-2DS is a rectangular connector header manufactured by Hirose Electric Co Ltd, designed for through-hole, right-angle board-to-board or cable applications. This 6-position connector operates at 3A current rating with a 2.00mm pitch and features shrouded 4-wall construction with push-pull fastening. The DF3-6P-2DS is classified as obsolete, making identification of compatible substitute parts essential for ongoing design support and procurement.

Substiute Parts

DF3-6P-2DS

Hirose Electric Co LtdIn Stock: 1116DF3-6P-2DS Datasheet

Current PartRFQ

DF3A-6P-2DS

Hirose Electric Co LtdIn Stock: 43029DF3A-6P-2DS Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the DF3-6P-2DS is determined by strict equivalence across the following critical parameters:

• Connector Type & Contact Configuration: Header with male pin contacts
• Position Count & Pitch: 6 positions at 0.079" (2.00mm) mating pitch
• Mounting & Orientation: Through-hole, right-angle mounting
• Shrouding Design: Shrouded 4-wall construction
• Electrical Rating: 3A current capacity
• Thermal Range: -55°C to 105°C operating temperature
• Termination Method: Press-fit and solder termination
• Fastening Mechanism: Push-pull fastening type

The substitute part DF3A-6P-2DS maintains identical electrical, mechanical, and dimensional specifications across all these parameters, establishing direct functional equivalence.

Parameter Comparison

Engineering Selection Recommendations

The DF3A-6P-2DS is a direct functional equivalent to the DF3-6P-2DS across all electrical, mechanical, and dimensional specifications. The primary distinction is product lifecycle status: the DF3-6P-2DS is obsolete while the DF3A-6P-2DS is active production.

The DF3A-6P-2DS offers additional compliance advantages. It meets ROHS3 requirements, whereas the DF3-6P-2DS is RoHS non-compliant. Both parts maintain identical UL94 V-0 flammability ratings and REACH unaffected status. Inventory availability for the DF3A-6P-2DS is substantially higher at 43,014 pieces compared to 1,063 pieces for the obsolete variant.

For new designs or ongoing production requiring this connector category, the DF3A-6P-2DS is the appropriate selection based on active product status and regulatory compliance.
