DF3-5S-2C(10) Equivalent & Substitute Parts

Part Overview

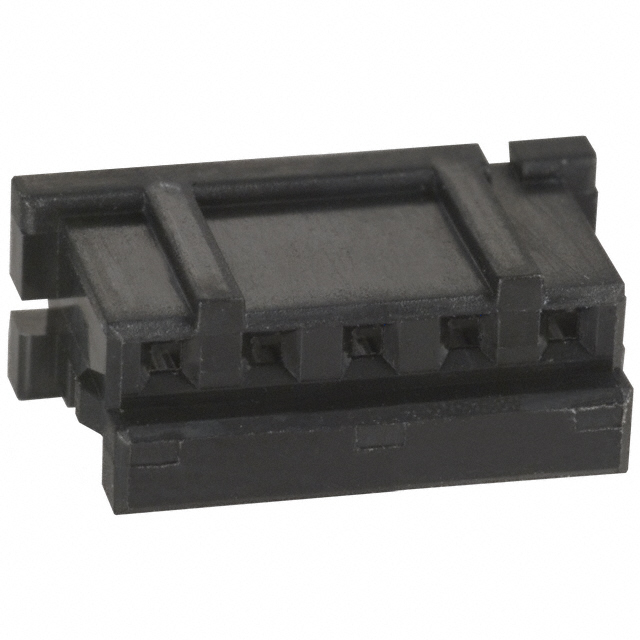

The DF3-5S-2C(10) is a rectangular connector housing manufactured by Hirose Electric Co Ltd, designed for 5-position applications with a 2.00mm pitch. This part is classified as Obsolete and is no longer in active production. Due to its obsolete status, locating original inventory becomes increasingly difficult. The DF3-5S-2C serves as the direct functional equivalent and active production alternative, maintaining identical electrical and mechanical specifications while offering current availability and ongoing manufacturer support.

Substiute Parts

DF3-5S-2C(10)

Hirose Electric Co LtdIn Stock: 1153DF3-5S-2C(10) Datasheet

Current PartRFQ

DF3-5S-2C

Hirose Electric Co LtdIn Stock: 500414DF3-5S-2C Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

The DF3-5S-2C is classified as a direct substitute for the DF3-5S-2C(10) based on the following critical parameters:

• Base Product Number: Both parts share the DF3-5 base designation, indicating identical mechanical and electrical architecture
• Number of Positions: Both accommodate 5 contacts
• Pitch Specification: Both maintain 0.079" (2.00mm) contact spacing
• Connector Type: Both are receptacle housings
• Contact Type: Both feature female socket contacts
• Manufacturer: Both are produced by Hirose Electric Co Ltd

The primary distinction is product status: DF3-5S-2C(10) is obsolete, while DF3-5S-2C is active production. The substitution is valid for all applications where the original part was specified.

Parameter Comparison

Engineering Selection Recommendations

The DF3-5S-2C is the appropriate selection for applications currently specified with DF3-5S-2C(10). The substitute part maintains identical mechanical and electrical characteristics across all critical parameters: position count, pitch, connector type, contact type, mounting configuration, and operating temperature range.

The DF3-5S-2C offers the additional advantage of active production status, ensuring ongoing availability and manufacturer support. The part carries ROHS3 compliance and REACH unaffected status, meeting current regulatory requirements. These certifications provide assurance for new designs and long-term supply chain stability.

No design modifications or re-qualification are required when transitioning from DF3-5S-2C(10) to DF3-5S-2C, as the parts are functionally and mechanically interchangeable.

Frequently Asked Questions (FAQ)

Q: Can DF3-5S-2C directly replace DF3-5S-2C(10) without design changes?

A: Yes. Both parts share identical specifications for number of positions (5), pitch (2.00mm), connector type (receptacle), contact type (female socket), mounting type (free hanging in-line), and operating temperature range (-55°C to 105°C). Direct substitution is valid.

Q: What is the significance of the "(10)" designation in DF3-5S-2C(10)?

A: The "(10)" suffix typically indicates a specific packaging or manufacturing variant. The base product number DF3-5 and the core part designation DF3-5S-2C remain consistent, confirming functional equivalence.

Q: Why is DF3-5S-2C(10) listed as obsolete?

A: Obsolete status indicates the part is no longer manufactured by Hirose Electric Co Ltd. The DF3-5S-2C remains in active production and serves as the current equivalent for new applications and replacements.

Q: Are there any compliance differences between the two parts?

A: DF3-5S-2C carries ROHS3 compliance and REACH unaffected certification. The original DF3-5S-2C(10) compliance status is not specified. For applications requiring regulatory compliance documentation, DF3-5S-2C provides verified certifications.

Q: What is the contact termination method for these parts?

A: Both parts use crimp termination. Contacts are not included with the housing and must be sourced separately and crimped into the receptacle positions.

Q: Are the insulation materials identical?

A: Yes. Both parts use Polyamide (PA) and Nylon for insulation material, ensuring consistent electrical and mechanical performance.
