DF33-4DS-3.3C Equivalent & Substitute Parts

Part Overview

The DF33-4DS-3.3C is a 4-position rectangular connector housing manufactured by Hirose Electric Co Ltd, part of the EnerBee™ DF33 series. This receptacle connector features a 0.130" (3.30mm) pitch and is designed for free-hanging in-line mounting applications with crimp contact termination and latch lock fastening. The product is currently obsolete, making identification of compatible substitute parts essential for ongoing system maintenance and component sourcing.

Substiute Parts

DF33-4DS-3.3C

Hirose Electric Co LtdIn Stock: 1125DF33-4DS-3.3C Datasheet

Current PartRFQ

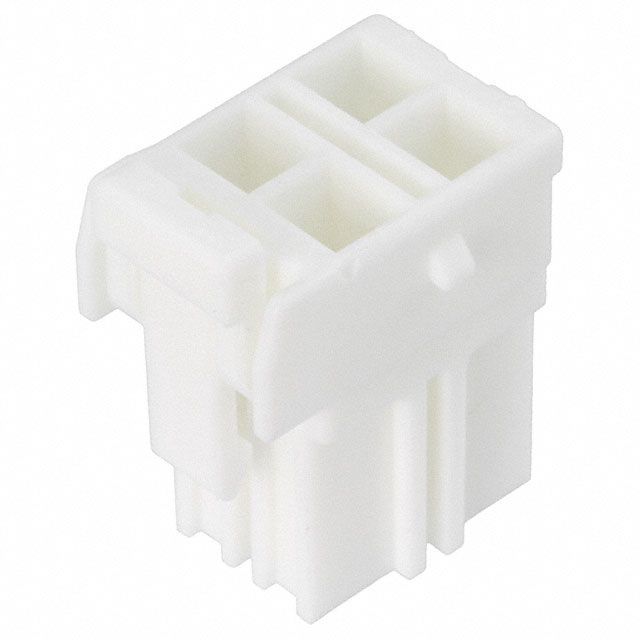

DF33C-4DS-3.3C

Hirose Electric Co LtdIn Stock: 24184DF33C-4DS-3.3C Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the DF33-4DS-3.3C is determined by strict equivalence across the following critical parameters:

• Connector type: Receptacle housing
• Contact type: Female socket
• Number of positions: 4
• Pitch specification: 0.130" (3.30mm)
• Row configuration: 2 rows with 0.228" (5.80mm) spacing
• Mounting method: Free hanging in-line
• Contact termination: Crimp
• Fastening mechanism: Latch lock

The DF33C-4DS-3.3C meets all these criteria and is classified as a direct substitute. This part maintains identical electrical and mechanical interface specifications while offering improved product status and availability.

Parameter Comparison

Engineering Selection Recommendations

The DF33C-4DS-3.3C is the direct substitute for the obsolete DF33-4DS-3.3C. Both parts maintain identical electrical and mechanical specifications across all critical interface parameters. The substitute part offers the following advantages:

• Active product status with established supply chain availability
• ROHS3 compliance, meeting current regulatory requirements
• Equivalent RoHS compliance and MSL rating
• Identical connector interface specifications ensuring mechanical and electrical compatibility

The color difference (natural versus white) is a cosmetic variation that does not affect functional performance or electrical characteristics. Both parts carry the same ECCN and HTSUS classifications.

Frequently Asked Questions (FAQ)

Q: Can the DF33C-4DS-3.3C be used as a direct replacement for the DF33-4DS-3.3C?

A: Yes. The DF33C-4DS-3.3C is a direct substitute. Both parts share identical specifications for connector type, contact configuration, pitch, row spacing, mounting method, termination type, and fastening mechanism. The parts are mechanically and electrically interchangeable.

Q: What is the difference between these two part numbers?

A: The primary differences are product status and color. The DF33-4DS-3.3C is obsolete, while the DF33C-4DS-3.3C is active. The DF33-4DS-3.3C has a natural color housing, while the DF33C-4DS-3.3C has a white housing. Both parts meet RoHS compliance requirements and carry identical electrical specifications.

Q: Are there any compatibility concerns when substituting these parts?

A: No compatibility concerns exist. The parts are designed to interface with identical mating connectors and contact configurations. The MSL rating of 1 (Unlimited) is equivalent for both parts, indicating no moisture sensitivity restrictions during storage or handling.

Q: What is the packaging difference?

A: The DF33-4DS-3.3C is listed with no specified packaging information, while the DF33C-4DS-3.3C is supplied in bulk packaging. This difference affects ordering and inventory management but does not impact the functional characteristics of the connector housing.

Q: Do these parts require specific contact types?

A: Both parts are receptacle housings designed for female socket contacts. Contacts are not included with either part and must be sourced separately. The crimp termination specification applies to both parts.
