DF33-2P-3.3DSA(24) Equivalent & Substitute Parts

Part Overview

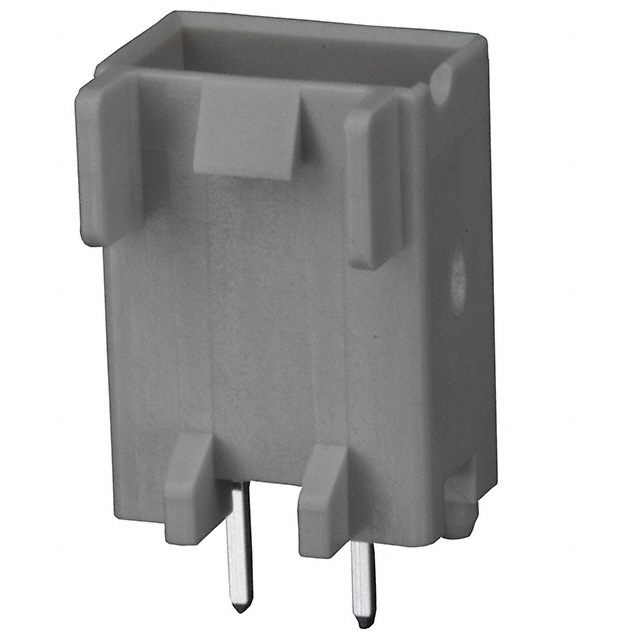

The DF33-2P-3.3DSA(24) is a rectangular connector header manufactured by Hirose Electric Co Ltd, designed for through-hole mounting in board-to-cable/wire applications. This vertical 2-position connector operates at 5A current rating and 500V voltage rating with a 0.130" (3.30mm) pitch. The part is currently in Last Time Buy status, making identification of active equivalent alternatives essential for ongoing design support and procurement planning.

Key Parameters

Parameter	Value
Manufacturer Part Number	DF33-2P-3.3DSA(24)
Manufacturer	Hirose Electric Co Ltd
Category	Rectangular Connectors
Series	EnerBee™ DF33
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.130" (3.30mm)
Number of Positions	2
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Current Rating	5A
Voltage Rating	500V
Operating Temperature	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the DF33-2P-3.3DSA(24) is determined by the following critical parameters:

Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.130" (3.30mm)
Number of Positions: 2
Number of Rows: 1
Mounting Type: Through Hole
Termination: Solder
Current Rating: 5A
Voltage Rating: 500V
Operating Temperature Range: -35°C ~ 85°C
Material Flammability Rating: UL94 V-0

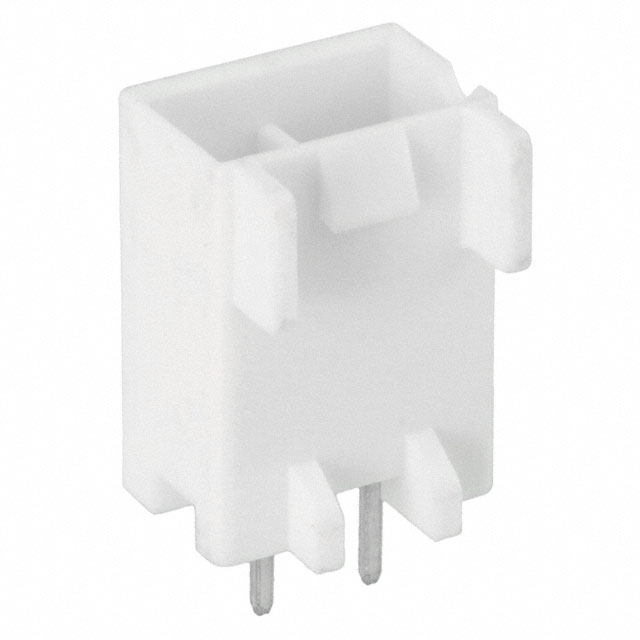

The DF33C-2P-3.3DSA(24) qualifies as a direct substitute, maintaining identical electrical and mechanical specifications while representing an active product line continuation within the Hirose EnerBee™ connector family.

Parameter Comparison

Parameter	DF33-2P-3.3DSA(24)	DF33C-2P-3.3DSA(24)
Manufacturer	Hirose Electric Co Ltd	Hirose Electric Co Ltd
Category	Rectangular Connectors	Rectangular Connectors
Connector Type	Header	Header
Contact Type	Male Pin	Male Pin
Pitch - Mating	0.130" (3.30mm)	0.130" (3.30mm)
Number of Positions	2	2
Number of Rows	1	1
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Mounting Type	Through Hole	Through Hole
Termination	Solder	Solder
Fastening Type	Locking Ramp	Locking Ramp
Contact Length - Post	0.118" (3.00mm)	0.118" (3.00mm)
Insulation Height	0.453" (11.50mm)	0.453" (11.50mm)
Contact Shape	Square	Square
Contact Finish - Mating	Tin	Tin
Contact Finish - Post	Tin	Tin
Contact Material	Copper Alloy	Brass
Insulation Material	Polyamide (PA), Nylon, Glass Filled	Polybutylene Terephthalate (PBT)
Operating Temperature	-35°C ~ 85°C	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0	UL94 V-0
Current Rating	5A	5A
Voltage Rating	500V	500V
Mated Stacking Heights	17.6mm	17.6mm
Product Status	Last Time Buy	Active
RoHS Status	RoHS Compliant	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)

Engineering Selection Recommendations

The DF33C-2P-3.3DSA(24) is the direct active equivalent for the DF33-2P-3.3DSA(24). Both connectors maintain identical electrical performance specifications, mechanical dimensions, and thermal operating ranges. The DF33C variant represents the current production continuation of the EnerBee™ DF33 series and carries Active product status, ensuring long-term availability and supply chain continuity.

Material composition differences exist between the two parts: the original uses Copper Alloy contacts with glass-filled Polyamide insulation, while the substitute uses Brass contacts with Polybutylene Terephthalate insulation. Both configurations meet UL94 V-0 flammability requirements and maintain identical electrical ratings. The DF33C-2P-3.3DSA(24) achieves ROHS3 compliance, providing enhanced regulatory alignment for new designs.

For applications requiring component replacement or new procurement, the DF33C-2P-3.3DSA(24) provides full functional and mechanical compatibility with identical pin configuration, pitch spacing, and mounting footprint.

Frequently Asked Questions (FAQ)

Q: Can the DF33C-2P-3.3DSA(24) be used as a direct replacement for the DF33-2P-3.3DSA(24)?

A: Yes. Both connectors share identical electrical ratings (5A, 500V), mechanical dimensions (2 positions, 3.30mm pitch, 17.6mm stacking height), operating temperature range (-35°C ~ 85°C), and through-hole solder termination. Pin-to-pin compatibility is complete.

Q: What are the material differences between these two parts?

A: The DF33-2P-3.3DSA(24) uses Copper Alloy contacts with glass-filled Polyamide insulation. The DF33C-2P-3.3DSA(24) uses Brass contacts with Polybutylene Terephthalate insulation. Both materials maintain equivalent electrical performance and UL94 V-0 flammability ratings.

Q: Why is the original part listed as Last Time Buy?

A: Last Time Buy status indicates the manufacturer is discontinuing this specific part number. The DF33C-2P-3.3DSA(24) represents the active production equivalent within the same EnerBee™ DF33 connector family.

Q: Are there any compliance differences between the two parts?

A: The DF33-2P-3.3DSA(24) is RoHS Compliant. The DF33C-2P-3.3DSA(24) is ROHS3 Compliant, representing an updated regulatory certification. Both parts carry Moisture Sensitivity Level 1 (Unlimited).

Q: Will the PCB footprint remain the same if I switch to the substitute part?

A: Yes. Both connectors maintain identical through-hole mounting specifications, insulation height (11.50mm), and mated stacking height (17.6mm). PCB layout and footprint design require no modification.

Q: What is the current inventory status for each part?

A: The DF33-2P-3.3DSA(24) has 1144 pieces in stock. The DF33C-2P-3.3DSA(24) has 970 pieces in stock. Both are available as new original components.
