DF3-22SCF(40) Equivalent & Substitute Parts

Part Overview

The DF3-22SCF(40) is a rectangular connector socket contact manufactured by Hirose Electric Co Ltd, designed for 22 AWG wire gauge applications with crimp termination. This component is classified as obsolete, indicating it is no longer in active production. The identification of equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing maintenance and repair operations for systems utilizing this connector contact.

Substiute Parts

DF3-22SCF(40)

Hirose Electric Co LtdIn Stock: 956DF3-22SCF(40) Datasheet

Current PartRFQ

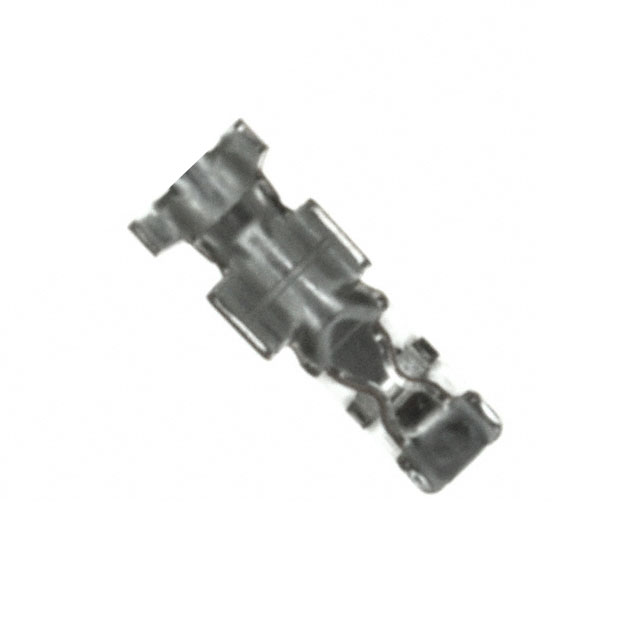

DF3-22SCF

Hirose Electric Co LtdIn Stock: 151392DF3-22SCF Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the DF3-22SCF(40) is based on strict alignment of the following critical parameters:

Substitution Criteria:

• Connector Type: Socket contact (matching pin or socket classification)
• Contact Termination Method: Crimp (matching termination technology)
• Wire Gauge Compatibility: 22 AWG (matching conductor size specification)
• Manufacturer Consistency: Hirose Electric Co Ltd (same manufacturer ecosystem)
• Moisture Sensitivity Level: MSL 1 (Unlimited) (matching environmental rating)
• Product Category: Rectangular Connectors (matching connector classification)

The substitute part DF3-22SCF meets all these criteria and represents the active production equivalent of the obsolete DF3-22SCF(40). The primary distinction is the product status transition from obsolete to active, coupled with enhanced compliance certifications and improved inventory availability.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: DF3-22SCF

The DF3-22SCF is the direct active production equivalent for the obsolete DF3-22SCF(40). Selection of this substitute is supported by the following engineering factors:

Product Status: The substitute part maintains active production status, ensuring long-term supply chain availability and support compared to the obsolete main part.

Compliance Certifications: The DF3-22SCF carries RoHS3 compliance and REACH Unaffected status, meeting current regulatory requirements for electronic components in restricted substance directives.

Electrical and Mechanical Compatibility: All critical parameters—socket contact type, crimp termination, 22 AWG wire gauge, and MSL 1 rating—are identical between the main part and substitute, ensuring functional equivalence in circuit applications.

Export Classification: Both parts share identical ECCN (EAR99) and HTSUS (8536.90.4000) classifications, maintaining consistent regulatory treatment for procurement and logistics.

Inventory Availability: The substitute part maintains significantly higher inventory levels (151,372 pieces) compared to the main part (926 pieces), supporting immediate procurement requirements.

Frequently Asked Questions (FAQ)

Q: Can DF3-22SCF be used as a direct replacement for DF3-22SCF(40)?

A: Yes. Both parts are socket contacts with identical 22 AWG wire gauge, crimp termination, and MSL 1 rating. The DF3-22SCF is the active production equivalent of the obsolete DF3-22SCF(40).

Q: What is the significance of the "(40)" designation in DF3-22SCF(40)?

A: The "(40)" suffix in the main part number is not detailed in the provided specifications. The substitute part DF3-22SCF operates under identical electrical and mechanical parameters without this designation.

Q: Are there packaging differences between the main part and substitute?

A: The main part packaging is not specified in the provided data. The substitute part DF3-22SCF is supplied in Cut Tape (CT) packaging format.

Q: Does the tin contact finish on the substitute part affect compatibility?

A: The contact finish specification is not provided for the main part DF3-22SCF(40). The substitute part DF3-22SCF specifies tin contact finish. Compatibility is determined by the matching socket type, crimp termination, and 22 AWG wire gauge.

Q: What compliance certifications apply to the substitute part?

A: The DF3-22SCF substitute carries RoHS3 compliance and REACH Unaffected status, meeting current environmental and substance restriction regulations. Both parts share identical ECCN and HTSUS classifications.

Q: Is the substitute part suitable for applications requiring MSL 1 rating?

A: Yes. The DF3-22SCF maintains MSL 1 (Unlimited) rating, identical to the main part, supporting applications with unlimited moisture sensitivity requirements.
