DF3-13P-2DS Equivalent & Substitute Parts

Part Overview

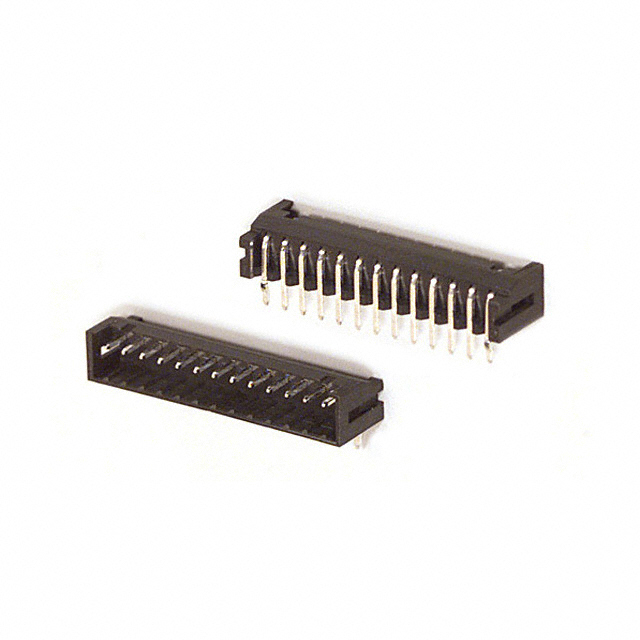

The DF3-13P-2DS is a rectangular connector header manufactured by Hirose Electric Co Ltd, designed for through-hole, right-angle board-to-board or cable applications. This 13-position connector operates at 2.00mm pitch with press-fit and solder termination options. The part is currently listed as obsolete, making identification of compatible substitutes essential for ongoing design support and component procurement.

Substiute Parts

DF3-13P-2DS

Hirose Electric Co LtdIn Stock: 884DF3-13P-2DS Datasheet

Current PartRFQ

DF3A-13P-2DS

Hirose Electric Co LtdIn Stock: 942DF3A-13P-2DS Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the DF3-13P-2DS is determined by strict equivalence across the following critical parameters:

• Connector type (Header)
• Contact type (Male Pin)
• Number of positions (13)
• Mating pitch (0.079" / 2.00mm)
• Mounting configuration (Through Hole, Right Angle)
• Shrouding design (Shrouded - 4 Wall)
• Termination method (Press-Fit, Solder)
• Current rating (3A)
• Operating temperature range (-55°C ~ 105°C)
• Material flammability rating (UL94 V-0)
• Insulation material (Polyamide/Nylon)
• Contact material (Brass with Tin finish)

The DF3A-13P-2DS qualifies as a direct substitute based on complete alignment with all these parameters.

Parameter Comparison

Engineering Selection Recommendations

The DF3A-13P-2DS is a direct functional equivalent to the DF3-13P-2DS. Both parts maintain identical electrical and mechanical specifications across all critical parameters. The primary distinction is product status and regulatory compliance: the DF3-13P-2DS is obsolete, while the DF3A-13P-2DS is active in production. Additionally, the DF3A-13P-2DS achieves ROHS3 compliance, whereas the DF3-13P-2DS is RoHS non-compliant. For new designs or ongoing production requiring regulatory alignment with current environmental standards, the DF3A-13P-2DS is the appropriate selection.

Frequently Asked Questions (FAQ)

Q: Are the DF3-13P-2DS and DF3A-13P-2DS mechanically interchangeable?

A: Yes. Both connectors share identical mounting type (through hole, right angle), shrouding configuration (4 wall), and physical dimensions including contact length, insulation height, and pitch spacing.

Q: What is the difference between these two part numbers?

A: The DF3A-13P-2DS is the active production variant of the DF3 series, while the DF3-13P-2DS is obsolete. The DF3A-13P-2DS also meets ROHS3 compliance requirements, whereas the original part does not.

Q: Can I use the DF3A-13P-2DS in place of the DF3-13P-2DS in existing designs?

A: Yes. The DF3A-13P-2DS is electrically and mechanically equivalent. It operates at the same current rating (3A), temperature range (-55°C to 105°C), and maintains the same contact configuration and termination methods.

Q: What is the packaging difference?

A: The DF3-13P-2DS is listed with no specified packaging, while the DF3A-13P-2DS is supplied in bulk packaging.

Q: Are there any compliance considerations when switching to the DF3A-13P-2DS?

A: The DF3A-13P-2DS provides improved regulatory compliance with ROHS3 certification. Both parts maintain UL94 V-0 flammability rating and REACH unaffected status.
