DF22R-3P-7.92DSA(06) Equivalent & Substitute Parts

Part Overview

The DF22R-3P-7.92DSA(06) is a rectangular connector header manufactured by Hirose Electric Co Ltd, classified as a connector header position component within the rectangular connectors category. This part is currently listed with obsolete product status. The DF22R-3P-7.92DSA(06) operates within the EnerBee™ DF22 series and is subject to ROHS3 compliance requirements. Due to its obsolete status, identification of active equivalent parts is necessary to ensure continued availability and supply chain continuity for applications requiring this connector specification.

Substiute Parts

DF22R-3P-7.92DSA(06)

Hirose Electric Co LtdIn Stock: 1045DF22R-3P-7.92DSA(06) Datasheet

Current PartRFQ

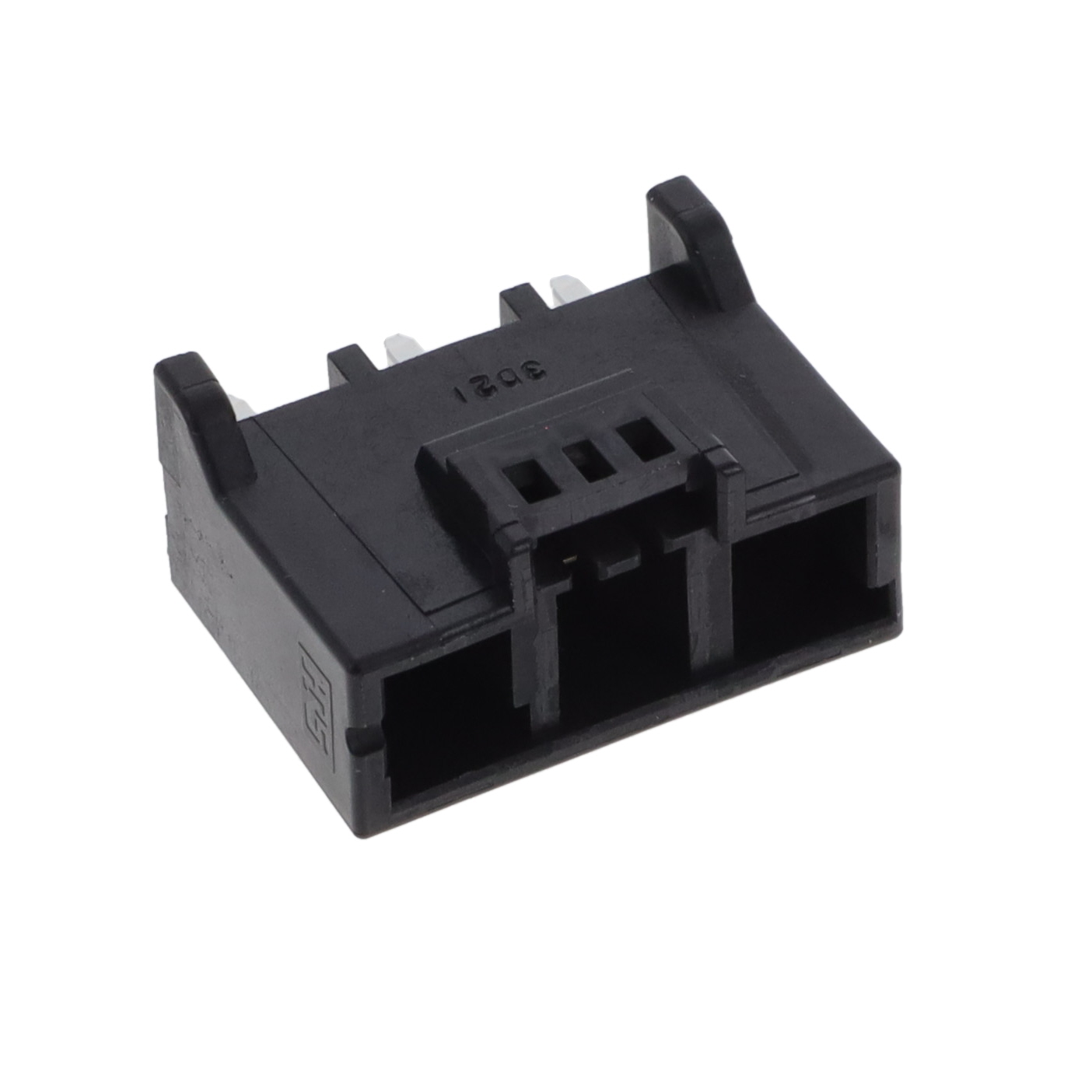

DF22R-3P-7.92DSA(53)

Hirose Electric Co LtdIn Stock: 1597DF22R-3P-7.92DSA(53) Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The DF22R-3P-7.92DSA(53) qualifies as a direct substitute for the DF22R-3P-7.92DSA(06) based on the following alignment of critical parameters:

Matching Criteria:

• Identical manufacturer: Hirose Electric Co Ltd
• Identical series designation: EnerBee™ DF22
• Identical category: Rectangular Connectors
• Identical pitch specification: 0.312" (7.92mm)
• Identical number of positions: 3
• Identical connector type: Header
• Identical contact type: Male Pin
• Identical mounting type: Through Hole
• Identical termination method: Solder
• Identical fastening type: Latch Holder
• Identical insulation material: Polyamide (PA), Nylon
• Identical contact material: Copper Alloy
• Identical contact finish: Gold
• Identical voltage rating: 1000VAC/DC
• Identical operating temperature range: -55°C ~ 85°C
• Identical MSL rating: 1 (Unlimited)
• Identical ECCN classification: EAR99
• Identical HTSUS code: 8536.69.4040
• Identical RoHS compliance: ROHS3 Compliant

The primary distinction is product status: the substitute part DF22R-3P-7.92DSA(53) maintains active status with significantly higher inventory availability (1572 pcs vs. 968 pcs).

Parameter Comparison

Engineering Selection Recommendations

The DF22R-3P-7.92DSA(53) is the appropriate selection for applications currently specified with DF22R-3P-7.92DSA(06). The substitute part maintains identical electrical and mechanical specifications across all critical parameters, including pitch, contact configuration, termination method, and operating characteristics.

The transition from DF22R-3P-7.92DSA(06) to DF22R-3P-7.92DSA(53) is supported by:

1. Product Status Alignment: The substitute part maintains active product status, ensuring long-term availability and supply chain stability compared to the obsolete status of the original part.

2. Compliance Continuity: Both parts maintain identical ROHS3 compliance and EAR99 ECCN classification, ensuring regulatory requirements are preserved.

3. Electrical and Mechanical Equivalence: All functional parameters including voltage rating (1000VAC/DC), operating temperature range (-55°C ~ 85°C), contact materials, and dimensional specifications are identical.

4. Inventory Availability: The substitute part demonstrates higher current inventory levels, supporting production continuity.

Frequently Asked Questions (FAQ)

Q: Are the DF22R-3P-7.92DSA(06) and DF22R-3P-7.92DSA(53) electrically identical?

A: Yes. Both parts share identical electrical specifications including voltage rating (1000VAC/DC), contact material (Copper Alloy with Gold finish), and operating temperature range (-55°C ~ 85°C).

Q: What is the difference between these two part numbers?

A: The primary difference is product status. The DF22R-3P-7.92DSA(06) is obsolete, while the DF22R-3P-7.92DSA(53) maintains active status. The substitute part is packaged in bags, whereas packaging information for the original part is not specified. All functional and mechanical parameters are identical.

Q: Can DF22R-3P-7.92DSA(53) be used as a direct replacement in existing designs?

A: Yes. The substitute part is mechanically and electrically equivalent. It features identical pitch (0.312"/7.92mm), number of positions (3), mounting type (Through Hole), and all contact specifications.

Q: Are there any compliance differences between these parts?

A: No. Both parts maintain identical ROHS3 compliance, EAR99 ECCN classification, and HTSUS code (8536.69.4040). The substitute part additionally specifies REACH Unaffected status.

Q: What is the MSL rating for these connectors?

A: Both parts carry MSL rating 1 (Unlimited), indicating no moisture sensitivity restrictions for storage or handling.

Q: Are the contact dimensions identical?

A: Yes. Contact length specifications are identical: mating contact length 0.354" (9.00mm), post contact length 0.146" (3.70mm), and contact finish thickness 8.00µin (0.203µm) for both mating and post surfaces.

Q: What mounting configuration do these connectors support?

A: Both parts are Through Hole mounted connectors with solder termination and latch holder fastening. They feature shrouded 4-wall design with board guide and board lock features.
