DF22A-1012SCF Equivalent & Substitute Parts

Part Overview

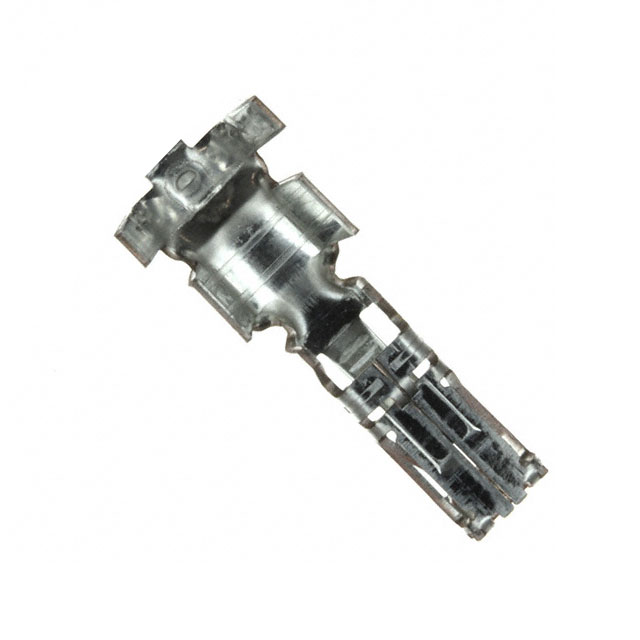

The DF22A-1012SCF is a socket contact connector from Hirose Electric's EnerBee™ DF22 series, designed for 10-12 AWG wire gauge applications with crimp termination and tin contact finish. This component is classified as obsolete, necessitating identification of active equivalent parts to maintain design continuity and ensure supply chain availability for new production and maintenance applications.

Substiute Parts

DF22A-1012SCF

Hirose Electric Co LtdIn Stock: 378988DF22A-1012SCF Datasheet

Current PartRFQ

DF22A-1012SCFA

Hirose Electric Co., Ltd.In Stock: 4190DF22A-1012SCFA Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the DF22A-1012SCF is determined by strict equivalence across the following critical parameters:

• Series alignment: EnerBee™ DF22
• Contact type: Socket
• Termination method: Crimp
• Wire gauge compatibility: 10-12 AWG
• Base product number: DF22A

The primary substitute, DF22A-1012SCFA, maintains full compatibility across all mechanical and electrical parameters. The distinction between the obsolete tin-finish variant and the active gold-finish substitute lies in contact finish material, which does not affect mechanical fit, termination compatibility, or wire gauge accommodation within the DF22 series architecture.

Parameter Comparison

Engineering Selection Recommendations

The DF22A-1012SCFA is the direct active equivalent for the obsolete DF22A-1012SCF. Both components share identical mechanical interfaces, termination specifications, and wire gauge ratings within the EnerBee™ DF22 rectangular connector series.

The DF22A-1012SCFA maintains superior compliance posture with ROHS3 certification compared to the RoHS Compliant status of the original part. Both components satisfy MSL 1 (Unlimited) moisture sensitivity requirements and carry identical ECCN and HTSUS classifications.

For new designs and production applications, the DF22A-1012SCFA is the appropriate selection due to active product status and current manufacturing availability. Existing designs utilizing the DF22A-1012SCF may transition to the DF22A-1012SCFA without modification to connector housing, mating interfaces, or termination procedures.

Frequently Asked Questions (FAQ)

Q: Can DF22A-1012SCFA directly replace DF22A-1012SCF in existing assemblies?

A: Yes. Both components are socket contacts within the EnerBee™ DF22 series with identical 10-12 AWG wire gauge accommodation and crimp termination specifications. Mechanical fit and electrical performance are equivalent.

Q: What is the functional difference between tin and gold contact finishes in this application?

A: Contact finish does not affect mechanical compatibility or termination method. Both tin and gold finishes are suitable for 10-12 AWG crimp applications within the DF22 series. Selection between finishes depends on application-specific corrosion resistance or conductivity requirements.

Q: Why is the DF22A-1012SCF classified as obsolete?

A: Obsolescence indicates the manufacturer has discontinued production. The DF22A-1012SCFA remains in active production and serves as the current equivalent offering from Hirose Electric.

Q: Are there packaging differences between the obsolete and substitute parts?

A: The DF22A-1012SCFA is supplied in Cut Tape (CT) packaging. Packaging format does not affect component functionality or compatibility with DF22 series connector housings.

Q: Do both parts meet current regulatory compliance standards?

A: The DF22A-1012SCFA carries ROHS3 Compliant certification, representing current regulatory alignment. Both components are REACH Unaffected and carry identical ECCN and HTSUS classifications.
