DF22-5S-7.92C Equivalent & Substitute Parts

Part Overview

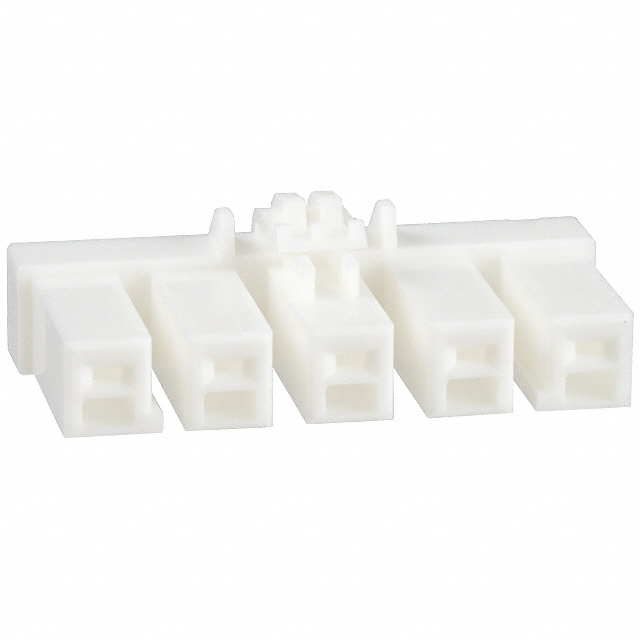

The DF22-5S-7.92C is a 5-position rectangular connector housing manufactured by Hirose Electric Co Ltd, part of the EnerBee™ DF22 series. This receptacle connector features a 0.312" (7.92mm) pitch and is designed for crimp termination with latch lock fastening. The main part number is currently listed as obsolete, which necessitates identification of active equivalent alternatives to maintain supply chain continuity for applications requiring this connector type.

Substiute Parts

DF22-5S-7.92C

Hirose Electric Co LtdIn Stock: 960DF22-5S-7.92C Datasheet

Current PartRFQ

DF22-5S-7.92C(28)

Hirose Electric Co LtdIn Stock: 1027DF22-5S-7.92C(28) Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the DF22-5S-7.92C is determined by strict equivalence across the following critical parameters:

• Connector type (Receptacle)
• Contact type (Female Socket)
• Number of positions (5)
• Pitch specification (0.312" / 7.92mm)
• Number of rows (1)
• Mounting type (Free Hanging / In-Line)
• Contact termination method (Crimp)
• Fastening type (Latch Lock)
• Color (White)
• Polarizing key feature

The substitute part DF22-5S-7.92C(28) maintains identical electrical and mechanical specifications across all these parameters, differing only in packaging configuration and product status classification.

Parameter Comparison

Engineering Selection Recommendations

The DF22-5S-7.92C(28) is the direct functional equivalent for applications currently using the obsolete DF22-5S-7.92C. The substitute part maintains complete electrical and mechanical compatibility across all connector specifications.

Key selection considerations:

• The substitute part carries Active product status, ensuring long-term availability and supply chain reliability compared to the obsolete main part number.
• DF22-5S-7.92C(28) is ROHS3 compliant, providing regulatory advantage for applications subject to RoHS requirements. The original part is RoHS non-compliant.
• Both parts are REACH Unaffected and classified under ECCN EAR99.
• Inventory availability is adequate for both part numbers, with the substitute offering slightly higher stock levels (981 Pcs vs. 876 Pcs).

Frequently Asked Questions (FAQ)

Q: Can DF22-5S-7.92C(28) be used as a direct replacement for DF22-5S-7.92C?

A: Yes. Both parts are identical in electrical and mechanical specifications, including connector type, contact configuration, pitch, mounting method, and fastening mechanism. The designation difference reflects packaging and product status classification only.

Q: What does the "(28)" designation in DF22-5S-7.92C(28) indicate?

A: The "(28)" suffix indicates the packaging configuration (Bulk packaging) and product status classification. The core connector specifications remain unchanged from the base part number.

Q: Are there compatibility concerns when transitioning from the obsolete to the active part number?

A: No compatibility concerns exist. The substitute part maintains identical form, fit, and function. The transition from RoHS non-compliant to ROHS3 compliant status represents an improvement for regulatory compliance.

Q: What is the operating temperature range for these connectors?

A: The substitute part DF22-5S-7.92C(28) operates across -55°C to 85°C. Operating temperature specifications for the original part were not provided in the technical documentation.

Q: Are contacts included with these connector housings?

A: No. Both the main part and substitute are connector housings only. Contacts must be sourced separately and crimped into the housing.

Q: What termination method is required for these connectors?

A: Both parts require crimp termination. Contacts are installed using standard crimp tooling compatible with the 0.312" (7.92mm) pitch specification.
