DF22-1416SC Equivalent & Substitute Parts

Part Overview

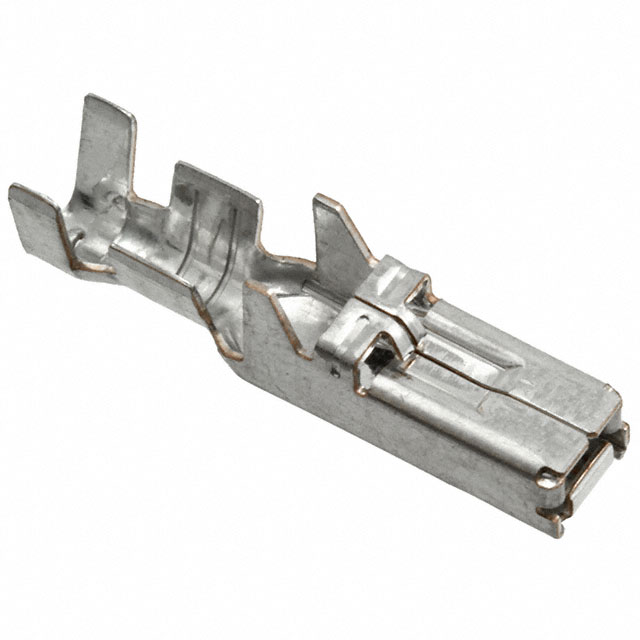

The DF22-1416SC is a socket contact for rectangular connectors manufactured by Hirose Electric Co Ltd, part of the EnerBee™ DF22 series. This component is designed for 14-16 AWG wire applications with crimp termination and tin contact finish. The part is currently classified as obsolete, making identification of suitable alternatives essential for ongoing system maintenance and new design implementations.

Substiute Parts

DF22-1416SC

Hirose Electric Co LtdIn Stock: 748DF22-1416SC Datasheet

Current PartRFQ

DF22-1416SCA

Hirose Electric Co LtdIn Stock: 1062DF22-1416SCA Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the DF22-1416SC is determined by the following critical parameters:

• Series compatibility: Part must belong to EnerBee™ DF22 series
• Contact type: Socket configuration required
• Termination method: Crimp termination only
• Wire gauge range: 14-16 AWG
• Stamped construction type
• Moisture sensitivity level: MSL 1 or equivalent

The DF22-1416SCA meets all substitution criteria. While the contact finish differs (gold versus tin), both finishes are compatible within the EnerBee™ DF22 series for the specified wire gauge and termination method. The substitute part is currently in active production status with improved availability.

Parameter Comparison

Engineering Selection Recommendations

The DF22-1416SCA is the direct substitute for the obsolete DF22-1416SC. Both components share identical mechanical and electrical specifications for the EnerBee™ DF22 series, including socket configuration, crimp termination, and 14-16 AWG wire gauge compatibility.

The substitute part offers the advantage of active production status, ensuring long-term availability and supply chain continuity. The DF22-1416SCA maintains MSL 1 rating and exceeds the original RoHS compliance requirement with ROHS3 certification. The gold contact finish provides enhanced corrosion resistance compared to the tin finish of the original part, while maintaining full electrical and mechanical compatibility within the DF22 series.

Frequently Asked Questions (FAQ)

Q: Can DF22-1416SCA be used as a direct replacement for DF22-1416SC in existing assemblies?

A: Yes. Both parts are socket contacts within the EnerBee™ DF22 series with identical wire gauge (14-16 AWG), crimp termination, and stamped construction. The gold contact finish of the substitute provides equivalent or superior performance to the tin finish of the original part.

Q: What is the significance of the contact finish difference between tin and gold?

A: Contact finish affects corrosion resistance and long-term reliability. Gold provides superior corrosion resistance, making DF22-1416SCA suitable for applications requiring extended service life or exposure to corrosive environments. Both finishes are electrically compatible within the DF22 series.

Q: Why is the original DF22-1416SC classified as obsolete?

A: Obsolescence indicates the part is no longer in active production. The DF22-1416SCA represents the current active alternative within the same series, ensuring continued access to compatible socket contacts for 14-16 AWG applications.

Q: Are there packaging differences between the original and substitute parts?

A: The DF22-1416SCA is supplied in bag packaging. Packaging format does not affect electrical or mechanical compatibility; it impacts only handling and storage procedures.

Q: Does the ROHS3 compliance of DF22-1416SCA provide additional benefits over RoHS compliance of the original?

A: ROHS3 represents current regulatory compliance standards. Both parts meet environmental and safety requirements; ROHS3 certification of the substitute ensures alignment with current and future regulatory frameworks.
