DF1B-2428SC(19) Equivalent & Substitute Parts

Part Overview

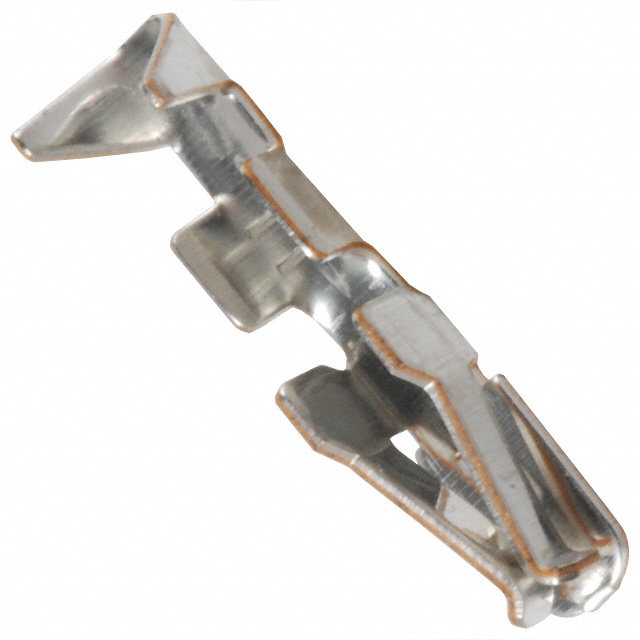

The DF1B-2428SC(19) is a socket contact connector from Hirose Electric Co Ltd's DF1B rectangular connector series, designed for 24-28 AWG wire gauges with crimp termination and tin contact finish. This part is classified as obsolete, making identification of active equivalent components essential for ongoing procurement and system maintenance. The DF1B-2428SC represents the direct active equivalent with identical electrical and mechanical specifications.

Substiute Parts

DF1B-2428SC(19)

Hirose Electric Co LtdIn Stock: 1106DF1B-2428SC(19) Datasheet

Current PartRFQ

DF1B-2428SC

Hirose Electric Co LtdIn Stock: 18887DF1B-2428SC Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The DF1B-2428SC serves as the direct substitute for the obsolete DF1B-2428SC(19). Substitution validity is determined by matching the following critical parameters:

• Socket contact type (Pin or Socket: Socket)
• Crimp termination method (Contact Termination: Crimp)
• Wire gauge specification (24-28 AWG)
• Tin contact finish (Contact Finish: Tin)
• DF1B series compatibility (Base Product Number: DF1B)
• RoHS compliance status (RoHS Compliant)
• Moisture sensitivity classification (MSL 1)

The DF1B-2428SC maintains identical specifications across all functional and compliance parameters, confirming direct substitutability.

Parameter Comparison

Engineering Selection Recommendations

The DF1B-2428SC is the appropriate selection for applications currently specified with DF1B-2428SC(19). Both components are RoHS compliant and carry identical MSL classification, ensuring regulatory and environmental compatibility. The transition from obsolete to active status does not introduce functional differences; the substitute maintains all electrical and mechanical characteristics required for direct replacement. Bulk packaging availability of the active part supports standard procurement workflows.

Frequently Asked Questions (FAQ)

Q: Can DF1B-2428SC directly replace DF1B-2428SC(19)? A: Yes. Both components share identical specifications for socket type, crimp termination, 24-28 AWG wire gauge, tin contact finish, and RoHS compliance status. Direct substitution is valid.

Q: What determines compatibility between these socket contacts? A: Compatibility is established through matching pin/socket configuration, contact termination method, wire gauge range, contact finish material, and series designation. All parameters are identical between the two parts.

Q: Are there packaging differences between the obsolete and active versions? A: The obsolete DF1B-2428SC(19) has unspecified packaging, while the active DF1B-2428SC is supplied in bulk packaging. This does not affect functional compatibility.

Q: What is the significance of MSL 1 classification? A: MSL 1 indicates unlimited shelf life with no moisture sensitivity restrictions, meaning standard storage conditions are sufficient without special handling requirements.

Q: Is RoHS compliance maintained in the substitute part? A: Yes. Both the obsolete and active versions are RoHS compliant, maintaining regulatory compliance for applications subject to RoHS requirements.
