DF14-5P-1.25H(25) Equivalent & Substitute Parts

Part Overview

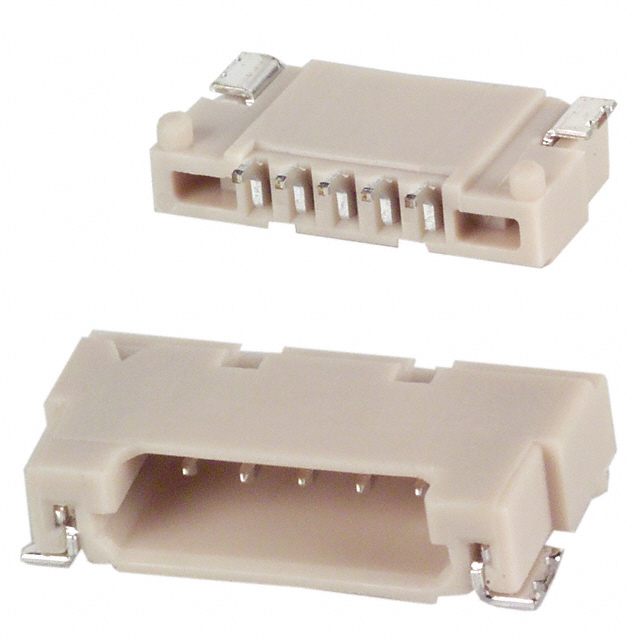

The DF14-5P-1.25H(25) is a rectangular connector header manufactured by Hirose Electric Co Ltd, designed for surface mount, right-angle applications with 5 positions at 0.049" (1.25mm) pitch. This connector is classified as obsolete, making identification of functionally equivalent substitute parts essential for ongoing design support and component procurement.

Substiute Parts

DF14-5P-1.25H(25)

Hirose Electric Co LtdIn Stock: 1196DF14-5P-1.25H(25) Datasheet

Current PartRFQ

DF14-5P-1.25H(24)

Hirose Electric Co LtdIn Stock: 1598DF14-5P-1.25H(24) Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the DF14-5P-1.25H(25) is determined by the following critical parameters:

• Connector type (Header)
• Contact type (Male Pin)
• Number of positions (5)
• Mating pitch (0.049" / 1.25mm)
• Mounting configuration (Surface Mount, Right Angle)
• Shrouding style (Shrouded - 4 Wall)
• Electrical ratings (1A current, 150V voltage minimum)
• Operating temperature range (-35°C ~ 85°C)
• Termination method (Solder)
• Fastening type (Push-Pull)

The DF14-5P-1.25H(24) qualifies as a direct substitute, maintaining identical mechanical and electrical specifications within the DF14 series while offering improved availability as an active product.

Parameter Comparison

Engineering Selection Recommendations

The DF14-5P-1.25H(24) is the qualified substitute for the DF14-5P-1.25H(25). Both connectors are classified as obsolete products within the DF14 series. The substitute maintains full electrical and mechanical compatibility, with identical pitch, position count, mounting configuration, and thermal operating range.

The DF14-5P-1.25H(24) offers RoHS compliance certification, whereas the main part does not specify this status. Both parts carry UL94 V-0 flammability rating and unlimited moisture sensitivity level (MSL 1).

Selection between these parts should be based on availability and compliance requirements specific to the application. The substitute part demonstrates superior current inventory status (1582 Pcs vs. 1095 Pcs) and is supplied in tube packaging.

Frequently Asked Questions (FAQ)

Q: Can DF14-5P-1.25H(24) be used as a direct replacement for DF14-5P-1.25H(25)?

A: Yes. Both connectors share identical mechanical dimensions, mating pitch, position configuration, mounting type, and electrical ratings. The connectors are mechanically and electrically interchangeable.

Q: What is the significance of the part number suffix (25) versus (24)?

A: The suffix designates internal manufacturing variants within the DF14 series. Both variants maintain the same external form factor and functional specifications for 5-position, 1.25mm pitch surface mount headers.

Q: Are there compliance differences between these parts?

A: The DF14-5P-1.25H(24) is specified as RoHS Compliant. The DF14-5P-1.25H(25) does not include RoHS compliance documentation. Both parts meet UL94 V-0 flammability requirements.

Q: What packaging formats are available?

A: The DF14-5P-1.25H(25) packaging is not specified. The DF14-5P-1.25H(24) is supplied in tube packaging.

Q: Are both parts still in active production?

A: No. Both the DF14-5P-1.25H(25) and DF14-5P-1.25H(24) are classified as obsolete products. Component selection should prioritize current inventory availability.

Q: What are the critical parameters for substitution within the DF14 series?

A: Substitution requires matching: connector type (Header), contact type (Male Pin), number of positions (5), mating pitch (1.25mm), mounting type (Surface Mount, Right Angle), shrouding configuration (Shrouded - 4 Wall), and electrical ratings (1A minimum, 150V minimum).
