DF13-3032SCFA(05) Equivalent & Substitute Parts

Part Overview

The DF13-3032SCFA(05) is a socket contact connector manufactured by Hirose Electric Co Ltd, designed for 30-32 AWG wire gauge applications with crimp termination. This component is classified as obsolete, necessitating identification of active equivalent parts to maintain design continuity and ensure procurement availability for new production runs and field replacements.

Substiute Parts

DF13-3032SCFA(05)

Hirose Electric Co LtdIn Stock: 1176DF13-3032SCFA(05) Datasheet

Current PartRFQ

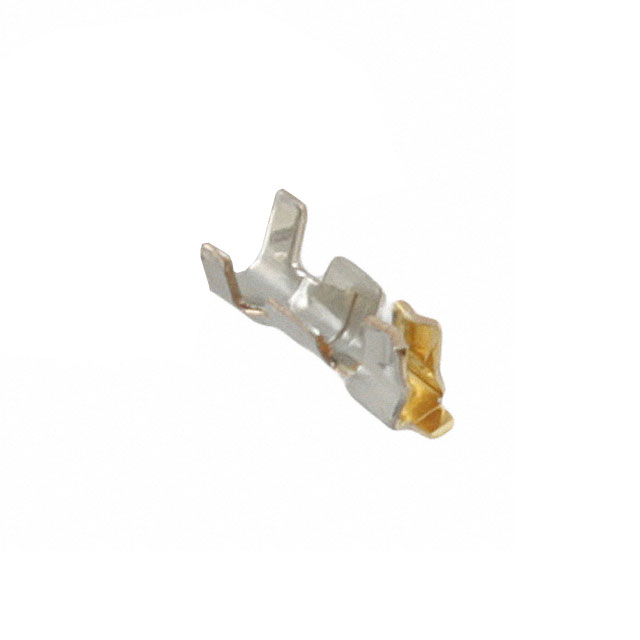

DF13-3032SCFA

Hirose Electric Co LtdIn Stock: 474742DF13-3032SCFA Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the DF13-3032SCFA(05) is determined by strict equivalence across the following critical parameters:

• Series Alignment: Both parts must belong to the DF13 series to ensure mechanical and electrical compatibility within the connector ecosystem
• Contact Type: Socket configuration must be maintained for proper mating with pin contacts
• Termination Method: Crimp termination is required for consistent wire attachment and electrical performance
• Wire Gauge Specification: 30-32 AWG wire gauge range must be preserved to ensure proper contact engagement and current-carrying capacity

The substitute part DF13-3032SCFA meets all these criteria while transitioning from obsolete to active product status.

Parameter Comparison

Engineering Selection Recommendations

The DF13-3032SCFA is the direct substitute for the obsolete DF13-3032SCFA(05). Selection is based on the following engineering criteria:

• Product Status Transition: The substitute part maintains active product status, ensuring long-term availability and supply chain continuity
• Regulatory Compliance: The substitute part is ROHS3 compliant and REACH unaffected, meeting current environmental and regulatory requirements
• Mechanical and Electrical Equivalence: Identical series, contact type, termination method, and wire gauge specifications ensure direct functional replacement without design modification
• Enhanced Specifications: The substitute part includes gold contact finish and defined moisture sensitivity level (MSL 1), providing improved reliability characteristics compared to the obsolete variant

Frequently Asked Questions (FAQ)

Q: Can DF13-3032SCFA be used as a direct replacement for DF13-3032SCFA(05)?

A: Yes. Both parts share identical series designation, socket configuration, crimp termination, and 30-32 AWG wire gauge specification. The substitute part is functionally equivalent and requires no design modification.

Q: What is the significance of the gold contact finish on the substitute part?

A: Gold plating on the contact surface enhances corrosion resistance and electrical conductivity. This represents an improvement over the unspecified contact finish of the obsolete part, contributing to enhanced long-term reliability.

Q: Does the MSL rating of the substitute part affect compatibility?

A: No. The MSL 1 (Unlimited) rating on the substitute part indicates superior moisture handling capability. This does not affect mechanical or electrical compatibility and represents an enhancement for applications requiring moisture resistance.

Q: Are there packaging differences between the main part and substitute?

A: The substitute part is supplied in Cut Tape (CT) packaging, which is standard for high-volume production and component handling. Verify packaging requirements for your specific procurement and assembly processes.

Q: What regulatory certifications apply to the substitute part?

A: The substitute part is ROHS3 compliant and REACH unaffected, meeting current European and international environmental regulations. These certifications apply to new production and do not affect electrical or mechanical performance.
