DF11Z-6DP-2V(27) Equivalent & Substitute Parts

Part Overview

The DF11Z-6DP-2V(27) is a surface mount rectangular connector header manufactured by Hirose Electric Co Ltd, designed for board-to-board or cable applications. This 6-position connector operates at 2A current rating and 250V voltage rating with a 2.00mm pitch configuration. The part is currently classified as obsolete, making identification of suitable substitute components essential for ongoing design support, maintenance, and production continuity.

Substiute Parts

DF11Z-6DP-2V(27)

Hirose Electric Co LtdIn Stock: 781DF11Z-6DP-2V(27) Datasheet

Current PartRFQ

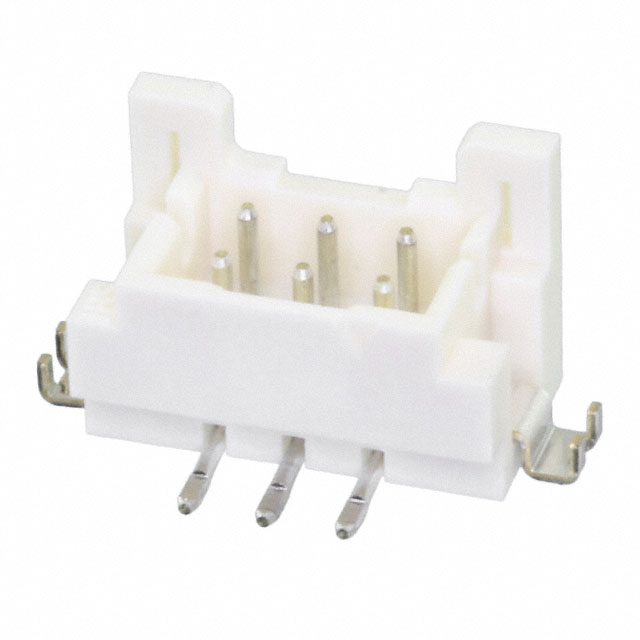

DF11CZ-6DP-2V(27)

Hirose Electric Co LtdIn Stock: 2477DF11CZ-6DP-2V(27) Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the DF11Z-6DP-2V(27) is determined by strict equivalence across the following critical parameters:

Electrical Compatibility:

• Current Rating: 2A
• Voltage Rating: 250V
• Contact Type: Male Pin
• Contact Material: Brass with Tin finish

Mechanical Compatibility:

• Number of Positions: 6
• Number of Rows: 2
• Pitch - Mating: 0.079" (2.00mm)
• Row Spacing - Mating: 0.079" (2.00mm)
• Mounting Type: Surface Mount
• Termination: Solder
• Connector Type: Header
• Shrouding: Shrouded - 4 Wall
• Insulation Material: Polyamide (PA), Nylon

Environmental & Compliance:

• Operating Temperature Range: -30°C ~ 85°C
• Material Flammability Rating: UL94 V-0
• RoHS Compliance

The DF11CZ-6DP-2V(27) meets all these criteria and is classified as an active product, providing direct functional and mechanical interchangeability with the obsolete DF11Z-6DP-2V(27).

Parameter Comparison

Engineering Selection Recommendations

The DF11CZ-6DP-2V(27) is the direct substitute for the obsolete DF11Z-6DP-2V(27). Both components share identical electrical ratings, mechanical dimensions, and environmental specifications within the DF11 series from Hirose Electric Co Ltd.

Product Status Consideration: The DF11Z-6DP-2V(27) is classified as obsolete, while the DF11CZ-6DP-2V(27) maintains active product status with confirmed inventory availability (2400 pcs). This transition ensures long-term supply chain reliability and continued manufacturing support.

Compliance Advantage: The substitute part carries ROHS3 compliance certification, representing an enhanced regulatory position compared to the standard RoHS compliance of the original part. Both components maintain UL94 V-0 flammability rating and unlimited moisture sensitivity level (MSL 1).

Packaging Difference: The substitute is supplied in Tape & Reel (TR) packaging, which is standard for high-volume surface mount assembly operations and provides improved handling efficiency compared to alternative packaging formats.

Frequently Asked Questions (FAQ)

Q: Are the DF11Z-6DP-2V(27) and DF11CZ-6DP-2V(27) electrically interchangeable?

A: Yes. Both components have identical current ratings (2A), voltage ratings (250V), contact materials (brass with tin finish), and operating temperature ranges (-30°C ~ 85°C). They are electrically equivalent for all applications within these specifications.

Q: Are the mechanical dimensions identical?

A: Yes. Both parts share the same pitch (2.00mm), row spacing (2.00mm), number of positions (6 in 2 rows), insulation height (7.19mm), and mated stacking heights (8.2mm, 8.45mm, 9.55mm). They are mechanically interchangeable without PCB redesign.

Q: What is the primary reason for substitution?

A: The DF11Z-6DP-2V(27) is classified as obsolete. The DF11CZ-6DP-2V(27) is an active product with confirmed inventory and ongoing manufacturing support, ensuring supply chain continuity and design longevity.

Q: Does the packaging difference affect compatibility?

A: No. Tape & Reel (TR) packaging of the substitute part is a supply format advantage for surface mount assembly. The component itself remains functionally and mechanically identical. Packaging does not affect PCB-level compatibility.

Q: Are there compliance differences between the two parts?

A: The substitute carries ROHS3 compliance, which represents an enhanced regulatory certification compared to the standard RoHS compliance of the original part. Both maintain UL94 V-0 flammability rating. The upgrade in compliance status presents no compatibility issues.

Q: Can the DF11CZ-6DP-2V(27) be used in existing designs without modification?

A: Yes. The substitute part is a direct replacement with no design modifications required. All electrical, mechanical, and environmental parameters are equivalent or superior to the original part.
