DF11-8DP-2DSA(08) Equivalent & Substitute Parts

Part Overview

The DF11-8DP-2DSA(08) is a rectangular connector header manufactured by Hirose Electric Co Ltd, designed for through-hole mounting in board-to-board or cable applications. This 8-position, 2-row connector operates at 2A current rating and 250V voltage rating with a 0.079" (2.00mm) pitch configuration. The part is active in production status and fully RoHS3 compliant. Equivalent and substitute parts are identified when component availability is limited, supply chain disruptions occur, or design flexibility permits cross-manufacturer sourcing while maintaining electrical and mechanical compatibility.

Key Parameters

Parameter	Value
Connector Type	Header
Contact Type	Male Pin
Number of Positions	8
Number of Rows	2
Pitch - Mating	0.079" (2.00mm)
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Through Hole
Termination	Solder
Shrouding	Shrouded - 4 Wall
Fastening Type	Detent Lock
Contact Shape	Square
Current Rating	2A
Voltage Rating	250V
Operating Temperature Range	-30°C ~ 85°C
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution eligibility for the DF11-8DP-2DSA(08) is determined by strict alignment of the following critical parameters:

Connector Configuration: 8-position, 2-row header with 0.079" (2.00mm) pitch and row spacing
Mounting and Termination: Through-hole solder termination with detent lock fastening
Electrical Ratings: Current and voltage ratings must meet or exceed the original specification
Physical Compatibility: Shrouding type (4-wall), contact shape (square), and mating interface dimensions
Compliance: RoHS3 compliance and UL94 V-0 flammability rating
Regulatory Status: REACH unaffected and EAR99 classification

The substitute parts listed below satisfy these criteria across multiple manufacturers, providing design flexibility while maintaining functional equivalence in board-to-board and cable connection applications.

Parameter Comparison

Parameter	DF11-8DP-2DSA(08) (Hirose)	DF11-8DP-2DSA(24) (Hirose)	1470109-8 (TE Connectivity)	B8B-PHDSS(LF)(SN) (JST)	SWR204-NRTN-D04-ST-GA (Sullins)
Manufacturer	Hirose Electric Co Ltd	Hirose Electric Co Ltd	TE Connectivity AMP Connectors	JST Sales America Inc.	Sullins Connector Solutions
Series	DF11	DF11	AMPMODU	PHD	SWR204
Connector Type	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Number of Positions	8	8	8	8	8
Number of Rows	2	2	2	2	2
Pitch - Mating	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Row Spacing - Mating	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall
Fastening Type	Detent Lock	Detent Lock	Detent Lock	Detent Lock	Detent Lock
Contact Shape	Square	Square	Square	Square	Square
Contact Material	Brass	Brass	Brass	Copper Alloy	Brass
Contact Finish - Mating	Tin	Tin	Tin	Tin	Tin
Contact Finish - Post	Tin	Tin	Tin	Tin	Tin
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA66), Nylon 6/6	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA66), Nylon 6/6
Current Rating	2A	2A	3A	3A	3A per Contact
Voltage Rating	250V	250V	100VDC	250V	50V
Operating Temperature Range	-30°C ~ 85°C	-30°C ~ 85°C	-25°C ~ 85°C	-25°C ~ 85°C	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
Product Status	Active	Active	Active	Active	Active

Engineering Selection Recommendations

All listed substitute parts maintain active production status and full RoHS3 compliance with UL94 V-0 flammability certification. Selection between the DF11-8DP-2DSA(08) and its substitutes is based on the following engineering considerations:

DF11-8DP-2DSA(24) (Hirose Electric Co Ltd) is the manufacturer-recommended equivalent, differing only in packaging format (tube versus bulk). This part is functionally identical to the original specification and represents the primary substitution path within the Hirose DF11 series.

1470109-8 (TE Connectivity AMP Connectors) provides equivalent mechanical and electrical compatibility with higher current rating (3A) and operates within the -25°C to 85°C temperature range. Voltage rating is specified at 100VDC, which is lower than the original 250V specification and requires application-level evaluation.

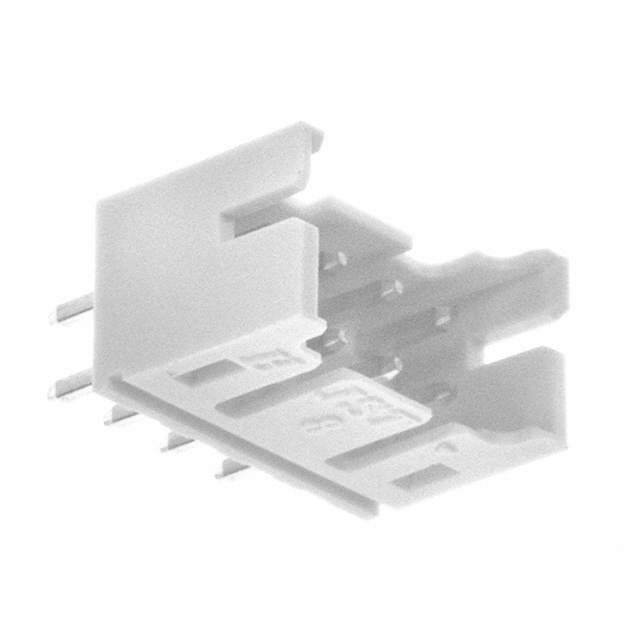

B8B-PHDSS(LF)(SN) (JST Sales America Inc.) offers equivalent mechanical compatibility with higher current rating (3A) and maintains the 250V voltage specification. Operating temperature range is -25°C to 85°C. Insulation material includes glass-filled polyamide, providing enhanced mechanical properties.

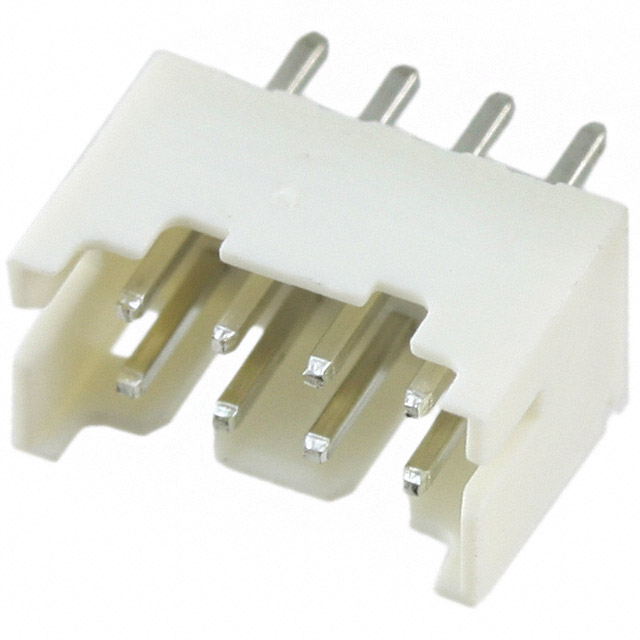

SWR204-NRTN-D04-ST-GA (Sullins Connector Solutions) provides mechanical compatibility with higher current rating (3A per contact) but specifies a 50V voltage rating, which is significantly lower than the original 250V specification and requires application-level evaluation for voltage-sensitive circuits.

Frequently Asked Questions (FAQ)

Q: Can DF11-8DP-2DSA(24) be used as a direct replacement for DF11-8DP-2DSA(08)?

A: Yes. Both parts are manufactured by Hirose Electric Co Ltd within the DF11 series and share identical electrical and mechanical specifications. The difference is packaging format: DF11-8DP-2DSA(08) is supplied in bulk, while DF11-8DP-2DSA(24) is supplied in tube packaging. Functional performance is equivalent.

Q: What are the key differences between Hirose DF11 and TE Connectivity 1470109-8 connectors?

A: Both connectors share identical pitch (0.079"), position count (8), row configuration (2), and mounting method (through-hole solder). The 1470109-8 provides higher current rating (3A versus 2A) but operates at 100VDC maximum voltage compared to the DF11's 250V rating. Operating temperature range is -25°C to 85°C versus -30°C to 85°C for the DF11. Application voltage requirements determine suitability.

Q: Are JST B8B-PHDSS(LF)(SN) and Sullins SWR204-NRTN-D04-ST-GA connectors suitable for high-voltage applications?

A: The JST B8B-PHDSS(LF)(SN) maintains 250V voltage rating equivalent to the original DF11-8DP-2DSA(08). The Sullins SWR204-NRTN-D04-ST-GA is rated for 50V maximum, which is insufficient for applications requiring 250V operation. Voltage specification must be evaluated against circuit requirements.

Q: What is the significance of the -30°C operating temperature range on the DF11-8DP-2DSA(08)?

A: The DF11-8DP-2DSA(08) operates from -30°C to 85°C, providing a 5-degree lower minimum temperature limit compared to substitute parts from TE Connectivity, JST, and Sullins, which operate from -25°C to 85°C. Applications requiring operation below -25°C require the original DF11 specification or equivalent Hirose parts.

Q: Can substitute connectors with higher current ratings (3A) be used in circuits designed for 2A operation?

A: Yes. Higher current ratings provide design margin and do not create compatibility issues in circuits designed for lower current operation. The connector will operate safely within the original 2A specification. However, the lower voltage ratings of certain substitutes (1470109-8 at 100VDC and SWR204-NRTN-D04-ST-GA at 50V) must be evaluated against circuit voltage requirements.

Q: What packaging considerations apply when selecting between bulk and tube formats?

A: DF11-8DP-2DSA(08) is supplied in bulk packaging, while DF11-8DP-2DSA(24) is supplied in tube packaging. Tube packaging provides better protection during storage and handling but may incur higher per-unit cost for small quantities. Bulk packaging is suitable for high-volume manufacturing environments with proper component handling procedures. Electrical and mechanical performance is identical.
