DF11-4DEP-2C(16) Equivalent & Substitute Parts

Part Overview

The DF11-4DEP-2C(16) is a rectangular connector housing manufactured by Hirose Electric Co Ltd, classified as a 4-position connector with 2.00mm pitch. This part is currently listed as obsolete, which necessitates identification of active equivalent components for ongoing applications and new designs. The substitute part maintains functional compatibility through matching electrical and mechanical specifications while offering current availability and active product status.

Substiute Parts

DF11-4DEP-2C(16)

Hirose Electric Co LtdIn Stock: 1027DF11-4DEP-2C(16) Datasheet

Current PartRFQ

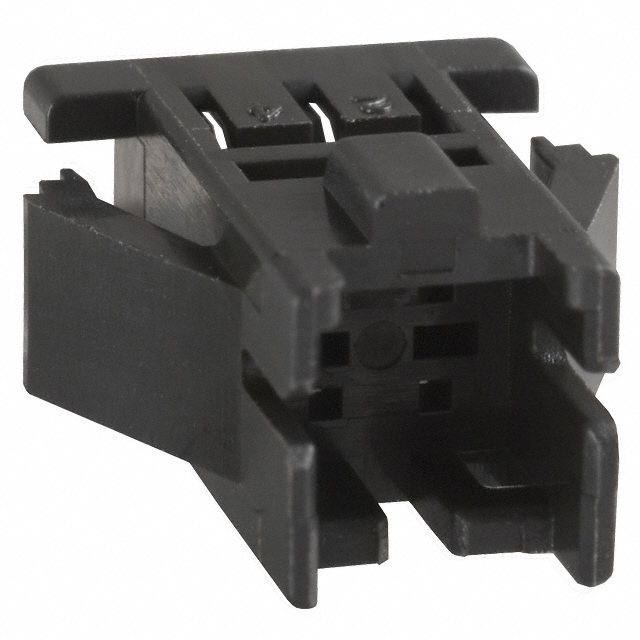

DF11-4DEP-2C

Hirose Electric Co LtdIn Stock: 379040DF11-4DEP-2C Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

The DF11-4DEP-2C serves as the direct substitute for the obsolete DF11-4DEP-2C(16). Substitution is based on the following critical parameters that ensure functional equivalence:

• Manufacturer: Both parts are manufactured by Hirose Electric Co Ltd
• Base Product Series: Both belong to the DF11 series
• Number of Positions: Both feature 4-position configuration
• Pitch Specification: Both maintain 0.079" (2.00mm) pitch
• Connector Type: Both are plug housings
• Contact Type: Both utilize male pin contacts
• Mounting Type: Both support panel mount, snap-in installation
• Contact Termination: Both employ crimp termination

Parameter Comparison

Engineering Selection Recommendations

The DF11-4DEP-2C is the appropriate selection for applications currently specified with the DF11-4DEP-2C(16). The substitute part maintains identical electrical and mechanical specifications across all critical parameters. The active product status of DF11-4DEP-2C ensures current manufacturing support and supply chain availability. The substitute part carries ROHS3 compliance and REACH unaffected status, meeting contemporary regulatory requirements. MSL rating of 1 indicates unlimited moisture sensitivity protection, suitable for standard storage and handling conditions.

Frequently Asked Questions (FAQ)

Q: Are DF11-4DEP-2C(16) and DF11-4DEP-2C electrically identical?

A: Yes. Both parts share identical electrical specifications including 4-position configuration, 2.00mm pitch, male pin contact type, and crimp termination. They are functionally equivalent for circuit applications.

Q: Can DF11-4DEP-2C be used as a direct replacement in existing designs?

A: Yes. The substitute part maintains identical mechanical dimensions, mounting type (panel mount, snap-in), and row spacing. No PCB or assembly modifications are required.

Q: What is the significance of the product status change from obsolete to active?

A: The active status of DF11-4DEP-2C ensures continued manufacturing, quality assurance, and supply availability. Obsolete parts face discontinuation risk and potential supply constraints.

Q: Are there compliance differences between the two parts?

A: The substitute part DF11-4DEP-2C includes ROHS3 compliance and REACH unaffected certification. These certifications reflect current regulatory standards and are applicable to new designs and procurement.

Q: Does the MSL rating difference affect compatibility?

A: No. The MSL 1 rating of the substitute part indicates superior moisture protection compared to the obsolete part's not applicable rating. This represents an improvement for storage and handling conditions.

Q: Are contacts included with the DF11-4DEP-2C housing?

A: No. The housing is supplied without contacts. Contacts must be procured separately and crimped into the housing according to Hirose specifications.
