DF11-24DP-2V(57) Equivalent & Substitute Parts

Part Overview

The DF11-24DP-2V(57) is a rectangular connector header manufactured by Hirose Electric Co Ltd, designed for surface mount applications with 24 positions arranged in 2 rows at 2.00mm pitch. This component is classified as obsolete, making identification of active equivalent parts essential for ongoing production and design continuity. The substitute part DF11C-24DP-2V(57) maintains identical electrical and mechanical specifications while offering active product status and improved manufacturing availability.

Substiute Parts

DF11-24DP-2V(57)

Hirose Electric Co LtdIn Stock: 1615DF11-24DP-2V(57) Datasheet

Current PartRFQ

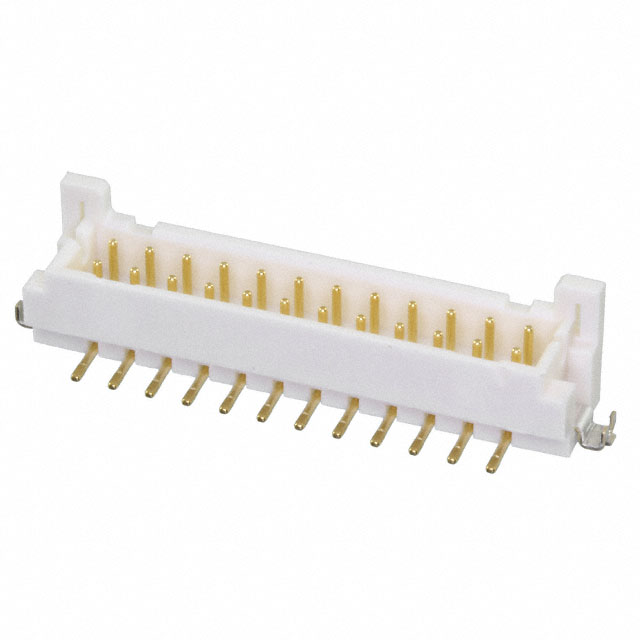

DF11C-24DP-2V(57)

Hirose Electric Co LtdIn Stock: 1239DF11C-24DP-2V(57) Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the DF11-24DP-2V(57) with DF11C-24DP-2V(57) is based on strict equivalence across all critical electrical and mechanical parameters. Both parts share identical specifications for:

Electrical characteristics: 2A current rating, 250V voltage rating, and gold-plated brass contacts with circular geometry. Mechanical dimensions: 24-position, 2-row configuration with 2.00mm pitch, 2.00mm row spacing, 7.19mm insulation height, and identical mated stacking heights of 8.2mm, 8.45mm, and 9.55mm. Environmental and compliance ratings: -30°C to 85°C operating temperature range, UL94 V-0 flammability rating, RoHS compliance, and MSL 1 moisture sensitivity level.

The primary distinction is product status and packaging format. The DF11-24DP-2V(57) is obsolete with standard packaging, while DF11C-24DP-2V(57) is active with Tape & Reel packaging and includes Pick and Place features for automated assembly.

Parameter Comparison

Engineering Selection Recommendations

The DF11C-24DP-2V(57) is the direct active equivalent for the obsolete DF11-24DP-2V(57). Both parts maintain identical electrical performance, mechanical dimensions, and environmental compliance specifications. Selection of DF11C-24DP-2V(57) is supported by its active product status, ensuring long-term availability and manufacturing continuity. The Tape & Reel packaging format of DF11C-24DP-2V(57) provides advantages for high-volume automated assembly operations through Pick and Place compatibility. Both parts satisfy RoHS compliance requirements and UL94 V-0 flammability standards, maintaining equivalent safety and environmental certifications.

Frequently Asked Questions (FAQ)

Q: Are DF11-24DP-2V(57) and DF11C-24DP-2V(57) electrically identical?

A: Yes. Both parts have identical electrical specifications: 2A current rating, 250V voltage rating, gold-plated brass contacts, and -30°C to 85°C operating temperature range.

Q: What is the difference between these two part numbers?

A: The primary differences are product status and packaging. DF11-24DP-2V(57) is obsolete with standard packaging, while DF11C-24DP-2V(57) is active with Tape & Reel packaging and Pick and Place features for automated assembly.

Q: Can DF11C-24DP-2V(57) be used as a direct replacement in existing designs?

A: Yes. The DF11C-24DP-2V(57) maintains identical mechanical dimensions, pitch, row spacing, insulation height, and mated stacking heights, enabling direct substitution in existing PCB layouts and mating connector applications.

Q: Are both parts RoHS compliant?

A: Yes. Both DF11-24DP-2V(57) and DF11C-24DP-2V(57) are RoHS compliant with UL94 V-0 flammability ratings.

Q: What is the moisture sensitivity level for these connectors?

A: Both parts have MSL 1 (Unlimited) moisture sensitivity level, indicating no special moisture control requirements during storage or handling.

Q: Does packaging format affect connector performance?

A: No. Tape & Reel packaging in DF11C-24DP-2V(57) is a manufacturing and logistics format that does not affect electrical or mechanical performance compared to standard packaging in DF11-24DP-2V(57).
