DF11-10DP-2DSA(80) Equivalent & Substitute Parts

Part Overview

The DF11-10DP-2DSA(80) is a rectangular connector header manufactured by Hirose Electric Co Ltd, designed for through-hole mounting in board-to-board or cable applications. This connector features 10 positions arranged in 2 rows with 0.079" (2.00mm) pitch and is rated for 2A at 250V. The part is currently listed as obsolete, making identification of functionally equivalent alternatives necessary for ongoing design support and procurement.

Key Parameters

Parameter	Value
Connector Type	Header
Contact Type	Male Pin
Number of Positions	10
Number of Rows	2
Pitch - Mating	0.079" (2.00mm)
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Through Hole
Shrouding	Shrouded - 4 Wall
Current Rating	2A
Voltage Rating	250V
Operating Temperature	-30°C ~ 85°C
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the DF11-10DP-2DSA(80) is determined by the following critical parameters:

Position and Row Configuration: 10 positions in 2 rows
Pitch Specification: 0.079" (2.00mm) mating pitch and row spacing
Connector Type and Contact Type: Header with male pins
Mounting Method: Through-hole solder termination
Shrouding Configuration: Shrouded 4-wall design
Electrical Ratings: Minimum 2A current capacity and 250V voltage rating
Fastening Type: Detent lock mechanism
Material Compliance: UL94 V-0 flammability rating

The identified substitutes maintain these core parameters while differing in secondary attributes such as insulation color, product status, and packaging format.

Parameter Comparison

Parameter	DF11-10DP-2DSA(80)	DF11-10DP-2DSA(08)	SWR204-NRTN-D05-ST-GA
Manufacturer	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Sullins Connector Solutions
Product Status	Obsolete	Active	Active
Number of Positions	10	10	10
Number of Rows	2	2	2
Pitch - Mating	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Row Spacing - Mating	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Connector Type	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin
Mounting Type	Through Hole	Through Hole	Through Hole
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall
Fastening Type	Detent Lock	Detent Lock	Detent Lock
Current Rating	2A	2A	3A per Contact
Voltage Rating	250V	250V	50V
Operating Temperature	-30°C ~ 85°C	-30°C ~ 85°C	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0
RoHS Status	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant
Insulation Color	White	Black	Gray
Inventory Status	1065 Pcs New Original In Stock	1450 Pcs New Original In Stock	13903 Pcs New Original In Stock

Engineering Selection Recommendations

DF11-10DP-2DSA(08) is the primary substitute for the obsolete DF11-10DP-2DSA(80). Both parts are manufactured by Hirose Electric Co Ltd and maintain identical electrical and mechanical specifications. The DF11-10DP-2DSA(08) is currently in active production status with higher inventory availability. The transition from RoHS Compliant to ROHS3 Compliant status reflects current regulatory alignment. The insulation color difference (black versus white) does not affect functional compatibility.

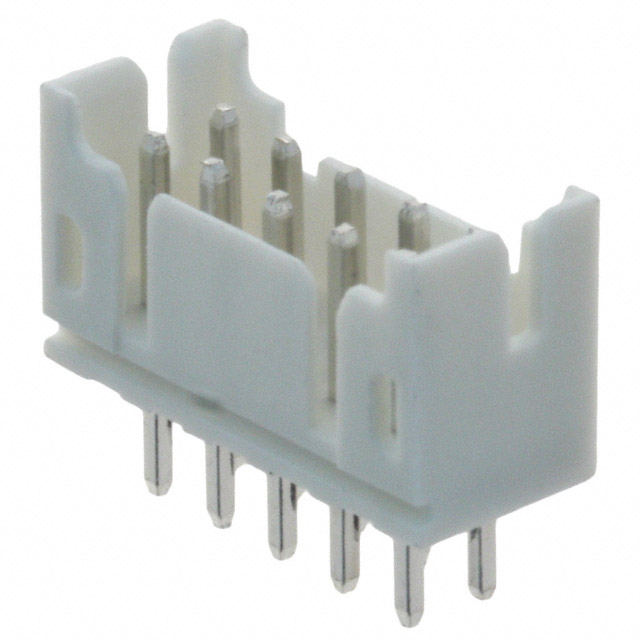

SWR204-NRTN-D05-ST-GA manufactured by Sullins Connector Solutions is a secondary substitute option. This part maintains the same position count, pitch, row spacing, mounting type, and shrouding configuration. However, the voltage rating of 50V is significantly lower than the original 250V specification, and the operating temperature minimum is -25°C compared to -30°C. Selection of this part requires verification that the application voltage requirements do not exceed 50V and that the reduced temperature range is acceptable.

Frequently Asked Questions (FAQ)

Q: Can DF11-10DP-2DSA(08) be used as a direct replacement for DF11-10DP-2DSA(80)?

A: Yes. Both parts share identical connector type, position configuration, pitch, row spacing, mounting method, shrouding, current rating, and voltage rating. The DF11-10DP-2DSA(08) is the recommended substitute due to active production status and equivalent electrical and mechanical performance.

Q: What are the limitations of using SWR204-NRTN-D05-ST-GA as a substitute?

A: The SWR204-NRTN-D05-ST-GA has a maximum voltage rating of 50V, which is lower than the original 250V specification. Applications requiring voltages above 50V cannot use this part. The minimum operating temperature is -25°C instead of -30°C. Verify application requirements before selection.

Q: Does insulation color affect connector compatibility?

A: Insulation color is a visual identifier and does not affect electrical or mechanical compatibility. The white, black, and gray insulation colors across the three parts do not impact functional performance or mating characteristics.

Q: Are there packaging differences between the substitute parts?

A: The DF11-10DP-2DSA(80) packaging is listed as unspecified. The DF11-10DP-2DSA(08) is supplied in bulk packaging. The SWR204-NRTN-D05-ST-GA is also supplied in bulk packaging. Packaging format does not affect connector performance.

Q: What compliance certifications apply to these parts?

A: All three parts meet UL94 V-0 material flammability requirements. The DF11-10DP-2DSA(80) is RoHS Compliant. Both DF11-10DP-2DSA(08) and SWR204-NRTN-D05-ST-GA are ROHS3 Compliant. The SWR204-NRTN-D05-ST-GA is REACH Unaffected.
