DEML09S300 D-Sub 9-Position Receptacle Connector Equivalent & Substitute Parts
Part Overview

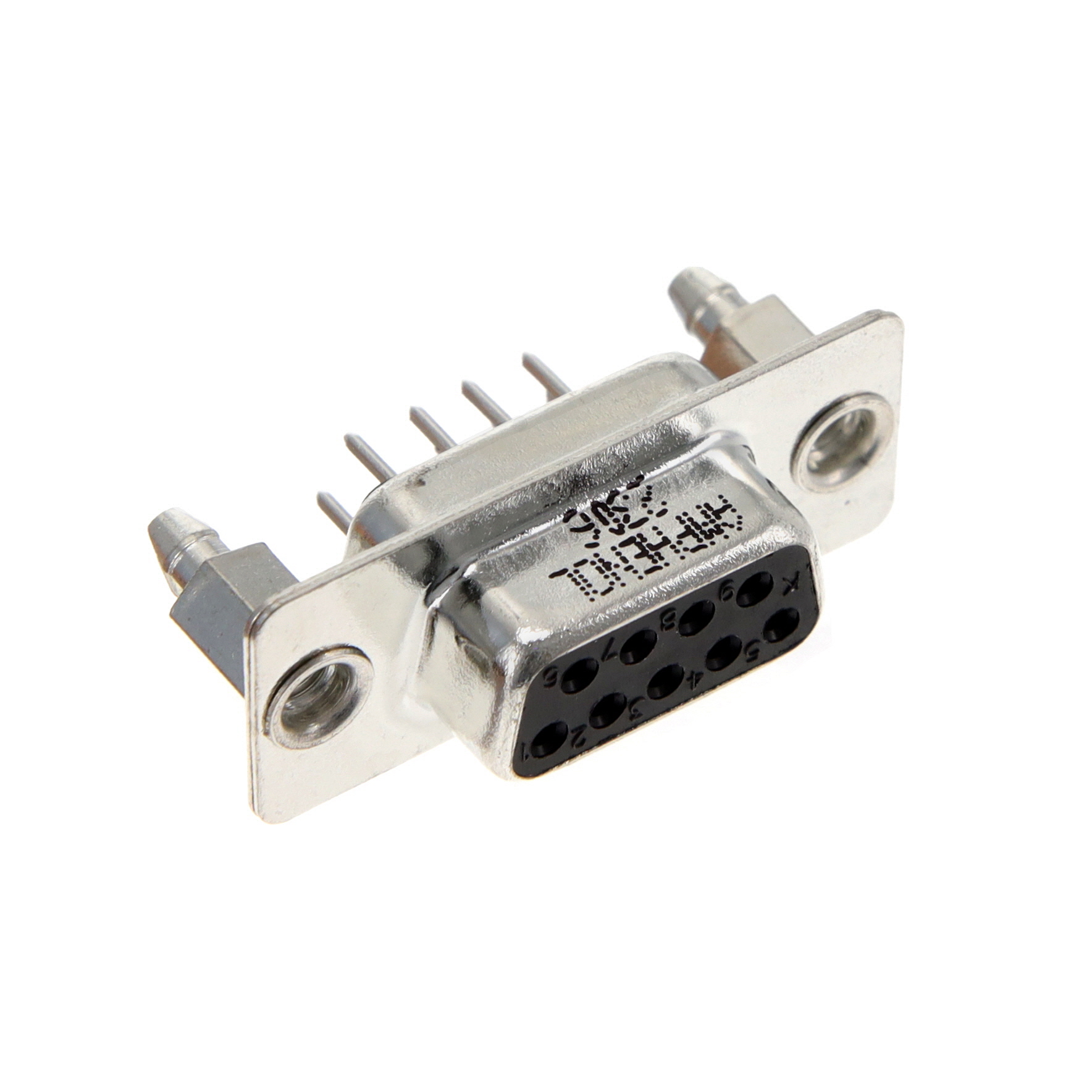

The DEML09S300 is a 9-position D-Sub receptacle connector manufactured by Amphenol ICC (FCI) in the DM HE501 series. This through-hole solder-terminated connector features female sockets with a DE/E shell size (1) and is designed for signal applications requiring 7.5A current capacity at 300V. The part is active in production with 966 units currently in stock.
Equivalent and substitute parts are identified to support design flexibility, supply chain continuity, and application-specific requirements such as RoHS compliance, operating temperature ranges, and contact finish specifications.
Substiute Parts
Key Parameters
| Parameter | DEML09S300 Specification |
|---|---|
| Connector Type | D-Sub Receptacle, Female Sockets |
| Number of Positions | 9 |
| Shell Size / Layout | 1 (DE, E) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Current Rating | 7.5A |
| Voltage Rating | 300V |
| Operating Temperature | -55°C to 125°C |
| Shell Material / Finish | Steel, Yellow Cadmium Plated |
| Contact Finish | Gold |
| Flange Feature | Board Side (M3) |
| Dielectric Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Flammability Rating | UL94 V-0 |
| RoHS Status | RoHS non-compliant |
| MSL Rating | 1 (Unlimited) |
Substitute Part Grouping Explanation
Substitute parts are grouped based on compatibility with the core electrical and mechanical parameters of the DEML09S300. The primary substitution criteria are:
Mandatory Matching Parameters:
- Connector type: D-Sub receptacle, female sockets
- Number of positions: 9
- Shell size / layout: 1 (DE, E)
- Mounting type: Through hole
- Termination method: Solder
- Flammability rating: UL94 V-0
Allowable Variations:
- Current rating: 6.0A to 7.5A (within acceptable operating margins)
- Voltage rating: 100V to 300V (application-dependent selection)
- Operating temperature: -55°C to 125°C minimum range
- Shell finish: Steel with various plating options (cadmium, tin)
- Contact finish: Gold or unspecified
- Flange feature: Board side or mating side configurations
- Dielectric material: Thermoplastic, PCT, or PBT variants
- Contact material: Phosphor bronze or copper alloy
- RoHS compliance: Both compliant and non-compliant parts listed
Substitute parts from HARTING and TE Connectivity meet the core functional requirements while offering different compliance profiles, contact finishes, and flange configurations for specific application needs.
Parameter Comparison
| Part Number | Manufacturer | Connector Type | Positions | Shell Size | Current (A) | Voltage (V) | Temp Range (°C) | Shell Finish | Contact Finish | Flange Type | RoHS Status | Inventory |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DEML09S300 | Amphenol ICC (FCI) | Receptacle, Female | 9 | 1 (DE, E) | 7.5 | 300 | -55 to 125 | Steel, Yellow Cadmium | Gold | Board Side (M3) | Non-compliant | 966 |
| 09641127230 | HARTING | Receptacle, Female | 9 | 1 (DE, E) | 7.5 | 100 | -20 to 125 | Steel | Unspecified | Housing/Shell (Unthreaded) | ROHS3 Compliant | 1024 |
| 09641127235 | HARTING | Receptacle, Female | 9 | 1 (DE, E) | 7.5 | 100 | -20 to 125 | Steel, Tin Plated | Unspecified | Board Side (4-40) | ROHS3 Compliant | 1362 |
| 09661116503 | HARTING | Receptacle, Female | 9 | 1 (DE, E) | 6.5 | Unspecified | -55 to 125 | Steel | Unspecified | Mating Side, Female Screwlock (4-40) | ROHS3 Compliant | 992 |
| 09661117503 | HARTING | Receptacle, Female | 9 | 1 (DE, E) | 6.5 | Unspecified | -55 to 125 | Steel | Unspecified | Mating Side, Female Screwlock (4-40) | ROHS3 Compliant | 1148 |
| 09661556513 | HARTING | Receptacle, Female | 9 | 1 (DE, E) | 6.5 | Unspecified | -55 to 125 | Steel | Gold | Mating Side, Female Screwlock (4-40) | ROHS3 Compliant | 1873 |
| 1-338313-2 | TE Connectivity AMP | Receptacle, Female | 9 | 1 (DE, E) | 6.0 | Unspecified | -55 to 105 | Steel, Tin Plated | Gold | Housing/Shell (4-40) | ROHS3 Compliant | 2800 |
| 1-5747150-3 | TE Connectivity AMP | Receptacle, Female | 9 | 1 (DE, E) | 6.0 | 125 | -55 to 105 | Steel, Tin Plated | Gold (Flash) | Mating Side, Female Screwlock (4-40) | ROHS3 Compliant | 7581 |
| 1-5747150-4 | TE Connectivity AMP | Receptacle, Female | 9 | 1 (DE, E) | 6.0 | 125 | -55 to 105 | Steel, Tin Plated | Gold (30.0µin) | Mating Side, Female Screwlock (4-40) | RoHS Compliant | 1757 |
| 1-5747150-6 | TE Connectivity AMP | Receptacle, Female | 9 | 1 (DE, E) | 6.0 | 125 | -55 to 105 | Steel, Tin Plated | Gold (30.0µin) | Mating Side, Female Screwlock (4-40) | RoHS Compliant | 3384 |
| 1-747150-4 | TE Connectivity AMP | Receptacle, Female | 9 | 1 (DE, E) | 6.0 | 125 | -55 to 105 | Steel, Tin Plated | Gold (30.0µin) | Mating Side, Female Screwlock (4-40) | Non-compliant | 1899 |
Engineering Selection Recommendations
For RoHS3 Compliance Requirements: HARTING 09641127230, 09641127235, 09661116503, 09661117503, and 09661556513 are ROHS3 compliant. TE Connectivity 1-338313-2, 1-5747150-3, 1-5747150-4, and 1-5747150-6 are RoHS compliant. These parts are suitable for applications requiring regulatory compliance with current environmental directives.
For Extended Operating Temperature Range (-55°C to 125°C): DEML09S300, HARTING 09661116503, 09661117503, and 09661556513 support the full -55°C to 125°C range. TE Connectivity parts are limited to -55°C to 105°C. Select HARTING variants for applications requiring the extended upper temperature limit.
For Higher Voltage Applications (300V): DEML09S300 is rated for 300V. HARTING 09641127230 and 09641127235 are rated for 100V. TE Connectivity parts are rated for 125V. Voltage rating selection depends on circuit requirements.
For Higher Current Capacity (7.5A): DEML09S300 and HARTING 09641127230 and 09641127235 support 7.5A. HARTING 09661116503, 09661117503, 09661556513, and all TE Connectivity variants are rated for 6.0A to 6.5A. Current rating selection depends on load requirements.
For Gold Contact Finish: DEML09S300, HARTING 09661556513, and all TE Connectivity variants (1-338313-2, 1-5747150-3, 1-5747150-4, 1-5747150-6, 1-747150-4) feature gold contact finish for enhanced corrosion resistance and signal integrity.
For Board-Side Flange Configuration: DEML09S300 (M3), HARTING 09641127235 (4-40), and TE Connectivity 1-338313-2 (4-40) feature board-side flanges. HARTING 09641127230 uses an unthreaded housing/shell configuration. HARTING 09661116503, 09661117503, 09661556513, and remaining TE Connectivity parts use mating-side female screwlock configurations.
Frequently Asked Questions (FAQ)
Q: Can HARTING 09641127235 directly replace DEML09S300? A: HARTING 09641127235 matches the core functional parameters: 9-position D-Sub receptacle, female sockets, DE/E shell size, through-hole solder termination, and board-side flange. However, it is rated for 100V versus 300V, and operates at -20°C to 125°C versus -55°C to 125°C. Substitution is valid only if application voltage and temperature requirements do not exceed these limits. HARTING 09641127235 is ROHS3 compliant, whereas DEML09S300 is not.
Q: What is the difference between HARTING mating-side screwlock variants (09661116503, 09661117503, 09661556513)? A: All three are 9-position D-Sub receptacles with mating-side female screwlock flanges (4-40). 09661116503 and 09661117503 have unspecified contact finish; 09661556513 features gold contact finish. 09661556513 includes a board lock feature. All three support -55°C to 125°C and are ROHS3 compliant. Selection depends on contact finish and board lock requirements.
Q: Are TE Connectivity AMPLIMITE HD-20 series parts suitable for -55°C to 125°C applications? A: TE Connectivity AMPLIMITE HD-20 series (1-5747150-3, 1-5747150-4, 1-5747150-6, 1-747150-4) are rated for -55°C to 105°C, not 125°C. They are not suitable for applications requiring operation above 105°C. HARTING variants and DEML09S300 support the full -55°C to 125°C range.
Q: What packaging options are available? A: DEML09S300 is supplied in trays (966 units in stock). HARTING parts are supplied in bulk packaging (1024 to 1873 units in stock). TE Connectivity 1-338313-2 is supplied in trays (2800 units). TE Connectivity 1-5747150-3, 1-5747150-4, and 1-5747150-6 are supplied in tubes (1757 to 7581 units). TE Connectivity 1-747150-4 is supplied in bulk (1899 units).
Q: Which substitute parts are RoHS compliant? A: HARTING 09641127230, 09641127235, 09661116503, 09661117503, and 09661556513 are ROHS3 compliant. TE Connectivity 1-338313-2, 1-5747150-3, 1-5747150-4, and 1-5747150-6 are RoHS compliant. DEML09S300 and TE Connectivity 1-747150-4 are RoHS non-compliant.
Q: What is the current rating difference between DEML09S300 and substitute parts? A: DEML09S300 is rated for 7.5A. HARTING 09641127230 and 09641127235 are rated for 7.5A. HARTING 09661116503, 09661117503, and 09661556513 are rated for 6.5A. All TE Connectivity variants are rated for 6.0A. Current rating selection must match or exceed application requirements.
Q: Can I use a 100V-rated part in a 300V circuit? A: No. Voltage rating is a maximum specification. Using a part rated for 100V in a 300V circuit creates an electrical safety hazard and violates design specifications. Select parts with voltage ratings equal to or greater than circuit voltage requirements.
