DCP-HDMIT-SC HDMI Receptacle Connector Equivalent & Substitute Parts

Part Overview

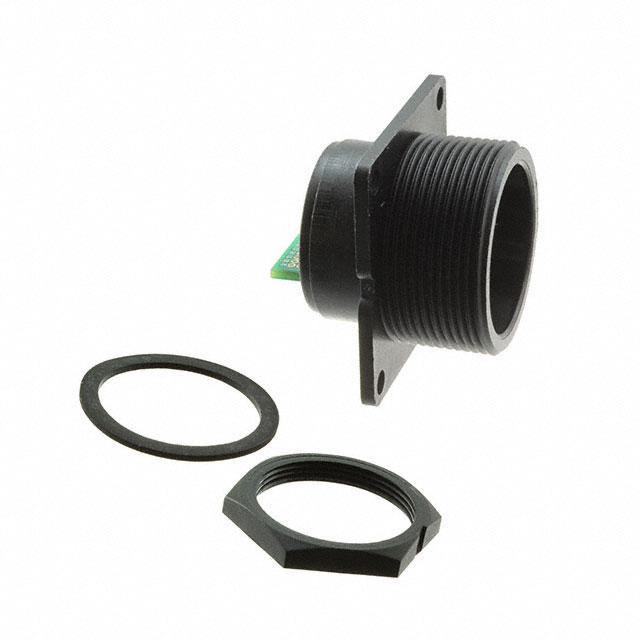

The DCP-HDMIT-SC is a 19-position HDMI receptacle connector manufactured by Conxall/Switchcraft, designed for panel mount applications with circular threaded coupling. This connector is classified as obsolete, making identification of active equivalent parts essential for ongoing system support and new design implementations. The part features IP67/IP68 ingress protection suitable for harsh environmental conditions and operates across a temperature range of -20°C to 80°C.

Substiute Parts

DCP-HDMIT-SC

Conxall/SwitchcraftIn Stock: 907DCP-HDMIT-SC Datasheet

Current PartRFQ

DCP-HD19T-SC

Conxall/SwitchcraftIn Stock: 770DCP-HD19T-SC Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the DCP-HDMIT-SC is determined by strict equivalence across the following critical parameters:

• Connector Type: HDMI
• Number of Contacts: 19 positions
• Gender: Receptacle
• Mounting Type: Panel Mount with Flange
• Termination: PC Board
• Ingress Protection: IP67/IP68 rating
• Operating Temperature Range: -20°C ~ 80°C
• Current Rating: 0.5A
• Contact Finish: Gold plating
• Shell Material: Copper Alloy
• RoHS Compliance: ROHS3 Compliant

The DCP-HD19T-SC meets all substitution criteria as an active product within the DATA-CON-X® DCP series, providing functional and electrical equivalence for the obsolete DCP-HDMIT-SC.

Parameter Comparison

Engineering Selection Recommendations

The DCP-HD19T-SC is the direct equivalent for the obsolete DCP-HDMIT-SC. Both connectors maintain identical electrical and mechanical specifications across all critical parameters. The DCP-HD19T-SC carries active product status within the DATA-CON-X® DCP series and maintains full ROHS3 compliance. Selection of the DCP-HD19T-SC ensures continuity of supply for applications currently utilizing the DCP-HDMIT-SC while maintaining compliance with current regulatory requirements.

Frequently Asked Questions (FAQ)

Q: Can the DCP-HD19T-SC directly replace the DCP-HDMIT-SC in existing designs?

A: Yes. Both connectors share identical specifications for connector type, contact count, gender, mounting configuration, termination method, ingress protection rating, operating temperature range, current rating, and contact finish. Panel mount flange dimensions and PC board termination are equivalent.

Q: What is the primary difference between these two part numbers?

A: The DCP-HDMIT-SC is classified as obsolete, while the DCP-HD19T-SC is an active product. The DCP-HD19T-SC includes shielding, whereas the DCP-HDMIT-SC is unshielded. Both maintain the same electrical performance and environmental ratings.

Q: Are both parts ROHS3 compliant?

A: Yes. Both the DCP-HDMIT-SC and DCP-HD19T-SC are ROHS3 compliant and carry EAR99 ECCN classification.

Q: What is the packaging format for these connectors?

A: Both parts are supplied in bulk packaging. Current inventory includes 888 units of the DCP-HDMIT-SC and 755 units of the DCP-HD19T-SC.

Q: Are there any differences in mating cycle ratings?

A: The DCP-HDMIT-SC specifies 350 mating cycles. The DCP-HD19T-SC does not provide a mating cycle specification in the available data.
