DCP-HDMIT-F HDMI Adapter Connector Equivalent & Substitute Parts

Part Overview

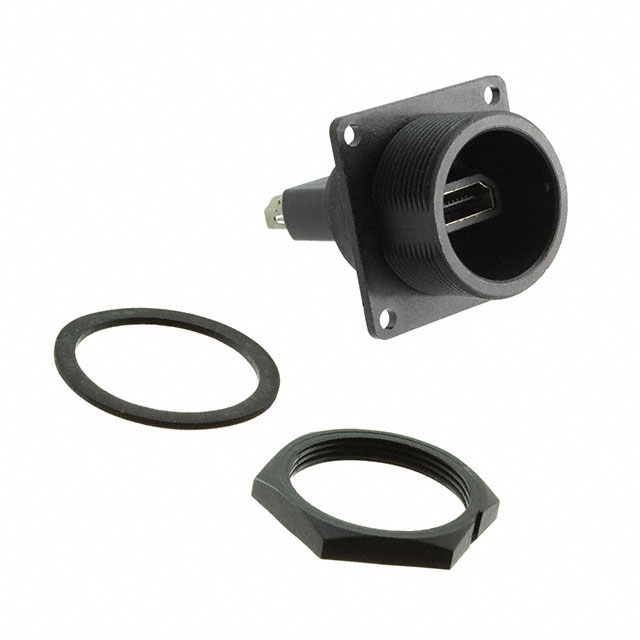

The DCP-HDMIT-F is an HDMI adapter connector manufactured by Conxall/Switchcraft, designed to convert HDMI receptacle connections to HDMI receptacle connections with panel mount, bulkhead front side nut mounting. This component is classified as obsolete, which necessitates identification of active equivalent parts to maintain supply chain continuity and ensure long-term component availability for new designs and field replacements.

Substiute Parts

DCP-HDMIT-F

Conxall/SwitchcraftIn Stock: 894DCP-HDMIT-F Datasheet

Current PartRFQ

DCP-HD19T-F

Conxall/SwitchcraftIn Stock: 1223DCP-HD19T-F Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete DCP-HDMIT-F is determined by strict equivalence across the following critical parameters:

• Connector Type: HDMI receptacle to HDMI receptacle conversion capability
• Mounting Configuration: Panel mount, bulkhead front side nut installation
• Electrical Compliance: ROHS3 compliance and EAR99 export classification
• Environmental Classification: Moisture sensitivity and REACH compliance status

The DCP-HD19T-F meets all substitution criteria as an active product within the Data-Con-X® series, maintaining identical functional and mechanical specifications while offering current manufacturing support and supply availability.

Parameter Comparison

Engineering Selection Recommendations

The DCP-HD19T-F is the direct equivalent substitute for the obsolete DCP-HDMIT-F. Both components maintain identical electrical and mechanical specifications, including ROHS3 compliance and EAR99 classification. The DCP-HD19T-F is currently in active production status with confirmed inventory availability (1123 pieces in stock), ensuring reliable supply for both new designs and field service applications. The transition from DCP-HDMIT-F to DCP-HD19T-F requires no design modifications and presents no compatibility concerns for existing installations.

Frequently Asked Questions (FAQ)

Q: Can DCP-HD19T-F be used as a direct replacement for DCP-HDMIT-F in existing applications?

A: Yes. Both components share identical connector types (HDMI receptacle to HDMI receptacle), mounting configuration (panel mount, bulkhead front side nut), and compliance certifications (ROHS3, EAR99). No design or installation modifications are required.

Q: What is the primary reason for substitution?

A: The DCP-HDMIT-F is classified as obsolete. The DCP-HD19T-F is the active equivalent part from the same manufacturer, ensuring continued component availability and manufacturing support.

Q: Are there differences in environmental or compliance ratings between these parts?

A: Both parts are ROHS3 compliant and carry EAR99 export classification. The DCP-HDMIT-F specifies MSL 1 (Unlimited). The DCP-HD19T-F lists MSL as Not Applicable, which is consistent with passive connector components and does not affect functional equivalence.

Q: What is the packaging difference?

A: The DCP-HDMIT-F packaging is not specified in available data. The DCP-HD19T-F is supplied in bulk packaging. This difference does not affect electrical or mechanical compatibility.

Q: Is the Data-Con-X® series designation significant for substitution?

A: The DCP-HD19T-F belongs to the Data-Con-X® series. This series designation indicates the active product line from Conxall/Switchcraft. The absence of series designation for DCP-HDMIT-F reflects its obsolete status. Series membership does not alter functional equivalence.
