DC-ME4-01T-C-10 Equivalent & Substitute Parts

Part Overview

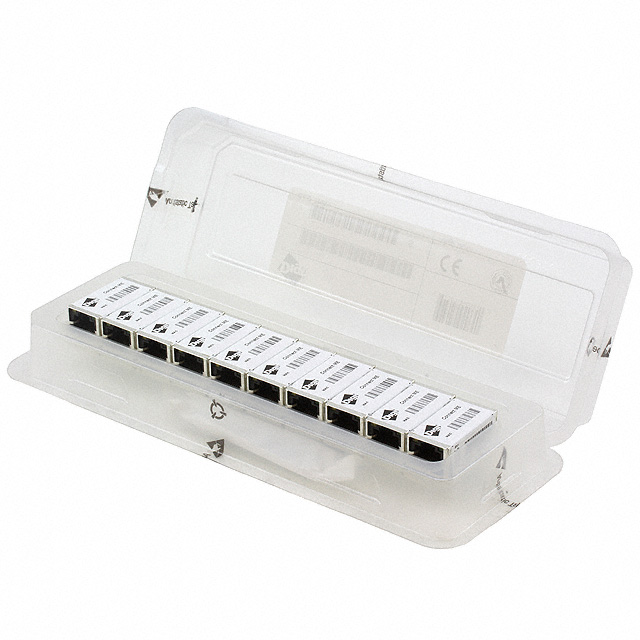

The DC-ME4-01T-C-10 is a Digi Connect ME® embedded module featuring an ARM7TDMI processor core with NS7520 architecture operating at 55MHz. The module integrates 8MB RAM and 4MB Flash memory with RJ45 connector interface, designed for embedded networking applications. This part is discontinued at DiGi Electronics, making equivalent substitute parts necessary for ongoing system support and procurement.

Substiute Parts

DC-ME4-01T-C-10

DigiIn Stock: 1175DC-ME4-01T-C-10 Datasheet

Current PartRFQ

DC-ME4-01T-C

DigiIn Stock: 919DC-ME4-01T-C Datasheet

Parametric EquivalentRFQ

DC-ME4-01T-JT

DigiIn Stock: 992DC-ME4-01T-JT Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the DC-ME4-01T-C-10 are determined by equivalence across the following critical parameters:

• Core Processor: ARM7TDMI, NS7520
• Operating Speed: 55MHz
• Memory Configuration: 4MB Flash, 8MB RAM
• Connector Type: RJ45
• Physical Dimensions: 1.450" L x 0.750" W
• Operating Temperature Range: -40°C ~ 85°C
• RoHS Compliance: Required
• Series: Digi Connect ME®

Parts meeting all these parameters are classified as parametric equivalents and may be substituted based on packaging and product status considerations.

Parameter Comparison

Engineering Selection Recommendations

DC-ME4-01T-C is the primary substitute for DC-ME4-01T-C-10. Both parts are parametrically identical across all electrical and mechanical specifications. The DC-ME4-01T-C maintains Active product status at the manufacturer, ensuring continued availability and support. Packaging differs (Box versus 10PK), which may affect procurement quantity requirements but does not impact functional compatibility.

DC-ME4-01T-JT is an alternative substitute meeting identical electrical and mechanical parameters. This part also maintains Active product status. Selection between DC-ME4-01T-C and DC-ME4-01T-JT should be based on packaging requirements and procurement lead times, as both provide equivalent functional performance.

All substitute parts maintain RoHS Compliance and MSL Rating 1 (Unlimited), ensuring compatibility with existing supply chain and assembly processes.

Frequently Asked Questions (FAQ)

Q: Can DC-ME4-01T-C directly replace DC-ME4-01T-C-10 in existing designs?

A: Yes. Both parts share identical electrical specifications (ARM7TDMI processor, 55MHz speed, 4MB Flash, 8MB RAM), mechanical dimensions (1.450" L x 0.750" W), connector type (RJ45), and operating temperature range (-40°C ~ 85°C). No design modifications are required.

Q: What is the difference between DC-ME4-01T-C and DC-ME4-01T-JT?

A: Both parts are parametrically equivalent with identical processor, memory, speed, and physical specifications. The primary difference is packaging format. DC-ME4-01T-C is supplied in Box packaging, while DC-ME4-01T-JT packaging is not specified in available documentation. Selection should be based on procurement quantity and packaging requirements.

Q: Why is DC-ME4-01T-C-10 discontinued?

A: The DC-ME4-01T-C-10 is discontinued at DiGi Electronics. The equivalent DC-ME4-01T-C and DC-ME4-01T-JT parts remain in Active status and are available for new procurement.

Q: Are there any compliance differences between the substitute parts?

A: No. All three parts (DC-ME4-01T-C-10, DC-ME4-01T-C, and DC-ME4-01T-JT) maintain identical RoHS Compliance status and MSL Rating 1 (Unlimited). REACH status is consistent across all variants.

Q: What packaging quantities are available for substitutes?

A: DC-ME4-01T-C is available in Box packaging. DC-ME4-01T-JT packaging format is not specified. Verify packaging and minimum order quantities with the supplier for procurement planning.
