DCMC643M063CC2F Equivalent & Substitute Parts

Part Overview

The DCMC643M063CC2F is a 64000 µF aluminum electrolytic capacitor rated at 63 V with screw terminals, manufactured by Cornell Dubilier Electronics (CDE). This component is classified as Active and serves general-purpose applications requiring high-capacitance energy storage in chassis-mounted configurations. The part is ROHS3 compliant and REACH unaffected, meeting current environmental standards.

Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across the same product series, ensuring functional interchangeability without circuit redesign or performance degradation.

Substiute Parts

DCMC643M063CC2F

Cornell Dubilier Electronics (CDE)In Stock: 842DCMC643M063CC2F Datasheet

Current PartRFQ

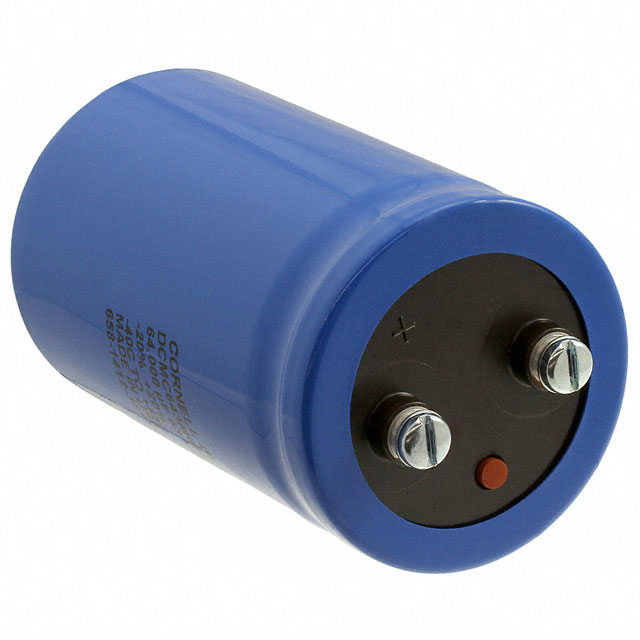

DCMC643M063CC2B

Cornell Dubilier Electronics (CDE)In Stock: 1036DCMC643M063CC2B Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the DCMC643M063CC2F is determined by strict equivalence across the following critical parameters:

Electrical Parameters:

• Capacitance: 64000 µF (exact match required)
• Voltage Rating: 63 V (exact match required)
• Tolerance: ±20% (exact match required)
• ESR @ 120Hz: 13.8 mOhm (exact match required)
• Lifetime @ 85°C: 2000 Hrs (exact match required)
• Operating Temperature Range: -40°C to 85°C (exact match required)

Mechanical Parameters:

• Lead Spacing: 1.125" / 28.58 mm (exact match required)
• Diameter: 2.500" / 63.50 mm (exact match required)
• Height - Seated (Max): 4.125" / 104.78 mm (exact match required)
• Package / Case: Radial, Can - Screw Terminals (exact match required)
• Mounting Type: Chassis Mount (exact match required)

Compliance Parameters:

• RoHS Status: ROHS3 Compliant (exact match required)
• Polarization: Polar (exact match required)

Substitute parts must originate from the same DCMC series and maintain identical electrical performance and physical dimensions to ensure direct replacement without circuit modification or mechanical rework.

Parameter Comparison

Engineering Selection Recommendations

Both the DCMC643M063CC2F and DCMC643M063CC2B are Active products manufactured by Cornell Dubilier Electronics within the DCMC series. Both components satisfy ROHS3 compliance and REACH unaffected status, meeting current regulatory requirements for industrial and commercial applications.

The DCMC643M063CC2B differs from the main part only in packaging designation (Bulk versus standard packaging). This distinction does not affect electrical performance, mechanical compatibility, or functional interchangeability. Both parts maintain identical electrical specifications, physical dimensions, and environmental ratings.

Selection between these parts is determined by procurement requirements and packaging preferences rather than technical performance criteria. Both are suitable for direct substitution in chassis-mounted applications requiring 64000 µF capacitance at 63 V with screw terminal connections.

Frequently Asked Questions (FAQ)

Q: Can DCMC643M063CC2B replace DCMC643M063CC2F in existing designs?

A: Yes. Both parts are electrically and mechanically identical. All critical parameters including capacitance, voltage rating, ESR, lifetime rating, operating temperature range, lead spacing, physical dimensions, and mounting configuration are equivalent. Direct substitution is possible without circuit modification.

Q: What is the difference between DCMC643M063CC2F and DCMC643M063CC2B?

A: The parts differ only in packaging designation. DCMC643M063CC2F uses standard packaging, while DCMC643M063CC2B uses Bulk packaging. This distinction affects order quantity and shipping configuration but does not impact component performance or compatibility.

Q: Are the screw terminal connections identical between substitute parts?

A: Yes. Both parts use Radial, Can - Screw Terminals with identical lead spacing of 1.125" (28.58 mm). Physical installation and electrical connection methods are identical.

Q: Do both parts meet the same environmental and compliance standards?

A: Yes. Both DCMC643M063CC2F and DCMC643M063CC2B are ROHS3 compliant and REACH unaffected. Both maintain identical operating temperature ranges of -40°C to 85°C and identical lifetime ratings of 2000 hours at 85°C.

Q: Can these parts be used interchangeably in high-reliability applications?

A: Yes. Both parts carry Active product status from Cornell Dubilier Electronics and maintain identical electrical specifications, ESR characteristics, and thermal performance. Interchangeability is supported for applications requiring consistent performance across component substitutions.
