DBMM-25P-L D-Sub Connector Equivalent & Substitute Parts

Part Overview

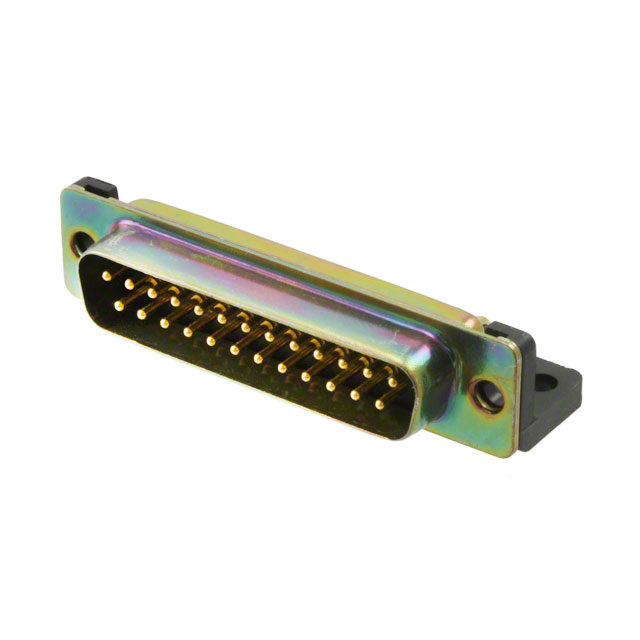

The DBMM-25P-L is a 25-position D-Sub plug connector manufactured by ITT Cannon, LLC, featuring male pins with right-angle solder termination. This connector is designed for panel mount and through-hole applications in signal transmission applications. The part is currently active in production with 1091 pieces in stock inventory.

Finding equivalent and substitute parts is necessary to ensure design flexibility, manage supply chain continuity, and accommodate alternative sourcing when the primary part becomes unavailable or when application requirements necessitate alternative connector configurations.

Substiute Parts

DBMM-25P-L

ITT Cannon, LLCIn Stock: 1170DBMM-25P-L Datasheet

Current PartRFQ

M83513/10-D01CP

GlenairIn Stock: 980M83513/10-D01CP Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the DBMM-25P-L connector is determined by strict alignment of the following critical parameters:

Connector Classification Parameters:

• Connector category: D-Sub, D-Shaped Connectors
• Connector type: Plug configuration with male pins
• Position count: 25 positions
• Row configuration: 2 rows
• Shell size designation: 3 (DB, B)

Electrical Performance Parameters:

• Current rating: 7.5A
• Contact material: Copper Alloy
• Contact finish: Gold plating
• Operating temperature range: -55°C to 150°C

Mechanical and Termination Parameters:

• Mounting configuration: Panel Mount, Through Hole, Right Angle
• Termination method: Solder
• Shell material: Steel with tin plating
• Dielectric material: Polycyclohexylenedimethylene Terephthalate (PCT)

Regulatory and Compliance Parameters:

• Product status: Active
• ECCN classification: EAR99
• HTSUS code: 8536.69.4030

The substitute part M83513/10-D01CP from Glenair is identified as an equivalent based on shared D-Sub connector category classification and active product status.

Parameter Comparison

Engineering Selection Recommendations

Primary Part Selection: The DBMM-25P-L from ITT Cannon, LLC remains the specified component for applications requiring the exact connector configuration, material specifications, and performance characteristics defined in the original design. This part is active in production with substantial inventory availability.

Substitute Part Consideration: The M83513/10-D01CP from Glenair is classified as an equivalent D-Sub connector. Selection of this substitute part is appropriate when:

• Supply continuity of the primary part cannot be assured
• Design requirements permit substitution within the D-Sub connector category
• The application environment and electrical performance requirements align with the substitute part specifications
• Regulatory compliance requirements of the end application are satisfied by the substitute part's REACH Unaffected status

Compliance Considerations: The primary part DBMM-25P-L carries REACH Affected status, while the substitute M83513/10-D01CP carries REACH Unaffected status. Applications subject to REACH regulatory requirements should evaluate this distinction during part selection.

Both parts carry EAR99 ECCN classification, indicating standard commercial export control treatment.

Frequently Asked Questions (FAQ)

Q: What defines compatibility between the DBMM-25P-L and its substitute parts?

A: Compatibility is determined by shared D-Sub connector category classification, identical connector type (plug with male pins), matching position count (25), identical row configuration (2 rows), and equivalent shell size designation (3, DB, B). Both parts maintain active product status and bulk packaging format.

Q: Can the M83513/10-D01CP directly replace the DBMM-25P-L in existing designs?

A: Both parts are classified as D-Sub, D-Shaped Connectors with active product status. Direct replacement feasibility depends on specific application requirements including electrical performance, environmental conditions, and regulatory compliance needs. The substitute part carries REACH Unaffected status, which may be advantageous in certain regulatory environments compared to the primary part's REACH Affected status.

Q: What are the inventory considerations for these parts?

A: The DBMM-25P-L has 1091 pieces in stock inventory. The M83513/10-D01CP has 907 pieces in stock inventory. Both parts are available in bulk packaging format.

Q: How do the regulatory classifications differ between these parts?

A: Both parts carry EAR99 ECCN classification. The HTSUS codes differ: DBMM-25P-L uses 8536.69.4030, while M83513/10-D01CP uses 8536.69.8000. The primary part carries REACH Affected status, while the substitute carries REACH Unaffected status. Applications subject to REACH compliance requirements should consider this distinction.

Q: What is the significance of the Moisture Sensitivity Level (MSL) difference?

A: The DBMM-25P-L lists MSL as Not Applicable, while the M83513/10-D01CP lists MSL as 1 (Unlimited). This indicates different moisture handling requirements during storage and transportation. The substitute part's MSL 1 rating indicates unlimited shelf life under standard storage conditions.
