DAM15P500MN D-Sub 15-Position Plug Connector Equivalent & Substitute Parts

Part Overview

The DAM15P500MN is a 15-position D-Sub plug connector manufactured by Amphenol ICC (FCI) in the DM HE508 series. This right-angle, through-hole solder connector features male pins with a 2-row configuration (Shell Size 2, DA/A layout) and is rated for 7.5A per contact at 300V. The part is currently obsolete, making equivalent and substitute parts necessary for ongoing system support and new designs requiring compatible D-Sub 15-position plug connectors.

Key Parameters

Parameter	DAM15P500MN Value
Connector Type	Plug, Male Pins
Number of Positions	15
Number of Rows	2
Shell Size, Connector Layout	2 (DA, A)
Mounting Type	Through Hole, Right Angle
Termination	Solder
Current Rating (Amps)	7.5A per Contact
Voltage Rating	300V
Operating Temperature	-55°C ~ 155°C
Shell Material, Finish	Steel, Cadmium Plated
Contact Finish	Gold
Material Flammability Rating	UL94 V-0
Product Status	Obsolete
RoHS Status	RoHS non-compliant

Substitute Part Grouping Explanation

Substitution for the DAM15P500MN is determined by strict adherence to the following core parameters:

Critical Matching Parameters:

Connector Type: Plug, Male Pins
Number of Positions: 15
Number of Rows: 2
Shell Size, Connector Layout: 2 (DA, A)
Mounting Type: Through Hole, Right Angle
Termination: Solder

Allowable Variation Parameters:

Current Rating: Substitute parts may have equal or higher current ratings
Voltage Rating: Substitute parts may have equal or higher voltage ratings
Operating Temperature: Substitute parts must support the application's required temperature range
Shell Material Finish: Variations in plating (cadmium, tin) are acceptable if contact finish remains gold
Flammability Rating: UL94 V-0 is preferred but not mandatory for substitution
RoHS Compliance: Modern substitutes may be RoHS3 compliant

Substitutes are grouped by manufacturer and series. Amphenol ICC DAM15P500M (DM HE501 series) is the manufacturer-recommended direct substitute. TE Connectivity AMPLIMITE HD-20 series parts (1-338169-2, 3-338169-2, 6-338169-2, 2-1393480-2, 3-1393480-3, 4-1393479-4, 4-1393480-1, 7-1393480-5) provide alternative sources with compatible core specifications.

Parameter Comparison

Parameter	DAM15P500MN	DAM15P500M	1-338169-2	3-338169-2	6-338169-2	2-1393480-2	7-1393480-5
Connector Type	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins
Number of Positions	15	15	15	15	15	15	15
Number of Rows	2	2	2	2	2	2	2
Shell Size, Connector Layout	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Current Rating (Amps)	7.5A per Contact	7.5A per Contact	6A	6A	6A	2.2A	2.2A
Voltage Rating	300V	300V	125V	125V	125V	—	—
Operating Temperature	-55°C ~ 155°C	-55°C ~ 125°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 125°C	-55°C ~ 125°C
Shell Material, Finish	Steel, Cadmium Plated	Steel, Yellow Cadmium Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated
Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	—	UL94 V-0
RoHS Status	RoHS non-compliant	RoHS non-compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant
Product Status	Obsolete	Active	Active	Active	Active	Active	Active

Engineering Selection Recommendations

Primary Substitute: DAM15P500M

The DAM15P500M is the manufacturer-recommended substitute from Amphenol ICC. It maintains identical connector specifications (15-position, 2-row, DA/A shell size, through-hole right-angle solder termination) with matching 7.5A current rating and 300V voltage rating. The primary difference is the operating temperature upper limit of 125°C versus the original 155°C. This part is active and available in tray packaging with 727 units in stock.

Secondary Substitutes: TE Connectivity AMPLIMITE HD-20 Series

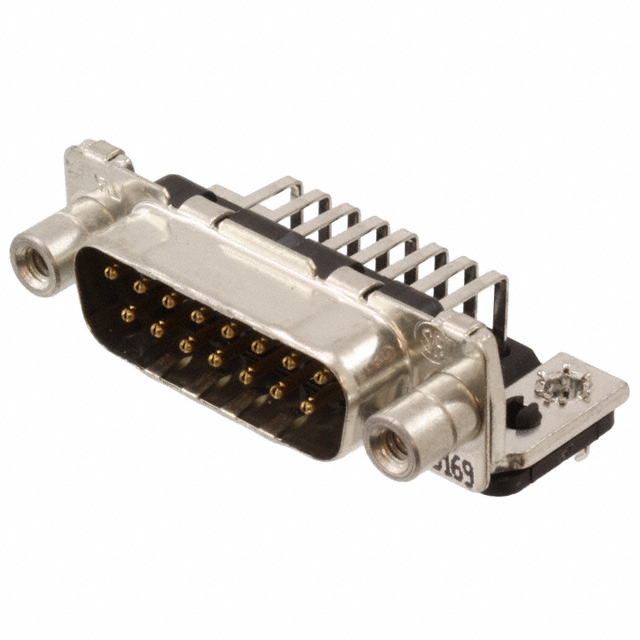

TE Connectivity parts 1-338169-2, 3-338169-2, and 6-338169-2 are active alternatives with identical core connector geometry and 15-position configuration. These parts are RoHS3 compliant and feature tin-plated steel shells with gold-plated contacts. Current ratings are reduced to 6A per contact, and voltage ratings are 125V. Operating temperature range is -55°C to 105°C. These parts are suitable for applications where the lower electrical ratings and temperature range are acceptable.

Lower Current Rating Alternatives: 2-1393480-2 and 7-1393480-5

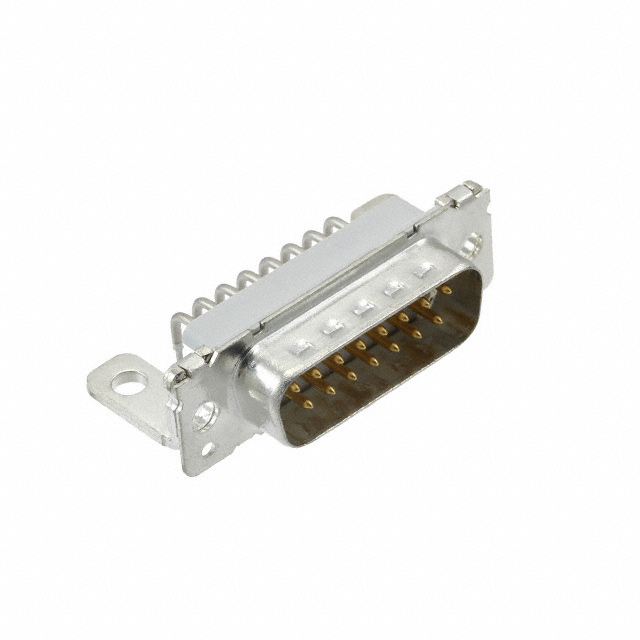

Parts 2-1393480-2 and 7-1393480-5 maintain the 15-position, 2-row D-Sub plug configuration but feature reduced current ratings of 2.2A per contact. These are appropriate only for low-current signal applications. Both are RoHS compliant and active products.

Compliance Consideration

Applications requiring RoHS3 compliance should select TE Connectivity AMPLIMITE HD-20 series substitutes. The original DAM15P500MN and its direct substitute DAM15P500M are RoHS non-compliant.

Frequently Asked Questions (FAQ)

Q: Can DAM15P500M directly replace DAM15P500MN in all applications?

A: DAM15P500M is mechanically and electrically compatible for most applications. The primary limitation is the reduced maximum operating temperature of 125°C versus 155°C on the original part. Verify that your application does not require sustained operation above 125°C before substitution.

Q: What is the difference between the Amphenol ICC and TE Connectivity substitutes?

A: Amphenol ICC DAM15P500M maintains the original 7.5A current rating and 300V voltage rating. TE Connectivity AMPLIMITE HD-20 series parts (1-338169-2, 3-338169-2, 6-338169-2) reduce current rating to 6A and voltage rating to 125V, with a lower maximum operating temperature of 105°C. Select based on your application's electrical requirements.

Q: Are there RoHS-compliant alternatives?

A: Yes. TE Connectivity parts 1-338169-2, 3-338169-2, 6-338169-2, 2-1393480-2, and 7-1393480-5 are all RoHS3 compliant or RoHS compliant. The original DAM15P500MN and DAM15P500M are RoHS non-compliant.

Q: What is the difference between parts with 6A and 2.2A current ratings?

A: The 6A-rated parts (1-338169-2, 3-338169-2, 6-338169-2) are suitable for standard signal and moderate power applications. The 2.2A-rated parts (2-1393480-2, 7-1393480-5) are restricted to low-current signal applications only. Select based on your circuit's maximum current requirements per contact.

Q: Do all substitutes use the same solder termination?

A: Yes. All listed substitutes use solder termination, maintaining compatibility with through-hole PCB assembly processes.

Q: What packaging options are available?

A: DAM15P500M is supplied in tray packaging. TE Connectivity AMPLIMITE HD-20 series parts are available in tray or bulk packaging depending on the specific part number. Verify packaging requirements with your procurement process.

Q: Can I use a 9-position D-Sub connector as a substitute?

A: No. The 6-1393480-0 is a 9-position connector and is not compatible with applications requiring 15-position connectivity. Position count is a critical non-substitutable parameter.
