Omron D4GL-2DFG-A Interlock Solenoid Locking Switch - Equivalent & Substitute Parts

Part Overview

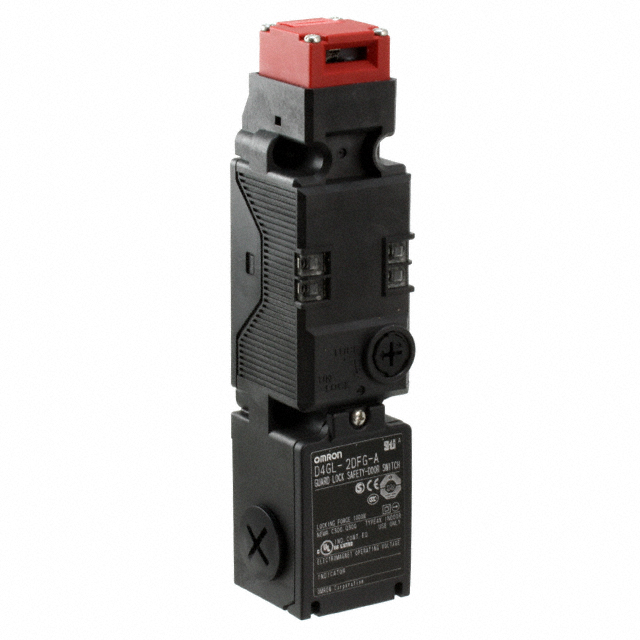

The Omron D4GL-2DFG-A is an interlock solenoid locking switch designed for panel disconnect applications. This DPST-NC configuration provides dual-channel switching with a holding force of 102kgf, operating at 240VAC with 24VDC supply voltage. The product is classified as obsolete, making identification of functionally equivalent active alternatives essential for procurement and system continuity.

Substiute Parts

D4GL-2DFG-A

Omron Automation and SafetyIn Stock: 1149D4GL-2DFG-A Datasheet

Current PartRFQ

D4SL-N2DFG

Omron Automation and SafetyIn Stock: 701D4SL-N2DFG Datasheet

SimilarRFQ

D4SL-N2DFG-N

Omron Automation and SafetyIn Stock: 795D4SL-N2DFG-N Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the D4GL-2DFG-A is based on functional equivalence across the following critical parameters:

Mandatory Matching Criteria:

• Circuit configuration: DPST-NC x 2
• Actuator type: Panel Disconnect
• Termination style: Screw Terminal
• Conduit thread size: G1/2
• Ingress protection: IP67
• Operating temperature range: -10°C to 55°C
• Solenoid locking mechanism type

Acceptable Parameter Variations:

• Voltage rating and supply voltage may differ if the application circuit can accommodate the substitute's electrical specifications
• Holding force may exceed the original specification
• Current rating may differ within the AC/DC operating envelope
• Product status may transition from obsolete to active

The D4SL-N series (D4SL-N2DFG and D4SL-N2DFG-N) meets all mandatory matching criteria while offering enhanced electrical performance and active product status.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitutes: D4SL-N2DFG and D4SL-N2DFG-N

Both D4SL-N series parts are functionally equivalent to the D4GL-2DFG-A across all mandatory mechanical and operational parameters. Key advantages of these substitutes include:

• Active product status ensures long-term availability and supply chain continuity
• Enhanced holding force (133kgf vs. 102kgf) provides increased mechanical reliability
• Expanded voltage rating options (120VAC, 125VDC) accommodate broader application requirements
• Dual AC/DC current ratings (1.5A AC, 220mA DC) extend operational flexibility
• Identical environmental protection (IP67) and temperature operating range
• Equivalent regulatory compliance with additional CCC certification

The D4SL-N2DFG and D4SL-N2DFG-N variants are interchangeable from a functional standpoint. Selection between these two should be based on packaging requirements and inventory availability.

Frequently Asked Questions (FAQ)

Q: Can the D4SL-N2DFG directly replace the D4GL-2DFG-A in existing installations?

A: Yes. Both parts share identical circuit configuration (DPST-NC x 2), actuator type (Panel Disconnect), termination style (Screw Terminal), conduit thread size (G1/2), and environmental specifications (IP67, -10°C to 55°C). The mechanical interface and electrical switching function are equivalent. Voltage and current specifications must be verified against the application circuit requirements.

Q: What is the difference between D4SL-N2DFG and D4SL-N2DFG-N?

A: Both parts are functionally identical. The difference is packaging: D4SL-N2DFG is supplied in bulk packaging, while D4SL-N2DFG-N is also supplied in bulk packaging. Selection should be based on procurement specifications and inventory availability.

Q: Why does the D4GL-2DFG-A have a higher voltage rating (240VAC) than the D4SL-N substitutes (120VAC)?

A: The voltage rating reflects the maximum switching voltage for the contact circuit, not the solenoid supply voltage. The D4SL-N series operates with a different electrical design that accommodates 120VAC switching while maintaining equivalent switching performance. Application circuits must be designed to the substitute part's electrical specifications.

Q: Are there any compliance or certification differences between the original and substitute parts?

A: The D4SL-N series includes additional CCC certification beyond the D4GL-2DFG-A's CE, cULus, and TUV approvals. Both maintain EAR99 export classification and equivalent regulatory compliance for industrial switching applications.

Q: What is the holding force difference, and does it affect compatibility?

A: The D4SL-N series provides 133kgf holding force compared to the D4GL-2DFG-A's 102kgf. This represents a 31% increase in mechanical holding capability. For applications requiring the original 102kgf specification, the higher holding force of the substitute is acceptable and provides additional safety margin.
