D44L-R1ML Equivalent & Substitute Parts

Part Overview

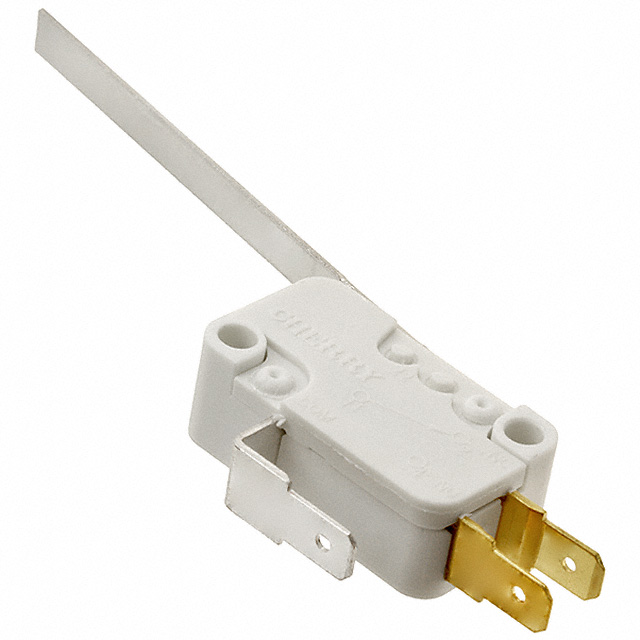

The D44L-R1ML is an SPDT snap action switch manufactured by ZF Electronics, designed for chassis mount applications with 10A AC and 6A DC current capacity at 125V AC and 30V DC respectively. This part operates with a straight lever actuator and quick connect termination, featuring explosion-proof construction. The product is currently obsolete, making identification of equivalent and substitute parts essential for system maintenance, repair, and redesign applications where continued functionality is required.

Key Parameters

Parameter	D44L-R1ML
Manufacturer	ZF Electronics
Circuit Configuration	SPDT
Switch Function	On-Mom
Current Rating (AC)	10A
Current Rating (DC)	6A
Voltage Rating (AC)	125V
Voltage Rating (DC)	30V
Actuator Type	Lever, Straight
Mounting Type	Chassis Mount
Termination Style	Quick Connect - 0.187" (4.7mm)
Operating Temperature	-40°C ~ 85°C
RoHS Status	ROHS3 Compliant
Product Status	Obsolete

Substitute Part Grouping Explanation

Substitute parts for the D44L-R1ML are identified based on the following critical parameters that determine functional compatibility:

Primary Compatibility Criteria:

Circuit configuration (SPDT maintained)
Switch function (On-Mom maintained)
Mounting type (Chassis Mount maintained)
Termination style (Quick Connect - 0.187" maintained)
Operating temperature range (-40°C ~ 85°C maintained)

Substitution Categories:

Direct Substitute (D449-R1ML-G2): Maintains identical circuit, function, actuator type, mounting, and termination. Voltage rating increased to 250V AC. Current rating maintained at 10A AC. Product status is Active with higher electrical life rating (50,000 cycles vs. 6,000 cycles).

Similar Substitute (V7-2A17D8-207): Maintains SPDT circuit, On-Mom function, chassis mount, and quick connect termination. Manufactured by Honeywell Sensing and Productivity Solutions. Current rating reduced to 5A AC. Voltage rating matches original at 125V AC. Actuator type differs (roller vs. straight lever). Product status is Active with significantly higher electrical and mechanical life ratings.

Parameter Comparison

Parameter	D44L-R1ML (Main)	D449-R1ML-G2 (Direct)	V7-2A17D8-207 (Similar)
Manufacturer	ZF Electronics	ZF Electronics	Honeywell Sensing and Productivity Solutions
Circuit	SPDT	SPDT	SPDT
Switch Function	On-Mom	On-Mom	On-Mom
Current Rating (AC)	10A	10A	5A
Voltage Rating (AC)	125V	250V	125V
Actuator Type	Lever, Straight	Lever, Straight	Lever, Roller
Mounting Type	Chassis Mount	Chassis Mount	Chassis Mount
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm)
Operating Force	10gf	10gf	43gf
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Electrical Life	6,000 Cycles	50,000 Cycles	100,000 Cycles
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant
Product Status	Obsolete	Active	Active

Engineering Selection Recommendations

D449-R1ML-G2 Selection: This direct substitute from ZF Electronics is the primary choice for applications requiring continuity with the original D44L-R1ML design. It maintains identical circuit topology, actuator configuration, and termination interface. The increased voltage rating to 250V AC provides enhanced margin in systems operating at or near 125V AC. The Active product status ensures ongoing availability and supply chain stability. ROHS3 compliance matches the original specification. Selection of this part eliminates design modification requirements.

V7-2A17D8-207 Selection: This Honeywell substitute is applicable in applications where the 5A AC current rating is sufficient for system requirements. The roller actuator differs mechanically from the straight lever of the original part, requiring mechanical interface verification. The significantly higher electrical life (100,000 cycles) and mechanical life (10,000,000 cycles) provide extended operational durability compared to the original specification. RoHS compliance is maintained. This substitute requires validation that the reduced current capacity and different actuator type are compatible with the intended application.

Frequently Asked Questions (FAQ)

Q: Can D449-R1ML-G2 be used as a direct replacement for D44L-R1ML without circuit modification?

A: Yes. D449-R1ML-G2 maintains identical SPDT circuit configuration, On-Mom function, chassis mount interface, and quick connect termination. The increased voltage rating to 250V AC is compatible with systems designed for 125V AC operation. No circuit modification is required.

Q: What is the primary limitation of V7-2A17D8-207 as a substitute?

A: The current rating is reduced to 5A AC compared to the original 10A AC specification. Applications requiring the full 10A AC capacity cannot use this substitute. Additionally, the roller actuator differs from the straight lever design, requiring mechanical interface verification.

Q: Are both substitute parts RoHS compliant?

A: Yes. D449-R1ML-G2 is ROHS3 compliant, matching the original specification. V7-2A17D8-207 is RoHS compliant. Both meet environmental regulatory requirements.

Q: What is the packaging difference between the substitutes?

A: D449-R1ML-G2 is supplied in Bulk packaging. V7-2A17D8-207 is also supplied in Bulk packaging. Both differ from the original part's packaging specification.

Q: Which substitute offers the longest operational life?

A: V7-2A17D8-207 provides the highest electrical life at 100,000 cycles and mechanical life at 10,000,000 cycles, compared to D449-R1ML-G2 at 50,000 electrical cycles and the original D44L-R1ML at 6,000 electrical cycles.

Q: Can both substitutes operate across the full temperature range of the original part?

A: Yes. Both D449-R1ML-G2 and V7-2A17D8-207 maintain the operating temperature range of -40°C ~ 85°C specified for the original D44L-R1ML.
