Equivalent & Substitute Parts for D2MC-5E1

Part Overview

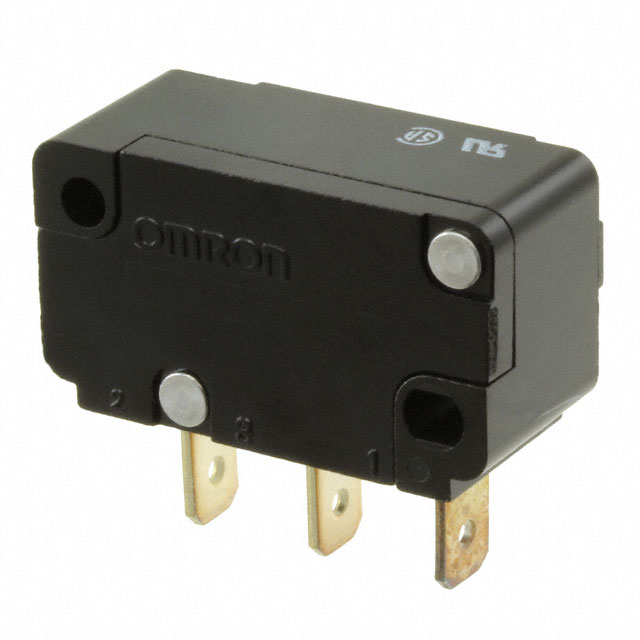

The D2MC-5E1 is a snap action SPDT switch manufactured by Omron Electronics Inc-EMC Div, rated for 5A at 125V AC with chassis mount configuration. This component is classified as obsolete, necessitating identification of active equivalent parts for continued system support and procurement. The D2MC-5E1 features quick connect termination and IP40 ingress protection suitable for industrial control applications.

Substiute Parts

D2MC-5E1

Omron Electronics Inc-EMC DivIn Stock: 1143D2MC-5E1 Datasheet

Current PartRFQ

D2MC-5E

Omron Electronics Inc-EMC DivIn Stock: 986D2MC-5E Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the D2MC-5E1 is determined by strict equivalence across the following critical parameters:

• Circuit configuration (SPDT)
• Switch function (On-Momentary)
• Current rating (5A AC)
• Voltage rating (125V AC)
• Mounting type (Chassis Mount)
• Termination style (Quick Connect - 0.205")
• Ingress protection (IP40)
• Operating temperature range (-25°C to 80°C)
• Mechanical and electrical life specifications
• Actuation force characteristics (operating force, release force, travel angles)

The D2MC-5E base part number represents the active equivalent series. Substitutes within this grouping maintain identical electrical and mechanical performance characteristics while differing only in product status and packaging configuration.

Parameter Comparison

Engineering Selection Recommendations

The D2MC-5E is the direct active equivalent for the obsolete D2MC-5E1. Both parts are manufactured by Omron Electronics Inc-EMC Div and maintain identical electrical and mechanical specifications across all critical parameters. The D2MC-5E carries active product status and ROHS3 compliance certification, making it suitable for new designs and ongoing procurement requirements. The upgrade from RoHS Compliant to ROHS3 Compliant status reflects current regulatory alignment. Both parts are available in bulk packaging and are functionally interchangeable for applications requiring SPDT snap action switches rated at 5A, 125V AC with chassis mount configuration.

Frequently Asked Questions (FAQ)

Q: Can the D2MC-5E directly replace the D2MC-5E1 in existing applications?

A: Yes. The D2MC-5E is electrically and mechanically equivalent to the D2MC-5E1. All functional parameters, including current rating, voltage rating, circuit configuration, mounting type, termination style, and actuation characteristics are identical.

Q: What is the primary reason for substitution?

A: The D2MC-5E1 is classified as obsolete. The D2MC-5E is the active equivalent part from the same manufacturer and series, ensuring continued availability and support.

Q: Are there packaging differences between these parts?

A: Both parts are supplied in bulk packaging. No packaging conversion is required for substitution.

Q: Does the RoHS compliance upgrade affect compatibility?

A: No. The upgrade from RoHS Compliant to ROHS3 Compliant represents improved regulatory alignment and does not affect electrical or mechanical performance. The D2MC-5E is fully compatible with applications designed for the D2MC-5E1.

Q: What are the key parameters that define substitution eligibility?

A: Substitution is based on equivalence in circuit configuration (SPDT), switch function (On-Momentary), current and voltage ratings (5A, 125V AC), mounting type (Chassis Mount), termination style (Quick Connect - 0.205"), ingress protection (IP40), operating temperature range (-25°C to 80°C), and mechanical/electrical life specifications.

Q: Is the D2MC-5E suitable for new designs?

A: Yes. The D2MC-5E carries active product status and current compliance certifications, making it appropriate for new design implementations.
