CZP2AFTTD221P Equivalent & Substitute Parts

Part Overview

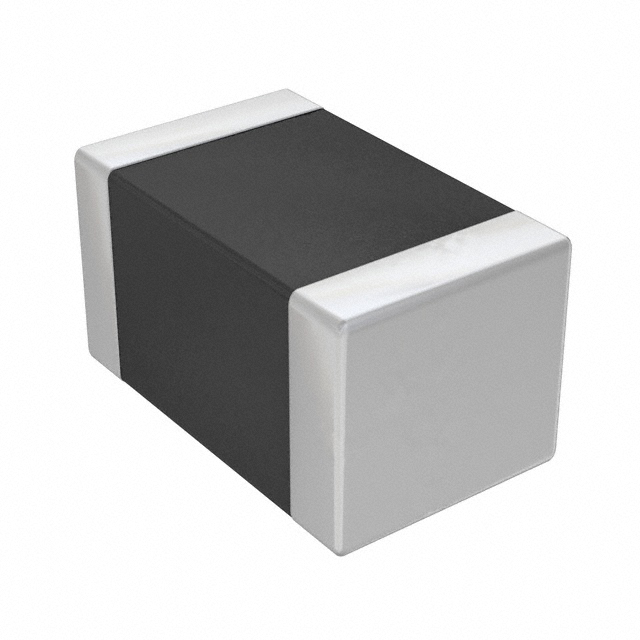

The CZP2AFTTD221P is a 220 Ohms @ 100 MHz power line ferrite bead manufactured by KOA Speer Electronics, Inc. in 0805 (2012 Metric) surface mount package. This component is rated for 3A maximum current with 50mOhm DC resistance and operates across -55°C to 125°C. The part is Active status and ROHS3 compliant. Equivalent and substitute parts are identified when design requirements necessitate alternative sourcing due to availability, lead time, or supply chain considerations while maintaining electrical and mechanical compatibility.

Key Parameters

Parameter	Value
Impedance @ Frequency	220 Ohms @ 100 MHz
Current Rating (Max)	3A
DC Resistance (DCR) (Max)	50mOhm
Package / Case	0805 (2012 Metric)
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 125°C
Filter Type	Power Line
Number of Lines	1
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution eligibility for the CZP2AFTTD221P is determined by the following critical parameters:

Primary Matching Criteria:

Impedance @ 100 MHz: 220 Ohms (exact match required for power line filtering performance)
Package / Case: 0805 (2012 Metric) (mechanical and PCB footprint compatibility)
Current Rating: 3A minimum (electrical load capacity)
Operating Temperature Range: -55°C ~ 125°C minimum (thermal environment compatibility)
Mounting Type: Surface Mount (assembly process compatibility)
Number of Lines: 1 (circuit topology match)

Secondary Compatibility Parameters:

DC Resistance (DCR): 50mOhm maximum (electrical performance tolerance)
Filter Type: Power Line (functional classification)
RoHS Status: ROHS3 Compliant (regulatory requirement)
Moisture Sensitivity Level: 1 (Unlimited) (storage and handling compatibility)

Parts meeting all primary criteria and secondary parameters are classified as direct equivalents. Parts with impedance values within ±15% of 220 Ohms or DCR values up to 40mOhm are classified as parametric equivalents suitable for power line ferrite bead applications.

Parameter Comparison

Manufacturer Part Number	Manufacturer	Impedance @ Frequency	Current Rating (Max)	DC Resistance (DCR) (Max)	Package / Case	Operating Temperature	Filter Type	RoHS Status	Height (Max)
CZP2AFTTD221P	KOA Speer Electronics, Inc.	220 Ohms @ 100 MHz	3A	50mOhm	0805 (2012 Metric)	-55°C ~ 125°C	Power Line	ROHS3 Compliant	0.043" (1.10mm)
FBH201209T-221Y-S	Cal-Chip Electronics, Inc.	220 Ohms @ 100 MHz	3A	50mOhm	0805 (2012 Metric)	-55°C ~ 125°C	Power Line	RoHS Compliant	0.041" (1.05mm)
MPZ2012S221AT000	TDK Corporation	220 Ohms @ 100 MHz	3A	40mOhm	0805 (2012 Metric)	-55°C ~ 125°C	Power Line	ROHS3 Compliant	0.041" (1.05mm)
WLBD2012HCU221TH	Walsin Technology Corporation	220 Ohms @ 100 MHz	3A	40mOhm	0805 (2012 Metric)	-55°C ~ 125°C	Power Line	ROHS3 Compliant	0.026" (0.65mm)
2508052217Y3	Fair-Rite Products Corp.	220 Ohms @ 100 MHz	3A	50mOhm	0805 (2012 Metric)	-55°C ~ 125°C	Signal Line	ROHS3 Compliant	0.043" (1.10mm)
BBUP00201209221Y00	Pulse Electronics	220 Ohms @ 100 MHz	3A	40mOhm	0805 (2012 Metric)	-55°C ~ 125°C	—	ROHS3 Compliant	0.043" (1.10mm)
ILHB0805ER251V	Vishay Dale	250 Ohms @ 100 MHz	3A	40mOhm	0805 (2012 Metric)	-55°C ~ 125°C	—	ROHS3 Compliant	0.043" (1.10mm)
FBH201209T-181Y-S	Cal-Chip Electronics, Inc.	180 Ohms @ 100 MHz	3A	50mOhm	0805 (2012 Metric)	-55°C ~ 125°C	Power Line	RoHS Compliant	0.041" (1.05mm)

Engineering Selection Recommendations

Direct Equivalents (Identical Electrical and Mechanical Specifications):

FBH201209T-221Y-S (Cal-Chip Electronics, Inc.) matches all primary and secondary parameters with the CZP2AFTTD221P. Both are 220 Ohms @ 100 MHz power line ferrite beads with 3A current rating, 50mOhm DCR, and identical operating temperature range. Height difference of 0.002" (0.05mm) is within standard manufacturing tolerance. RoHS compliance is confirmed.

Parametric Equivalents (Electrical Performance Within Tolerance):

MPZ2012S221AT000 (TDK Corporation) and WLBD2012HCU221TH (Walsin Technology Corporation) both provide 220 Ohms @ 100 MHz impedance with reduced DCR of 40mOhm, which is superior to the 50mOhm specification. Both maintain 3A current rating, identical operating temperature range, and ROHS3 compliance. Height variations (0.041" and 0.026" respectively) remain within 0805 package specifications.

Alternative Impedance Options:

2508052217Y3 (Fair-Rite Products Corp.) provides 220 Ohms @ 100 MHz but is classified as Signal Line rather than Power Line. Electrical parameters match the main part exactly. Application context determines suitability.

ILHB0805ER251V (Vishay Dale) provides 250 Ohms @ 100 MHz, representing a 13.6% impedance increase. This part is suitable only when higher impedance filtering is acceptable for the application.

FBH201209T-181Y-S (Cal-Chip Electronics, Inc.) provides 180 Ohms @ 100 MHz, representing an 18.2% impedance decrease. This part is suitable only when lower impedance filtering is acceptable for the application.

BBUP00201209221Y00 (Pulse Electronics) provides 220 Ohms @ 100 MHz with 40mOhm DCR but lacks specified filter type classification. Electrical parameters are compatible.

Frequently Asked Questions (FAQ)

Q: Can FBH201209T-221Y-S be used as a direct replacement for CZP2AFTTD221P?

A: Yes. FBH201209T-221Y-S is a direct equivalent. Both parts share identical impedance (220 Ohms @ 100 MHz), current rating (3A), DC resistance (50mOhm), package (0805), operating temperature range (-55°C ~ 125°C), and filter type (Power Line). Height difference of 0.002" is within standard tolerance.

Q: What is the difference between Power Line and Signal Line ferrite beads?

A: Filter type designation indicates the intended application circuit. Power Line ferrite beads are designed for power distribution filtering, while Signal Line beads are designed for signal integrity applications. Both CZP2AFTTD221P and 2508052217Y3 provide identical electrical parameters but differ in filter type classification.

Q: Can parts with lower DCR values (40mOhm) replace the CZP2AFTTD221P (50mOhm)?

A: Yes. Lower DC resistance is a performance improvement. MPZ2012S221AT000, WLBD2012HCU221TH, BBUP00201209221Y00, and ILHB0805ER251V all provide 40mOhm DCR, which reduces power dissipation compared to the 50mOhm specification.

Q: Are impedance variations acceptable for substitution?

A: Impedance substitution depends on application requirements. ILHB0805ER251V (250 Ohms) and FBH201209T-181Y-S (180 Ohms) deviate from the 220 Ohms specification. These parts are suitable only when the application circuit design permits impedance tolerance variation.

Q: What packaging formats are available for these ferrite beads?

A: CZP2AFTTD221P is supplied in Tape & Reel (TR) format. Substitute parts are available in Tape & Reel (TR) or Cut Tape (CT) & Digi-Reel® formats. Packaging format does not affect electrical or mechanical compatibility but may impact procurement and assembly processes.

Q: Are all substitute parts ROHS3 compliant?

A: Most substitute parts are ROHS3 compliant. FBH201209T-221Y-S and FBH201209T-181Y-S are RoHS Compliant (not specifically ROHS3). All parts meet regulatory requirements for the specified operating environments.

Q: What is the significance of Moisture Sensitivity Level (MSL) 1?

A: MSL 1 (Unlimited) indicates the component has unlimited shelf life and requires no special moisture control during storage or handling. All listed parts share this classification, ensuring consistent handling requirements.
