CX-412-C05 Equivalent & Substitute Parts

Part Overview

The CX-412-C05 is a through-beam optical sensor manufactured by Panasonic Industrial Automation Sales, designed for 15-meter sensing distance applications with NPN open collector output. This sensor operates across 12V to 24V supply voltage with 1ms response time and IP67 ingress protection, making it suitable for industrial automation environments. The CX-412-C05 is classified as obsolete, necessitating identification of active equivalent parts to maintain system continuity and ensure long-term component availability for new designs and field replacements.

Substiute Parts

CX-412-C05

Panasonic Industrial Automation SalesIn Stock: 1067CX-412-C05 Datasheet

Current PartRFQ

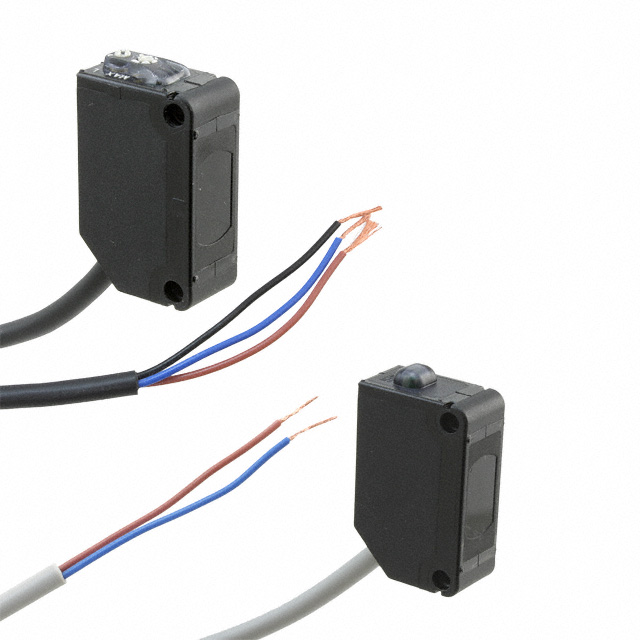

CX-412

Panasonic Industrial Automation SalesIn Stock: 1101CX-412 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The CX-412 serves as a direct substitute for the CX-412-C05. Substitution eligibility is determined by matching the following critical parameters:

• Sensing Method: Through-Beam
• Sensing Distance: 15m
• Voltage - Supply: 12V ~ 24V
• Response Time: 1ms
• Output Configuration: NPN - Open Collector
• Light Source: Infrared
• Ingress Protection: IP67
• Operating Temperature: -25°C ~ 55°C

The CX-412 maintains identical electrical and optical specifications while transitioning from obsolete to active product status, ensuring functional compatibility in existing and new applications.

Parameter Comparison

Engineering Selection Recommendations

The CX-412 is the appropriate selection for applications currently using the obsolete CX-412-C05. Both parts maintain identical electrical and mechanical specifications across all critical parameters. The CX-412 offers the advantage of active product status, ensuring ongoing availability, technical support, and compliance with current regulatory standards including ROHS3 certification. For new designs and field replacements, the CX-412 provides continuity of function while supporting long-term supply chain stability.

Frequently Asked Questions (FAQ)

Q: Can the CX-412 directly replace the CX-412-C05 in existing installations?

A: Yes. The CX-412 maintains identical sensing distance (15m), voltage supply range (12V ~ 24V), response time (1ms), output configuration (NPN - Open Collector), and ingress protection (IP67). No circuit modifications are required.

Q: What is the primary difference between these two part numbers?

A: The CX-412-C05 is classified as obsolete, while the CX-412 is active. The CX-412 also carries ROHS3 certification compared to RoHS compliance on the CX-412-C05. All functional parameters remain identical.

Q: Are there packaging differences between the CX-412-C05 and CX-412?

A: The CX-412-C05 packaging is not specified in available documentation. The CX-412 is supplied in box packaging. Verify packaging requirements for your specific application needs.

Q: What compliance certifications apply to the CX-412?

A: The CX-412 is ROHS3 compliant, classified under ECCN EAR99, and carries HTSUS code 8541.49.8000. Moisture sensitivity level is rated at MSL 1 (Unlimited).

Q: Is the cable length identical between both parts?

A: The CX-412-C05 specifies 19.5" (50cm) cable length. The CX-412 cable length is not specified in available documentation. Confirm cable length requirements for your application.
