CWN-360-50-0021 Equivalent & Substitute Parts

Part Overview

The CWN-360-50-0021 is a rectangular connector header manufactured by CW Industries, designed for through-hole mounting applications. This shrouded 50-position header with 2.54mm pitch serves board-to-cable/wire interconnection requirements. The part is active in production with 1058 units in current inventory. Substitute parts are identified when equivalent electrical and mechanical parameters align with the original specification, enabling component interchangeability in applications where form factor and performance characteristics remain consistent.

Key Parameters

Parameter	Value
Connector Type	Header
Contact Type	Male Pin
Number of Positions	50
Number of Rows	2
Pitch - Mating	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Shrouding	Shrouded - 4 Wall
Fastening Type	Push-Pull
Operating Temperature Range	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution eligibility for the CWN-360-50-0021 is determined by strict alignment of the following critical parameters:

Primary Matching Criteria:

Connector type: Header
Contact type: Male Pin
Number of positions: 50
Number of rows: 2
Pitch - mating: 0.100" (2.54mm)
Row spacing - mating: 0.100" (2.54mm)
Mounting type: Through Hole
Termination: Solder
Shrouding: Shrouded - 4 Wall
Fastening type: Push-Pull
Style: Board to Cable/Wire or Board to Board or Cable

All identified substitute parts meet these core electrical and mechanical parameters. Variations in contact material, contact finish composition, insulation material, and contact length specifications are secondary parameters that do not prevent functional substitution when primary criteria align.

Parameter Comparison

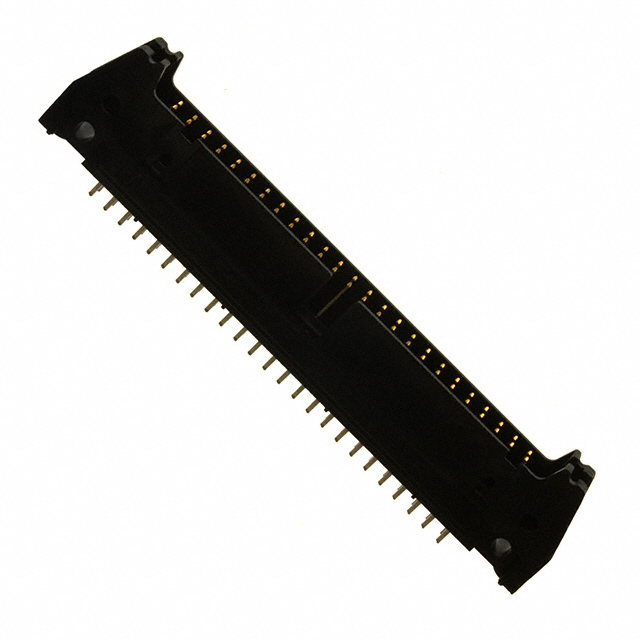

Parameter	CWN-360-50-0021 (CW Industries)	09185506924 (HARTING)	71918-050LF (Amphenol ICC)	D3433-6002-AR (3M)	N3433-6002RB (3M)	N3433-6003RB (3M)
Connector Type	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Number of Positions	50	50	50	50	50	50
Number of Rows	2	2	2	2	2	2
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder	Solder
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Operating Temperature Range	-55°C ~ 125°C	-55°C ~ 125°C	Not specified	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Contact Length - Mating	0.240" (6.10mm)	0.240" (6.10mm)	0.228" (5.80mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)
Contact Length - Post	0.155" (3.94mm)	0.114" (2.90mm)	0.114" (2.90mm)	0.112" (2.84mm)	0.112" (2.84mm)	0.155" (3.94mm)
Insulation Height	0.681" (17.30mm)	0.681" (17.30mm)	0.685" (17.40mm)	0.680" (17.27mm)	0.680" (17.27mm)	0.680" (17.27mm)
Contact Shape	Circular	Square	Square	Square	Square	Square
Contact Finish - Mating	Gold	Gold	Gold, GXT™	Gold	Gold	Gold
Contact Finish - Post	Nickel	Tin	Tin	Tin	Tin	Tin
Contact Material	Phosphor Bronze	Copper Alloy	Phosphor Bronze	Brass	Copper Alloy	Copper Alloy
Insulation Material	Thermoplastic	Polybutylene Terephthalate (PBT), Glass Filled	Thermoplastic, Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Current Rating (Amps)	1A	Not specified	Not specified	1.75A	1.75A	1.75A
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant	ROHS3 Compliant	RoHS Compliant	RoHS Compliant
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
Packaging	Bulk	Bulk	Tube	Tray	Bulk	Bulk
Inventory Status	1058 Pcs New Original In Stock	1099 Pcs New Original In Stock	1555 Pcs New Original In Stock	1244 Pcs New Original In Stock	1315 Pcs New Original In Stock	1119 Pcs New Original In Stock

Engineering Selection Recommendations

All identified substitute parts maintain active product status and comply with UL94 V-0 flammability requirements and MSL 1 moisture sensitivity specifications. The CWN-360-50-0021 and HARTING 09185506924 both support the full operating temperature range of -55°C to 125°C. The 3M parts (D3433-6002-AR, N3433-6002RB, N3433-6003RB) and Amphenol ICC 71918-050LF operate within -55°C to 105°C, which is suitable for applications not requiring the extended upper temperature limit.

Contact post length varies across substitutes. The CWN-360-50-0021 and N3433-6003RB both feature 0.155" (3.94mm) post length, while HARTING 09185506924, Amphenol ICC 71918-050LF, and 3M D3433-6002-AR and N3433-6002RB feature shorter post lengths of 0.114" to 0.112". Post length selection depends on PCB thickness and solder joint requirements in the target application.

Contact finish on the post differs between the original part (Nickel) and all substitutes (Tin). This variation does not prevent functional substitution in standard applications. The 3M parts provide higher current ratings of 1.75A compared to the original 1A specification.

Frequently Asked Questions (FAQ)

Q: What are the core criteria for substituting the CWN-360-50-0021?

A: The substitute part must maintain 50 positions, 2 rows, 0.100" (2.54mm) pitch, through-hole mounting, solder termination, shrouded 4-wall configuration, and push-pull fastening. All identified substitutes meet these requirements.

Q: Does contact shape difference (circular vs. square) affect substitution?

A: Contact shape is a secondary parameter. The CWN-360-50-0021 features circular contacts while most substitutes feature square contacts. Both geometries perform the same electrical function in standard applications.

Q: Are the 3M parts suitable for high-temperature applications?

A: The 3M parts (D3433-6002-AR, N3433-6002RB, N3433-6003RB) operate to 105°C maximum, compared to the CWN-360-50-0021 specification of 125°C. Selection depends on application temperature requirements.

Q: What is the significance of contact post length variation?

A: Post length affects solder joint formation and PCB penetration depth. The CWN-360-50-0021 and N3433-6003RB both feature 0.155" (3.94mm) posts. Shorter post lengths in other substitutes may require PCB design adjustment for adequate solder joint formation.

Q: Does the nickel vs. tin post finish affect performance?

A: Post finish is a secondary parameter. The original part uses nickel while substitutes use tin. Both finishes provide adequate corrosion resistance and solderability in standard applications.

Q: Which substitute offers the highest current rating?

A: The 3M parts (D3433-6002-AR, N3433-6002RB, N3433-6003RB) are rated for 1.75A, compared to the original 1A specification. These parts are suitable for higher current applications.

Q: Are all substitutes RoHS compliant?

A: All identified substitutes comply with RoHS requirements. The CWN-360-50-0021 and D3433-6002-AR are ROHS3 compliant. HARTING 09185506924, Amphenol ICC 71918-050LF, N3433-6002RB, and N3433-6003RB are RoHS compliant.

Q: Does packaging format affect electrical performance?

A: Packaging (Bulk, Tube, Tray) is a logistics parameter and does not affect electrical or mechanical performance. Selection depends on assembly process requirements and inventory management.
