CTX25-2P Equivalent & Substitute Parts

Part Overview

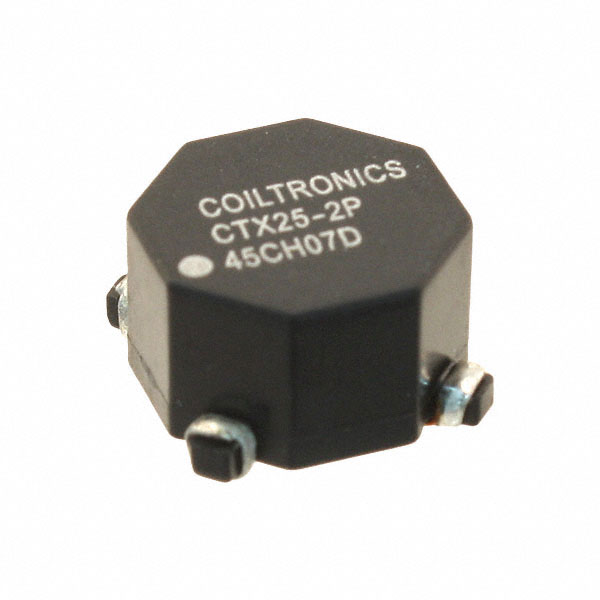

The CTX25-2P is an unshielded 2-coil inductor array manufactured by Eaton - Electronics Division, part of the Econo-Pac™ series. This surface-mount component provides dual inductance configurations: 99.14 µH in series connection and 24.79 µH in parallel connection, with a maximum DC resistance of 109 mOhm in parallel configuration.

The CTX25-2P is classified as obsolete. Locating equivalent or substitute components is necessary to support ongoing maintenance, repair, and production requirements for legacy systems utilizing this inductor array.

Substiute Parts

CTX25-2P

Eaton - Electronics DivisionIn Stock: 850CTX25-2P Datasheet

Current PartRFQ

CTX25-2P-R

Eaton - Electronics DivisionIn Stock: 2156CTX25-2P-R Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the CTX25-2P is determined by strict equivalence across the following critical parameters:

Electrical Parameters:

• Inductance values in both series (99.14 µH) and parallel (24.79 µH) configurations
• Current ratings: 1.4 A parallel, 700 mA series
• DC resistance specifications: 109 mOhm max parallel, 436 mOhm max series
• Tolerance: ±20%

Physical Parameters:

• Number of coils: 2
• Mounting type: Surface Mount
• Physical dimensions: 0.450" L x 0.450" W x 0.235" H
• Shielding: Unshielded

Environmental Parameters:

• Operating temperature range: -40°C to 85°C
• Moisture sensitivity level: 1

The CTX25-2P-R is a direct substitute that maintains identical electrical and mechanical specifications while differing only in packaging format (Tape & Reel versus standard packaging) and product status (Active versus Obsolete).

Parameter Comparison

Engineering Selection Recommendations

The CTX25-2P-R is a direct functional equivalent to the CTX25-2P. Both components are manufactured by Eaton - Electronics Division and maintain identical electrical specifications, mechanical dimensions, and environmental operating parameters.

Selection Basis:

The CTX25-2P-R is the preferred substitute because:

1. Product Status: The CTX25-2P-R is classified as Active, ensuring ongoing availability and manufacturing support, whereas the CTX25-2P is Obsolete.

2. Compliance Certifications: The CTX25-2P-R carries ROHS3 compliance and REACH Unaffected status, meeting current regulatory requirements for electronic components in regulated markets.

3. Packaging Availability: The CTX25-2P-R is supplied in Tape & Reel (TR) format, which is standard for automated assembly processes and high-volume production environments.

4. Electrical Equivalence: All electrical parameters—inductance values, current ratings, and DC resistance specifications—are identical between both parts.

5. Physical Compatibility: Mechanical dimensions, mounting type, and form factor are identical, enabling direct board-level substitution without design modification.

For applications requiring the CTX25-2P, the CTX25-2P-R provides complete functional and physical compatibility with the added benefit of active product status and modern compliance certifications.

Frequently Asked Questions (FAQ)

Q: Can the CTX25-2P-R be used as a direct replacement for the CTX25-2P in existing designs?

A: Yes. The CTX25-2P-R is electrically and mechanically identical to the CTX25-2P. All inductance values, current ratings, DC resistance specifications, physical dimensions, and operating temperature ranges match exactly. The component can be substituted without circuit design modification or board layout changes.

Q: What is the difference between the CTX25-2P and CTX25-2P-R?

A: The primary differences are packaging format and product status. The CTX25-2P-R is supplied in Tape & Reel (TR) format and is classified as Active, while the CTX25-2P uses standard packaging and is Obsolete. The CTX25-2P-R also includes ROHS3 compliance and REACH Unaffected certifications. Electrical and mechanical specifications are identical.

Q: Is the CTX25-2P-R suitable for automated assembly processes?

A: Yes. The CTX25-2P-R is supplied in Tape & Reel (TR) packaging, which is the standard format for automated pick-and-place assembly equipment used in high-volume manufacturing.

Q: What are the inductance configurations available in the CTX25-2P-R?

A: The CTX25-2P-R provides two inductance configurations: 99.14 µH when coils are connected in series, and 24.79 µH when coils are connected in parallel. Both configurations operate within the specified current and temperature ratings.

Q: What is the current handling capacity of the CTX25-2P-R?

A: The CTX25-2P-R supports 1.4 A in parallel configuration and 700 mA in series configuration. Maximum DC resistance is 109 mOhm in parallel and 436 mOhm in series.

Q: Does the CTX25-2P-R require special handling or storage conditions?

A: The CTX25-2P-R has a Moisture Sensitivity Level (MSL) of 1, which indicates unlimited shelf life without moisture control requirements. Standard electronic component storage practices apply.

Q: Are there any compliance or regulatory considerations when substituting the CTX25-2P-R?

A: The CTX25-2P-R is ROHS3 compliant and REACH Unaffected, meeting current regulatory requirements in the European Union and other regulated markets. These certifications make the CTX25-2P-R suitable for applications subject to environmental and hazardous substance regulations.
