CTAPF4-12TP-C Equivalent & Substitute Parts

Part Overview

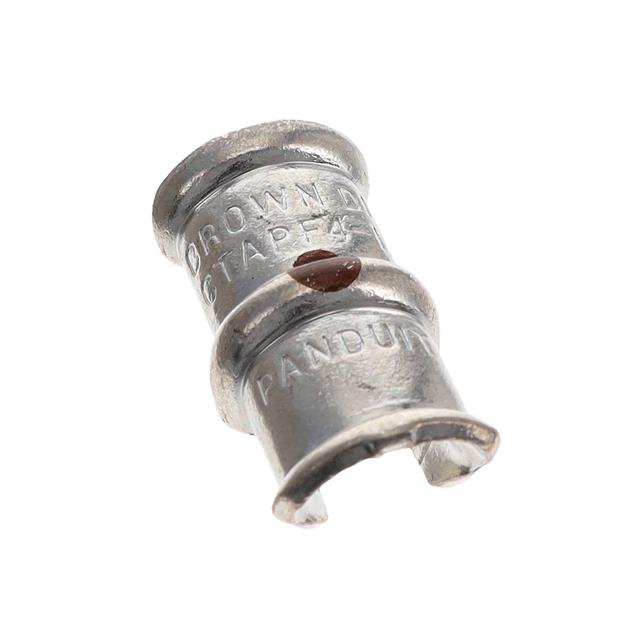

The CTAPF4-12TP-C is a crimpband open band connector terminal manufactured by Panduit Corp, designed for splice applications with wire gauges ranging from 4-12 AWG. This component features non-insulated construction and brown coloring, suitable for bulk packaging applications. The part is classified as obsolete, necessitating identification of active equivalent alternatives to maintain supply chain continuity and ensure ongoing availability for new designs and maintenance applications.

Substiute Parts

CTAPF4-12TP-C

Panduit CorpIn Stock: 784CTAPF4-12TP-C Datasheet

Current PartRFQ

CTAPF4-12-C

Panduit CorpIn Stock: 909CTAPF4-12-C Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the CTAPF4-12TP-C is determined by the following critical parameters:

• Terminal Type: Must be Crimpband, Open Band construction
• Termination Method: Must be Crimp
• Insulation: Must be Non-Insulated
• Color: Must be Brown
• Manufacturer: Panduit Corp
• RoHS Compliance: Must maintain ROHS3 Compliant status

The substitute part CTAPF4-12-C meets these core substitution criteria. The primary difference is the wire gauge specification: the substitute supports 6-12 AWG, whereas the original supports 4-12 AWG. This represents a narrower wire gauge range in the substitute part.

Parameter Comparison

Engineering Selection Recommendations

The CTAPF4-12-C is an active equivalent for the obsolete CTAPF4-12TP-C. Both parts maintain identical RoHS3 compliance and ECCN classification, ensuring regulatory continuity. The substitute part is currently in active production status with confirmed inventory availability (879 pieces), providing supply chain reliability for ongoing applications.

The wire gauge specification difference (6-12 AWG versus 4-12 AWG) must be evaluated against application requirements. Applications utilizing wire gauges 4-5 AWG cannot use the substitute part. Applications within the 6-12 AWG range are fully compatible with the CTAPF4-12-C.

Frequently Asked Questions (FAQ)

Q: Can CTAPF4-12-C be used as a direct replacement for CTAPF4-12TP-C?

A: Direct replacement is possible only for applications using wire gauges 6-12 AWG. The substitute part does not support 4-5 AWG wire gauges. Verify application wire gauge requirements before substitution.

Q: What are the key compatibility criteria for these parts?

A: Compatibility is determined by terminal type (Crimpband, Open Band), termination method (Crimp), insulation type (Non-Insulated), color (Brown), and wire gauge range. Both parts share identical construction and compliance characteristics.

Q: Why is the original part obsolete?

A: The CTAPF4-12TP-C is classified as obsolete by the manufacturer. The CTAPF4-12-C represents the active product line continuation from Panduit Corp for this terminal category.

Q: Are there packaging differences between these parts?

A: Both parts are supplied in bulk packaging. No packaging format differences exist between the original and substitute.

Q: Do both parts meet the same regulatory requirements?

A: Yes. Both CTAPF4-12TP-C and CTAPF4-12-C are ROHS3 compliant and classified under ECCN EAR99, with identical HTSUS coding (7419.80.5050).
