CS-SM-MHA SMA Connector Plug Equivalent & Substitute Parts

Part Overview

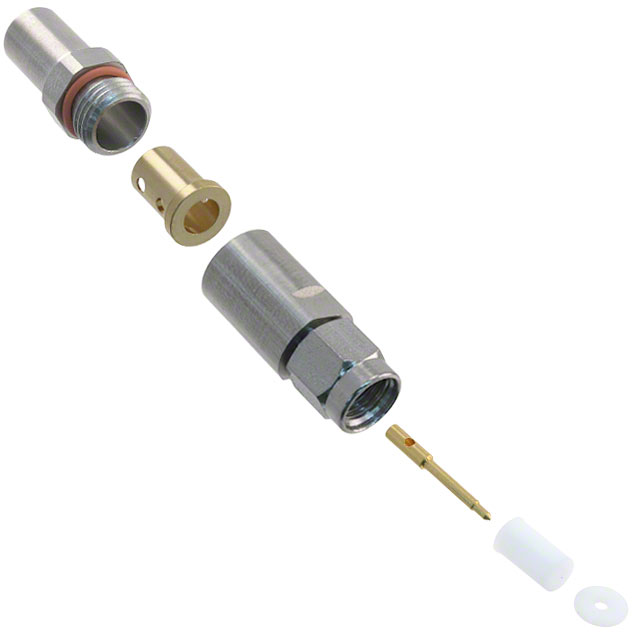

The CS-SM-MHA is an SMA connector plug manufactured by Crystek Corporation, designed for coaxial RF applications requiring solder termination. This component features a male pin configuration with free-hanging (in-line) mounting and stainless steel construction with gold-plated beryllium copper contacts. The part is currently obsolete, making identification of functionally equivalent alternatives essential for system maintenance, repair, and legacy equipment support.

Substiute Parts

CS-SM-MHA

Crystek CorporationIn Stock: 908CS-SM-MHA Datasheet

Current PartRFQ

142-0202-016

Cinch Connectivity SolutionsIn Stock: 880142-0202-016 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The substitute part 142-0202-016 (Cinch Connectivity Solutions) qualifies as a functional equivalent based on the following critical parameters:

Matching Parameters:

• Connector Style: SMA (identical RF interface standard)
• Connector Type: Plug, Male Pin (identical mating configuration)
• Contact Termination: Solder (identical assembly method)
• Shield Termination: Clamp (identical shielding approach)
• Mounting Type: Free Hanging (In-Line) (identical mechanical installation)
• Fastening Type: Threaded (identical coupling mechanism)
• Number of Ports: 1 (identical port count)
• Center Contact Plating: Gold (identical contact surface)
• Moisture Sensitivity Level: 1 (Unlimited) (identical environmental rating)

The 142-0202-016 maintains full mechanical and electrical interface compatibility with the CS-SM-MHA, enabling direct substitution in legacy applications.

Parameter Comparison

Engineering Selection Recommendations

The 142-0202-016 is the recommended substitute for the obsolete CS-SM-MHA based on the following factors:

Product Status: The 142-0202-016 maintains active production status with current inventory availability (789 pcs), ensuring long-term supply continuity for legacy system support and repair operations.

Compliance & Certifications: The 142-0202-016 is RoHS Compliant, meeting modern environmental and regulatory requirements. Both parts carry identical ECCN (EAR99) and HTSUS (8536.69.4010) classifications, confirming equivalent export and tariff treatment.

Interface Compatibility: Full mechanical and electrical interface alignment across all critical parameters—SMA connector style, male plug configuration, solder termination, clamp shielding, threaded fastening, and free-hanging mounting—ensures direct substitution without circuit redesign or mechanical rework.

Environmental & Performance Specifications: The 142-0202-016 provides documented operating temperature range (-65°C ~ 165°C), voltage rating (170 V), mating cycle rating (500), and maximum frequency (12.4 GHz), offering measurable performance data absent from the original part specification.

Frequently Asked Questions (FAQ)

Q: Can the 142-0202-016 be used as a direct replacement for the CS-SM-MHA in existing assemblies?

A: Yes. Both connectors share identical SMA connector style, male plug configuration, solder termination method, clamp shield termination, threaded fastening, and free-hanging mounting type. No mechanical or electrical modifications are required.

Q: What are the key differences between these two parts?

A: The primary differences are center contact material (beryllium copper vs. brass), body material (stainless steel vs. brass with nickel finish), and dielectric material composition. The 142-0202-016 provides documented performance specifications (operating temperature, voltage rating, mating cycles, frequency) not specified for the CS-SM-MHA.

Q: Is the 142-0202-016 suitable for high-frequency RF applications?

A: The 142-0202-016 is rated to 12.4 GHz maximum frequency, supporting standard RF and microwave applications within this bandwidth. Verify your specific frequency requirements against this specification.

Q: What is the packaging difference between these parts?

A: The CS-SM-MHA packaging is not specified. The 142-0202-016 is supplied in bulk packaging and includes six component pieces per connector (connector body, clamp cone, clamp nut, clamp stem, contact, and insulator).

Q: Are both parts environmentally compliant?

A: Both parts carry identical Moisture Sensitivity Level 1 (Unlimited) ratings. The 142-0202-016 is explicitly RoHS Compliant. The CS-SM-MHA compliance status is not specified.

Q: What is the cable compatibility for the 142-0202-016?

A: The 142-0202-016 is compatible with RG-178 and RG-196 cable groups, supporting standard 50-ohm coaxial cable assemblies.
