CSR2512C0R002F Equivalent & Substitute Parts

Part Overview

The CSR2512C0R002F is a 2 mOhms ±1% 3W chip resistor in 2512 (6432 Metric) package manufactured by Riedon. This current sense, non-inductive metal element resistor operates across -55°C to 170°C and is ROHS3 compliant. The part is currently obsolete, making equivalent and substitute parts necessary for ongoing design support and procurement.

Substiute Parts

CSR2512C0R002F

RiedonIn Stock: 1244CSR2512C0R002F Datasheet

Current PartRFQ

CSRL3-0R002F1

RiedonIn Stock: 1051CSRL3-0R002F1 Datasheet

DirectRFQ

CSRL3-0R002F8

RiedonIn Stock: 21069CSRL3-0R002F8 Datasheet

DirectRFQ

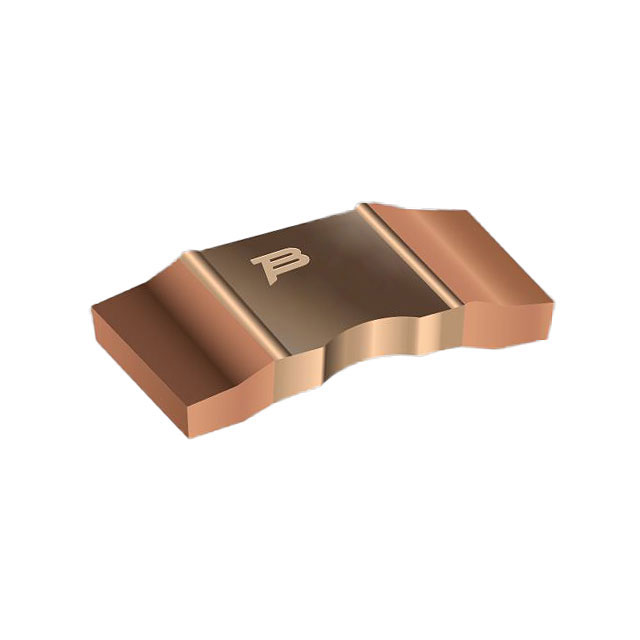

CSS2H-2512K-2L00F

Bourns Inc.In Stock: 21093CSS2H-2512K-2L00F Datasheet

UpgradeRFQ

CSS2H-2512K-2L00FE

Bourns Inc.In Stock: 1691CSS2H-2512K-2L00FE Datasheet

UpgradeRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the CSR2512C0R002F is determined by the following critical parameters: resistance value (2 mOhms), tolerance (±1%), package type (2512), composition (metal element), and current sense application. The substitute parts are grouped into two categories:

Direct Equivalents (Same Electrical Specifications): Parts maintaining identical resistance, tolerance, power rating, and operating temperature range. These parts differ only in manufacturer, series designation, or packaging format (Cut Tape vs. Tape & Reel).

Upgrade Substitutes (Enhanced Power Rating): Parts with identical electrical characteristics but higher power dissipation capability (5W vs. 3W). These parts include automotive AEC-Q200 qualification, providing enhanced reliability for demanding applications while maintaining full backward compatibility in 2512 package footprint.

Parameter Comparison

Engineering Selection Recommendations

For Direct Replacement (Same Specifications): Select CSRL3-0R002F1 or CSRL3-0R002F8 when the original 3W power rating is sufficient and active product availability is required. Both parts maintain identical electrical performance and thermal characteristics. CSRL3-0R002F8 in Tape & Reel format provides higher inventory availability (20,975 pcs) compared to CSRL3-0R002F1.

For Enhanced Reliability Applications: Select CSS2H-2512K-2L00F or CSS2H-2512K-2L00FE when automotive-grade qualification and higher power dissipation margin are beneficial. The 5W rating provides additional thermal headroom while maintaining identical resistance, tolerance, and operating temperature range. CSS2H-2512K-2L00FE in Tape & Reel format is available for automated assembly processes.

All substitute parts maintain ROHS3 compliance, MSL Level 1 rating, and identical package footprint compatibility with the original CSR2512C0R002F.

Frequently Asked Questions (FAQ)

Q: Can CSRL3-0R002F1 and CSRL3-0R002F8 be used interchangeably with CSR2512C0R002F?

A: Yes. Both parts are direct electrical equivalents with identical resistance (2 mOhms), tolerance (±1%), power rating (3W), and operating temperature range (-55°C to 170°C). The difference is packaging format: CSRL3-0R002F1 uses unspecified packaging while CSRL3-0R002F8 uses Tape & Reel format. Both are pin-compatible and footprint-compatible in 2512 package applications.

Q: What is the difference between the 3W Riedon parts and the 5W Bourns parts?

A: The CSS2H-2512K-2L00F and CSS2H-2512K-2L00FE maintain identical electrical specifications (2 mOhms, ±1%, -55°C to 170°C) but provide 5W power rating versus 3W. The Bourns parts include automotive AEC-Q200 qualification. These are upgrade substitutes offering enhanced thermal performance and automotive-grade reliability while maintaining full backward compatibility.

Q: Are there physical dimension differences between substitute parts?

A: Minor dimensional variations exist. The main part CSR2512C0R002F measures 0.250" L x 0.118" W (6.35mm x 3.00mm) with 0.022" max height. CSRL3 equivalents measure 0.250" L x 0.125" W (6.35mm x 3.18mm) with 0.022" max height. CSS2H upgrades measure 0.250" L x 0.120" W (6.35mm x 3.05mm) with 0.052" max height. All parts fit the 2512 (6432 Metric) package specification and are PCB-compatible.

Q: Which substitute part should be selected for new designs?

A: For new designs, select from active product status parts: CSRL3-0R002F1, CSRL3-0R002F8, CSS2H-2512K-2L00F, or CSS2H-2512K-2L00FE. All maintain long-term availability. For automotive applications or designs requiring enhanced thermal margin, the CSS2H series with AEC-Q200 qualification is preferred.

Q: Are all substitute parts ROHS3 compliant?

A: Yes. All listed substitute parts maintain ROHS3 compliance and MSL Level 1 (Unlimited) moisture sensitivity rating, matching the original CSR2512C0R002F specifications.
