CS-NM-MSD N Type Connector Plug Equivalent & Substitute Parts

Part Overview

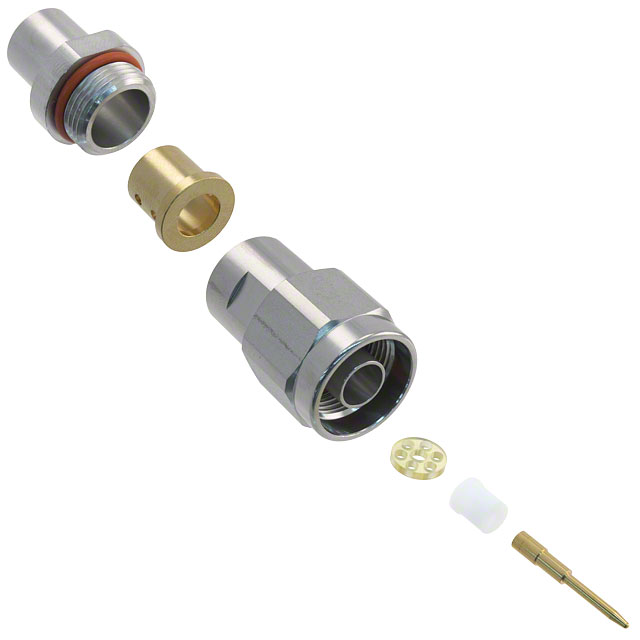

The CS-NM-MSD is an N Type Connector Plug manufactured by Crystek Corporation, designed for free hanging (in-line) solder termination applications. This connector features a male pin configuration with threaded fastening and is constructed from stainless steel with gold-plated beryllium copper contacts. The product is currently classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing system maintenance and component procurement.

Substiute Parts

CS-NM-MSD

Crystek CorporationIn Stock: 1015CS-NM-MSD Datasheet

Current PartRFQ

110A108B

Winchester InterconnectIn Stock: 970110A108B Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the CS-NM-MSD is determined by strict alignment of the following core parameters:

Primary Substitution Criteria:

• Connector Style: N Type (mandatory match)
• Connector Type: Plug, Male Pin (mandatory match)
• Contact Termination: Solder (mandatory match)
• Shield Termination: Clamp (mandatory match)
• Mounting Type: Free Hanging (In-Line) (mandatory match)
• Fastening Type: Threaded (mandatory match)
• Number of Ports: 1 (mandatory match)

Secondary Compatibility Parameters:

• Moisture Sensitivity Level: MSL 1 (Unlimited)
• Export Classification: EAR99
• HTSUS Classification: 8536.69.4010

The Winchester Interconnect 110A108B meets all primary substitution criteria and maintains compatibility across secondary parameters, qualifying it as a functional equivalent for the obsolete CS-NM-MSD.

Parameter Comparison

Engineering Selection Recommendations

The Winchester Interconnect 110A108B (Base Product Number 110A108) is the qualified substitute for the obsolete CS-NM-MSD. Selection is based on the following engineering factors:

Functional Equivalence: Both connectors satisfy identical mechanical and electrical interface requirements as N Type Plug, Male Pin connectors with solder termination and threaded fastening.

Regulatory Compliance: The 110A108B maintains RoHS Compliance status, providing enhanced environmental compliance compared to the CS-NM-MSD specification. Both parts share identical export classification (EAR99) and tariff codes (HTSUS 8536.69.4010).

Product Availability: The 110A108B is classified as Active product status with 878 units in stock, ensuring long-term procurement viability compared to the obsolete CS-NM-MSD.

Operational Specifications: The 110A108B provides defined performance parameters including maximum frequency rating of 18 GHz, operating temperature range of -55°C to 200°C, voltage rating of 1000 V, and mating cycle rating of 500 cycles, supporting reliable deployment in RF applications.

Frequently Asked Questions (FAQ)

Q: Can the Winchester Interconnect 110A108B directly replace the Crystek CS-NM-MSD in existing assemblies?

A: Yes. Both connectors are N Type Plug, Male Pin connectors with solder contact termination, clamp shield termination, and threaded fastening. The mechanical and electrical interface specifications are identical, enabling direct substitution in free hanging (in-line) solder applications.

Q: What are the key differences between these two connectors?

A: The primary differences are manufacturer identity and product status. The CS-NM-MSD is obsolete, while the 110A108B is active. The 110A108B includes defined performance specifications (18 GHz maximum frequency, -55°C to 200°C operating temperature, 1000 V voltage rating, 500 mating cycles) and RoHS Compliance status. The CS-NM-MSD uses beryllium copper with gold plating, while the 110A108B uses brass with nickel plating and finish.

Q: Are there packaging or inclusion differences between these connectors?

A: Yes. The 110A108B is supplied with included components: 1 Connector, 1 Braid Clamp, 1 Clamp, 1 Contact, and 1 Washer per unit. The CS-NM-MSD packaging specification is not detailed in available documentation.

Q: What cable groups are compatible with each connector?

A: The CS-NM-MSD is specified for Semflex LA290 cable. The 110A108B is specified for RG-8 and RG-213 cables. Cable compatibility must be verified for specific application requirements.

Q: Is the 110A108B suitable for high-frequency RF applications?

A: The 110A108B supports frequencies up to 18 GHz, making it suitable for RF applications within this frequency range. Specific application frequency requirements must be confirmed against this maximum rating.

Q: What is the mating cycle rating for the 110A108B?

A: The 110A108B is rated for 500 mating cycles, defining the expected mechanical durability for connector engagement and disengagement operations.
