Equivalent & Substitute Parts for CS80ZU2GA222MYGKA

Part Overview

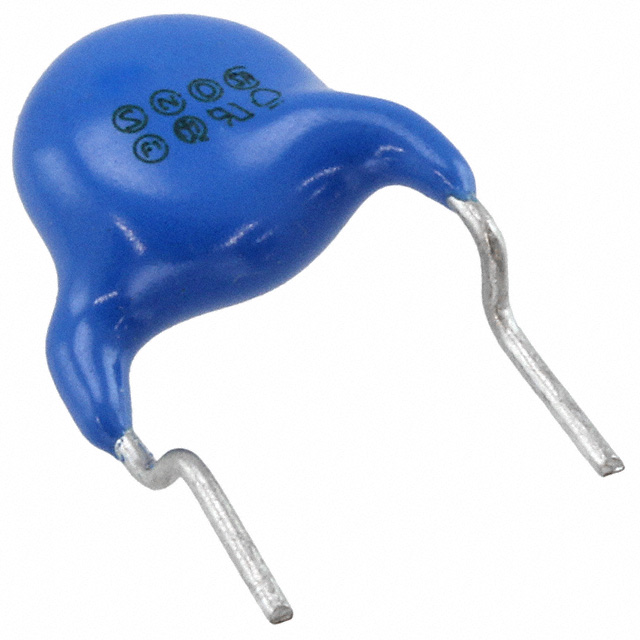

The CS80ZU2GA222MYGKA is a 2200 pF ceramic capacitor rated for 300VAC/440VAC operation with Z5U temperature coefficient, manufactured by TDK Corporation. This component is classified as Active status and is designed for high-voltage safety applications requiring X1, Y2 ratings. Substitute parts are identified when equivalent electrical performance and mechanical compatibility can be maintained within the specified parameter ranges for this product category.

Substiute Parts

CS80ZU2GA222MYGKA

TDK CorporationIn Stock: 29115CS80ZU2GA222MYGKA Datasheet

Current PartRFQ

CS45-E2GA222M-GKA

TDK CorporationIn Stock: 980CS45-E2GA222M-GKA Datasheet

MFR RecommendedRFQ

CS45-E2GA222M-NKA

TDK CorporationIn Stock: 5555CS45-E2GA222M-NKA Datasheet

MFR RecommendedRFQ

CS80ZU2GA222MANKA

TDK CorporationIn Stock: 3224CS80ZU2GA222MANKA Datasheet

MFR RecommendedRFQ

VY2222M35Y5US63V7

Vishay Beyschlag/Draloric/BC ComponentsIn Stock: 25309VY2222M35Y5US63V7 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the CS80ZU2GA222MYGKA is determined by the following criteria:

Critical Parameters (Must Match):

• Capacitance: 2200 pF
• Tolerance: ±20%
• Safety Ratings: X1, Y2
• Mounting Type: Through Hole
• Package Type: Radial, Disc
• Lead Spacing: 0.295" (7.50mm)
• RoHS Status: ROHS3 Compliant

Allowable Variations:

• Voltage Rating: Minimum 440VAC (equal to or exceeding the main part's 440VAC upper rating)
• Temperature Coefficient: Z5U or E (both acceptable for this application)
• Operating Temperature Range: -25°C minimum to 125°C maximum
• Manufacturer: TDK Corporation or equivalent qualified manufacturer

The substitute parts listed maintain these electrical and mechanical parameters while offering alternative temperature coefficient options or dimensional variations that remain compatible with standard through-hole PCB layouts.

Parameter Comparison

Engineering Selection Recommendations

All listed substitute parts maintain Active product status and ROHS3 compliance, ensuring continued availability and regulatory conformance.

TDK Corporation CS45-E2GA222M-GKA and CS45-E2GA222M-NKA: These parts are direct TDK alternatives with identical capacitance, tolerance, and safety ratings. The temperature coefficient differs (E instead of Z5U), but both coefficients are acceptable for this application. Both parts maintain the 440VAC voltage rating and standard through-hole package configuration. CS45-E2GA222M-NKA offers higher inventory availability (5504 pcs) compared to CS45-E2GA222M-GKA (935 pcs).

TDK Corporation CS80ZU2GA222MANKA: This part matches the main component's Z5U temperature coefficient and dual voltage rating (300VAC/440VAC). It includes AEC-Q200 automotive qualification in addition to standard X1, Y2 safety ratings. The dimensional footprint is slightly larger (0.374" diameter versus 0.315"), but lead spacing remains identical. Operating temperature range extends to -55°C, providing enhanced low-temperature performance. Inventory availability is 3130 pcs.

Vishay Beyschlag/Draloric/BC Components VY2222M35Y5US63V7: This part provides equivalent electrical performance with 440VAC rating and X1, Y2 safety compliance. The Y5U temperature coefficient is functionally equivalent to Z5U and E for this application. The dimensional footprint is 0.354" diameter with extended height (0.512"), requiring verification of PCB layout clearance. Inventory availability is highest at 25200 pcs.

Frequently Asked Questions (FAQ)

Q: Can CS45-E2GA222M-GKA or CS45-E2GA222M-NKA be used as direct replacements for CS80ZU2GA222MYGKA?

A: Yes. Both parts maintain identical capacitance (2200 pF), tolerance (±20%), safety ratings (X1, Y2), and mechanical compatibility (0.295" lead spacing, through-hole radial package). The temperature coefficient differs (E versus Z5U), but both are acceptable for this application. The 440VAC rating meets the main part's maximum voltage specification.

Q: What is the difference between Z5U and E temperature coefficients?

A: Both Z5U and E are temperature coefficient classifications for ceramic capacitors used in high-voltage safety applications. The specific capacitance variation across the operating temperature range differs between these classifications, but both are qualified for the stated -25°C to 125°C operating range and X1, Y2 safety ratings.

Q: Is CS80ZU2GA222MANKA suitable for automotive applications?

A: CS80ZU2GA222MANKA includes AEC-Q200 automotive qualification in addition to standard safety ratings. If your application requires automotive-grade components, this part is appropriate. The main part (CS80ZU2GA222MYGKA) does not carry AEC-Q200 qualification.

Q: Can VY2222M35Y5US63V7 be used in space-constrained PCB layouts?

A: VY2222M35Y5US63V7 has a larger dimensional footprint (0.354" diameter, 0.512" height) compared to the main part (0.315" diameter, 0.472" height). PCB layout clearance must be verified before substitution. Lead spacing remains compatible at 0.295".

Q: Which substitute part has the best inventory availability?

A: VY2222M35Y5US63V7 has the highest inventory at 25200 pcs. Among TDK alternatives, CS45-E2GA222M-NKA offers 5504 pcs, while CS80ZU2GA222MANKA provides 3130 pcs.

Q: Are all substitute parts RoHS3 compliant?

A: Yes. All listed substitute parts maintain ROHS3 compliance, matching the main part's regulatory status.
