CS-3212 Equivalent & Substitute Parts

Part Overview

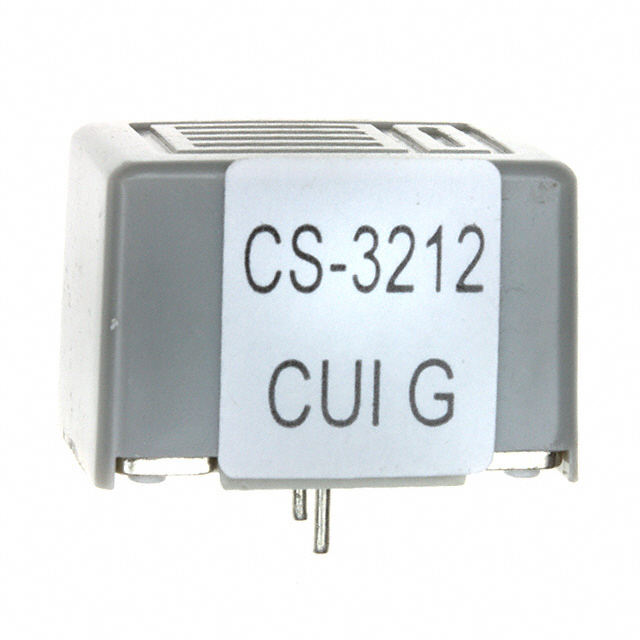

The CS-3212 is a magnetically driven buzzer indicator manufactured by CUI Devices, rated for 12V DC operation with an internal driver circuit. This component is classified as obsolete, making equivalent and substitute parts necessary for ongoing system support and new design implementations. The CS-3212 delivers 77dB sound pressure level at 12V over a 30cm distance with a 25mA supply current and is designed for through-hole mounting with PC pin termination.

Substiute Parts

CS-3212

CUI DevicesIn Stock: 735CS-3212 Datasheet

Current PartRFQ

CS-3612

CUI DevicesIn Stock: 2914CS-3612 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the CS-3212 is determined by the following critical parameters:

• Rated voltage and voltage range compatibility (12V nominal operation)
• Driver circuitry type (internally driven indicator)
• Input signal type (DC)
• Technology platform (magnetic buzzer)
• Operating mode (single tone)
• Compliance certifications (RoHS status)

The CS-3612 qualifies as a substitute based on matching voltage rating, driver circuitry, input type, technology, and operating mode. Differences in mounting type, termination style, current draw, and sound pressure level represent design trade-offs that must be evaluated against specific application requirements.

Parameter Comparison

Engineering Selection Recommendations

The CS-3612 is an active product with current manufacturing support, making it the primary substitute for the obsolete CS-3212. Both components meet RoHS compliance requirements, with the CS-3612 meeting the more stringent ROHS3 standard. The CS-3612 operates across a narrower voltage range (8V ~ 16V versus 8V ~ 18V) and requires higher supply current (35mA versus 25mA), but delivers increased sound output (82dB versus 77dB). The extended operating temperature range of the CS-3612 (-30°C ~ 70°C) provides broader environmental coverage compared to the CS-3212 (-20°C ~ 60°C). Selection between these parts depends on mounting architecture compatibility, power budget constraints, and acoustic output requirements for the target application.

Frequently Asked Questions (FAQ)

Q: Can the CS-3612 directly replace the CS-3212 in existing PCB designs?

A: Direct PCB replacement is not possible due to different mounting types and termination styles. The CS-3212 uses through-hole PC pins for vertical PCB mounting, while the CS-3612 uses panel mount flange with wire leads. PCB layout and connector modifications are required.

Q: What are the voltage compatibility considerations?

A: Both parts operate at 12V nominal rating. The CS-3212 accepts 8V ~ 18V input, while the CS-3612 accepts 8V ~ 16V. Applications operating above 16V require the CS-3212 or alternative parts rated for higher voltage ranges.

Q: How do the current requirements differ?

A: The CS-3212 draws 25mA at rated voltage, while the CS-3612 draws 35mA. Power supply and circuit design must accommodate the higher current demand of the CS-3612.

Q: What is the acoustic output difference?

A: The CS-3612 produces 82dB at 12V over 30cm, compared to 77dB for the CS-3212. This 5dB increase represents approximately double the perceived loudness and should be considered in applications with acoustic constraints.

Q: Are both parts RoHS compliant?

A: Yes. The CS-3212 is RoHS Compliant, and the CS-3612 meets the more current ROHS3 Compliant standard. Both are suitable for applications requiring RoHS certification.

Q: What temperature range considerations apply?

A: The CS-3212 operates from -20°C to 60°C, while the CS-3612 operates from -30°C to 70°C. Applications requiring operation below -20°C or above 60°C should use the CS-3612 or evaluate alternative parts.
