CP12820_EVA-W Equivalent & Substitute Parts

Part Overview

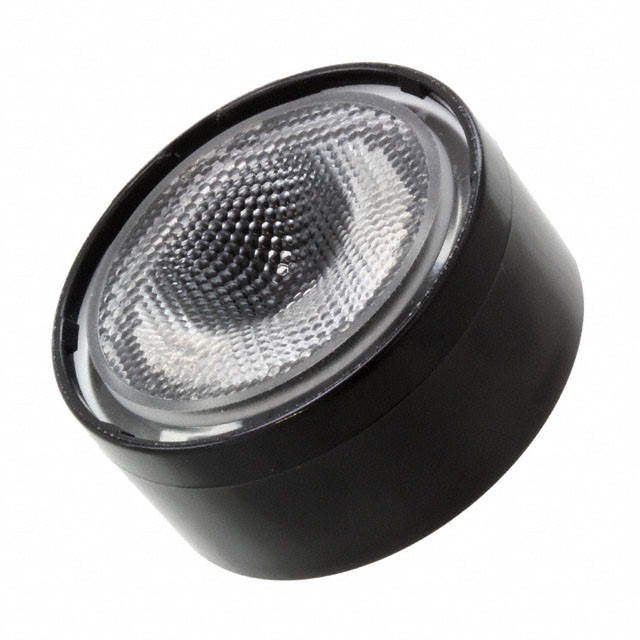

The CP12820_EVA-W is a lens with holder assembly manufactured by Ledil, designed for single LED applications with a 45° viewing angle and wide optical pattern. This component features a clear acrylic construction with a round flat-top lens geometry (37.7mm diameter) and supports dual mounting methods: adhesive and screw attachment.

The CP12820_EVA-W is classified as obsolete. Identifying equivalent substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production or maintenance requirements for systems utilizing this optical component.

Substiute Parts

CP12820_EVA-W

LedilIn Stock: 769CP12820_EVA-W Datasheet

Current PartRFQ

CA12804_EVA-W

LedilIn Stock: 928CA12804_EVA-W Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the CP12820_EVA-W are identified based on strict alignment of the following critical parameters:

Mechanical Compatibility:

• Identical lens diameter (37.7mm)
• Identical lens style (Round with Flat Top)
• Compatible mounting methods (Adhesive and/or Screw)

Optical Compatibility:

• Matching lens transparency (Diffused)
• Matching optical pattern (Wide)
• Viewing angle within the specified range (45° or compatible angles)

Material & Environmental Compliance:

• Identical material composition (Acrylic)
• Matching RoHS compliance status (ROHS3 Compliant)
• Equivalent MSL rating (1 - Unlimited)

Functional Specifications:

• Single LED application (1 LED)
• Clear color specification
• Ledil manufacturer origin

The CA12804_EVA-W qualifies as a substitute based on full alignment across all mechanical, optical, and compliance parameters, with the addition of extended viewing angle options (45°, 48°).

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: CA12804_EVA-W

The CA12804_EVA-W is the qualified substitute for the obsolete CP12820_EVA-W. This substitution is supported by:

Compliance Alignment:

• Both components maintain ROHS3 compliance
• Both components carry REACH Unaffected status
• Identical MSL rating (1 - Unlimited) ensures equivalent moisture handling

Product Status Advantage:

• CA12804_EVA-W maintains Active product status, ensuring continued availability and supply chain support
• CP12820_EVA-W is classified as Obsolete, making CA12804_EVA-W the appropriate forward-compatible selection

Mechanical & Optical Equivalence:

• Identical lens geometry, size, and optical characteristics
• Full compatibility with existing mechanical interfaces
• Mounting method compatibility with screw attachment; adhesive mounting transitions from standard adhesive to adhesive tape format

Inventory Availability:

• CA12804_EVA-W: 879 Pcs in stock (Active status)
• CP12820_EVA-W: 727 Pcs in stock (Obsolete status)

For new designs or production continuity, CA12804_EVA-W is the appropriate selection. For existing systems currently using CP12820_EVA-W, CA12804_EVA-W provides direct functional replacement with enhanced supply chain stability.

Frequently Asked Questions (FAQ)

Q: Can CA12804_EVA-W directly replace CP12820_EVA-W in existing assemblies?

A: Yes. Both components share identical lens diameter (37.7mm), lens style (Round with Flat Top), optical pattern (Wide), transparency (Diffused), and material composition (Acrylic). The primary difference is the mounting adhesive format: CP12820_EVA-W uses standard adhesive, while CA12804_EVA-W uses adhesive tape. Both support screw mounting. Mechanical fit and optical performance are equivalent.

Q: What is the difference in viewing angle between these parts?

A: CP12820_EVA-W specifies a 45° viewing angle. CA12804_EVA-W offers dual viewing angle options: 45° and 48°. For applications requiring exactly 45°, CA12804_EVA-W with 45° specification is the appropriate selection. The 48° option provides extended angular coverage for applications requiring broader light distribution.

Q: Why is CP12820_EVA-W classified as obsolete?

A: CP12820_EVA-W is marked as Obsolete, indicating it is no longer in active production. CA12804_EVA-W maintains Active status, ensuring ongoing manufacturing support, supply availability, and compliance updates. For production continuity, CA12804_EVA-W is the recommended selection.

Q: Are there compliance differences between these parts?

A: No. Both CP12820_EVA-W and CA12804_EVA-W are ROHS3 Compliant, REACH Unaffected, and carry identical MSL ratings (1 - Unlimited). Compliance certifications are equivalent.

Q: What is the packaging difference?

A: CP12820_EVA-W packaging is listed as "-" (unspecified). CA12804_EVA-W is packaged in Trays. For procurement and handling, verify tray packaging specifications with your supplier.

Q: Can I use CA12804_EVA-W in applications originally designed for CP12820_EVA-W?

A: Yes, provided the mounting method transition from standard adhesive to adhesive tape is compatible with your assembly process. Optical and mechanical specifications are fully equivalent. Screw mounting remains unchanged.
