RP-MCX Connector Plug CONREVMCX012 Equivalent & Substitute Parts

Part Overview

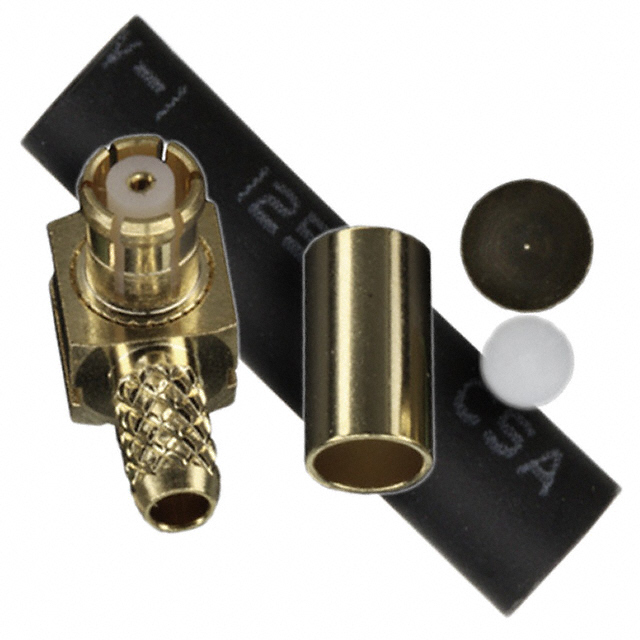

The CONREVMCX012 is an RP-MCX Connector Plug manufactured by TE Connectivity Linx, designed for 50-ohm coaxial RF applications. This component features a female socket configuration with right-angle solder termination and free-hanging (in-line) mounting. The product is currently obsolete, making identification of suitable substitute components essential for ongoing system maintenance, repair, and new design implementations where RP-MCX connectivity is required.

Substiute Parts

CONREVMCX012

TE Connectivity LinxIn Stock: 800CONREVMCX012 Datasheet

Current PartRFQ

CONREVMCX001-SMD

TE Connectivity LinxIn Stock: 818CONREVMCX001-SMD Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the CONREVMCX012 is determined by the following critical parameters:

• Connector Style: Must be RP-MCX to ensure mechanical and electrical compatibility
• Impedance: Must be 50 Ohms for signal integrity in RF applications
• Frequency Range: Must support up to 6 GHz operation
• Operating Temperature: Must accommodate -65°C to 165°C range
• Mating Cycles: Must support minimum 500 cycles
• Dielectric Material: PTFE specification ensures consistent RF performance
• Base Product Number: CONREVMCX designation confirms family compatibility

The CONREVMCX001-SMD qualifies as a substitute based on matching these core electrical and mechanical parameters, despite differences in connector type orientation and mounting methodology.

Parameter Comparison

Engineering Selection Recommendations

The CONREVMCX001-SMD serves as a functional substitute for the obsolete CONREVMCX012 based on electrical and mechanical parameter alignment. Both components share identical impedance, frequency capability, temperature range, and mating cycle specifications. The substitute part maintains REACH Unaffected status and carries EAR99 ECCN classification consistent with the original component.

The CONREVMCX001-SMD is currently in active production status with confirmed inventory availability, providing supply continuity for applications previously utilizing the CONREVMCX012. The substitute exhibits superior insertion loss performance (0.1 dB versus 0.2 dB), representing an improvement in RF signal transmission efficiency.

Primary design consideration: The CONREVMCX001-SMD employs surface mount packaging and straight orientation, whereas the CONREVMCX012 features free-hanging (in-line) right-angle mounting. Circuit board layout and connector positioning requirements must be evaluated to determine suitability for specific applications.

Frequently Asked Questions (FAQ)

Q: Can CONREVMCX001-SMD directly replace CONREVMCX012 in existing assemblies?

A: Both components meet identical electrical specifications (50 Ohms, 6 GHz, -65°C to 165°C). However, the mounting configuration differs: CONREVMCX012 is right-angle free-hanging, while CONREVMCX001-SMD is surface mount straight. Physical board layout compatibility must be verified before substitution.

Q: What are the key electrical parameters that define substitution eligibility?

A: Connector style (RP-MCX), impedance (50 Ohms), maximum frequency (6 GHz), operating temperature range (-65°C to 165°C), mating cycles (500), and dielectric material (PTFE) are the primary criteria. Both parts satisfy these requirements.

Q: Why does CONREVMCX001-SMD show lower insertion loss?

A: The substitute part demonstrates 0.1 dB insertion loss compared to 0.2 dB for the original. This represents improved RF signal transmission efficiency and is not a limitation for substitution purposes.

Q: Are there compliance or certification differences between these parts?

A: Both components carry identical REACH Unaffected status and EAR99 ECCN classification. The substitute part is RoHS Compliant, while the original part's RoHS status was not specified. Both maintain Moisture Sensitivity Level 1 (Unlimited).

Q: What is the primary reason for seeking a substitute?

A: The CONREVMCX012 is obsolete. The CONREVMCX001-SMD is in active production, ensuring long-term supply availability and component sourcing reliability.
