CMP9010-2-R Equivalent & Substitute Parts

Part Overview

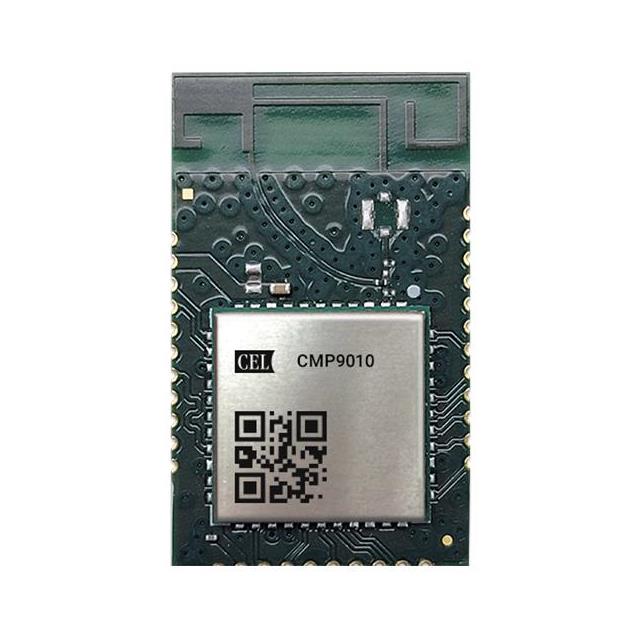

The CMP9010-2-R is an RF transceiver module manufactured by CEL, designed for Bluetooth and WiFi 802.11a/b/g/n applications with integrated Bluetooth v5.1 capability. The module features an integrated trace antenna and surface mount construction, utilizing the NXP IW416 integrated circuit. This component is classified as Active product status with 1109 units currently in stock. Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across RF family standards, protocol support, data rate specifications, power output, serial interfaces, antenna configuration, and operating temperature range.

Substiute Parts

CMP9010-2-R

CELIn Stock: 1168CMP9010-2-R Datasheet

Current PartRFQ

CMP9010-1-R

CELIn Stock: 1385CMP9010-1-R Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the CMP9010-2-R is determined by strict equivalence across the following critical parameters:

RF and Protocol Compatibility: Both the main part and substitute must support identical RF family standards (Bluetooth, WiFi) and protocol specifications (802.11a/b/g/n, Bluetooth v5.1).

Performance Specifications: Data rate (150Mbps), power output (20dBm), and serial interfaces (SDIO, UART) must remain unchanged to ensure functional compatibility within existing circuit designs.

Physical and Thermal Characteristics: Antenna type (Integrated, Trace), mounting type (Surface Mount), package classification (Module), and operating temperature range (-40°C ~ 85°C) must be identical.

Integrated Circuit: The utilized IC must be the NXP IW416 to maintain electrical and functional equivalence.

Environmental and Handling Requirements: Moisture sensitivity level (MSL 3, 168 Hours) and packaging format (Tape & Reel) must match.

The CMP9010-1-R meets all substitution criteria and is classified as a manufacturer-recommended equivalent part.

Parameter Comparison

Engineering Selection Recommendations

CMP9010-1-R is designated as the manufacturer-recommended substitute for CMP9010-2-R. Both components maintain identical electrical specifications, RF protocol support, and physical characteristics. Selection between these parts is based on inventory availability and supply chain requirements rather than technical performance differences.

The CMP9010-2-R currently maintains 1109 units in stock, while the CMP9010-1-R has 1277 units available. Both parts carry Active product status, indicating ongoing manufacturer support and availability.

Compliance certifications are equivalent across both parts: ECCN 5A992C and HTSUS 8517.62.0090 classifications apply to both the main part and substitute.

Frequently Asked Questions (FAQ)

Q: Can CMP9010-1-R be used as a direct replacement for CMP9010-2-R in existing designs?

A: Yes. The CMP9010-1-R is a direct functional equivalent. All electrical parameters, RF protocols, data rates, power output, serial interfaces, antenna configuration, and operating temperature specifications are identical. No circuit design modifications are required.

Q: Are there differences in the integrated circuit between these parts?

A: No. Both the CMP9010-2-R and CMP9010-1-R utilize the NXP IW416 integrated circuit. The IC specification is identical across both parts.

Q: Do these parts have the same moisture sensitivity requirements?

A: Yes. Both parts are classified as MSL 3 (168 Hours), indicating identical moisture sensitivity levels and handling requirements during storage and assembly.

Q: Are the antenna configurations the same?

A: Yes. Both parts feature integrated trace antennas. The antenna type and configuration are identical, ensuring equivalent RF performance in circuit implementations.

Q: What is the difference between CMP9010-2-R and CMP9010-1-R?

A: The parts are electrically and functionally equivalent. The primary difference is inventory availability: CMP9010-2-R has 1109 units in stock, while CMP9010-1-R has 1277 units in stock. Both are manufactured by CEL and carry Active product status.

Q: Are both parts available in Tape & Reel packaging?

A: Yes. Both the CMP9010-2-R and CMP9010-1-R are supplied in Tape & Reel (TR) packaging format, suitable for automated assembly processes.

Q: Do these parts support the same serial interfaces?

A: Yes. Both parts support SDIO and UART serial interfaces. Interface compatibility is identical between the two parts.
